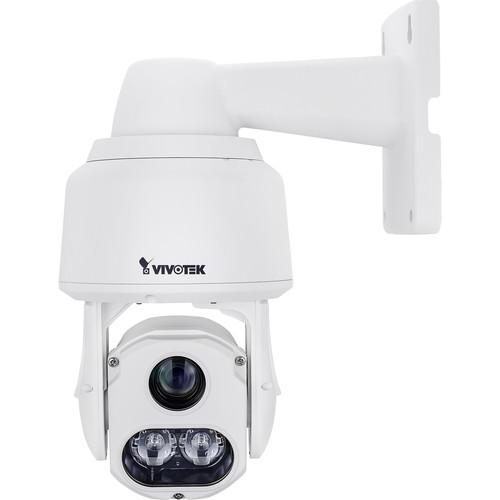

Product description The S Series SD9364-EHL 2MP Outdoor PTZ Dome Camera from Vivotek has a 1/3" progressive scan CMOS sensor that captures 1920 x 1080 resolution video at up to 60 fps. This camera is designed to enhance low light surveillance in large areas with its two IR illuminators and 30x optical zoom lens. The camera also features Vari-Angle IR (VAIR) technology, which provides smooth adjustment of the IR illuminators, allowing broad coverage and uniform IR intensity while avoiding hot-spots.
A mechanical IR cut filter and two IR illuminators allows this camera to capture video and images in low light scenes from up to 492' away. This camera uses H.264, H.265, and MJPEG compression codecs for high-quality recording and playback. When combined with Vivotek's Smart Stream II technology, users can obtain bandwidth savings of up to 80% compared to traditional H.264. The camera features an IP66-, IK10-, and NEMA 4X-rated housing to protect the camera from rain, dust, corrosion, and impact. The SD slot accepts SD cards up to 64GB (available separately) for on-board storage. - 1/3" progressive scan CMOS sensor capture 1920 x 1080 resolution video at up to 60 fps
- 4.3-129mm varifocal lens with 30x optical zoom
- Vari-Angle IR (VAIR) and mechanical IR cut filter allow the camera to capture images at night of objects up to 492' away
- H.264, H.265, and MJPEG compression codecs with Smart Stream II to optimize bandwidth efficiency
- 360° pan, 220° tilt, and zoom control
- Wide Dynamic Range (WDR) Pro for visibility in high-contrast environments
- IP66-rated for protection against water and dust, IK10-rated for vandal resistance, and NEMA 4X-rated for protection against corrosion and ice
- Defog to eliminate outside moisture on housing
- SD card slot for up to 64GB (available separately) on-board storage
In the Box Vivotek S Series SD9364-EHL 2MP Outdoor PTZ Dome Camera with Night Vision Software CD AM-220 Wall Mount Bracket Waterproof Connectors Terminal Blocks Ground Wire T25 Star Driver AO-003 I/O Cable Mounting Hardware Alignment Sticker Limited 3-Year Warranty Brochure PDF 798.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek S Series SD9364-EHL 2MP Outdoor PTZ Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek SD9364 Specs | | | CPU | Multimedia SoC (system-on-chip) | | Flash | 128 MB | | RAM | 512 MB | | | | Image Sensor | 2 MP 1/3" progressive-scan CMOS sensor | | Maximum Resolution | 1920 x 1080 | | Lens Type | 30x optical zoom, auto focus | | Focal Length | 4.3-129mm | | Aperture | f/1.6-4.7 | | Auto-Iris Lens Support | DC-iris | | Field of View | Horizontal: 64-2.3°
Vertical: 36-1.3°
Diagonal: 73-2.6° | | Shutter Time | 1/8 to 1/30,000 sec | | WDR Technology | WDR Pro | | Day/Night | Mechanical IR cut filter | | Number of IR LEDs and Range | Two IR LEDs for up to 492' (150 m) night vision | | Minimum Illumination | Color: 0.42 lux @ f/1.6
B&W: 0.001 lux @ f/1.6 | | Pan Speed | 0.1-300°/sec | | Pan Range | 360° endless | | Tilt Speed | 0.1-300°/sec | | Tilt Range | 220° (-110° to +110°) | | Preset | 256 preset locations
128 presets per tour | | Pan/Tilt/Zoom Functionalities | 128x digital zoom (4x on IE plug-in, 32x built-in)
Auto pan mode
Auto patrol mode | | On-board Storage | Slot Type: SD/SDHC/SDXC card slot Seamless recording | | | | Compression | H.264, H.265, and MJPEG | | Maximum Frame Rate | 60 fps @ 1920 x 1080 in all compression modes | | Maximum Streams | 4 simultaneous | | S/N Ratio | 53.64 dB | | Dynamic Range | 110 dB | | Video Streaming | Adjustable resolution, quality and bit rate
Smart Stream II | | Image Settings | Adjustable image size, quality and bit rate
Time stamp, text overlay, flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (Up to 24)
Scheduled profile settings, defog, 3DNR, EIS | | | | Audio Capability | Audio input/output (full duplex) | | Compression | G.711, G.726 | | Interface | External microphone input
External line output | | | | Users | Live viewing for up to 10 clients | | Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/ RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP,ARP, SSL, TLS, NTCIP | | Interface | 10Base-T, 100Base-TX, 1000Base-T RJ45 Ethernet | | ONVIF | Supported | | | | Video Motion Detection | Five-window video motion detection | | Auto Tracking | Auto-tracking on moving object | | | | Alarm Triggers | Manual trigger, periodical trigger, system boot, recording notification, audio detection, motion detection | | Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, and NAS server
File upload via HTTP, SMTP, FTP, and NAS server | | | | Operating System | Microsoft Windows 8, 7, Vista, XP, 2000 | | Web Browser | Mozilla Firefox 7-43 (streaming only), Internet Explorer 7, 8, 9, 10, 11 | | Other Players | VLC: 1.1.11 or above
QuickTime: 7 or above | | | | Connectors | RJ45
Network/PoE
Audio input
Audio output
48 VDC power input
4 x digital input
2 x digital output
RS-485 for PTZ control (PelcoD protocol, Baud rate 2400) | | LED Indicator | System power and status indicator | | Power Input | 95 W PoH/PoE
48 VDC | | Power Consumption | Heater On: 81.8 W maximum
Heater Off: 28.5 W maximum | | Casing | Weather-proof IP66, Vandal-proof IK10, and NEMA 4X-rated housing | | Operating Temperature | -58 to 131°F (-50 to 55°C) | | Humidity | 90% | | Dimensions (Ø x H) | 8 x 12.5" (204 x 285 mm) | | Weight | 13.3 lb (6 kg) | | | | Package Weight | 22.55 lb | | Box Dimensions (LxWxH) | 19.6 x 15.0 x 11.5" |
