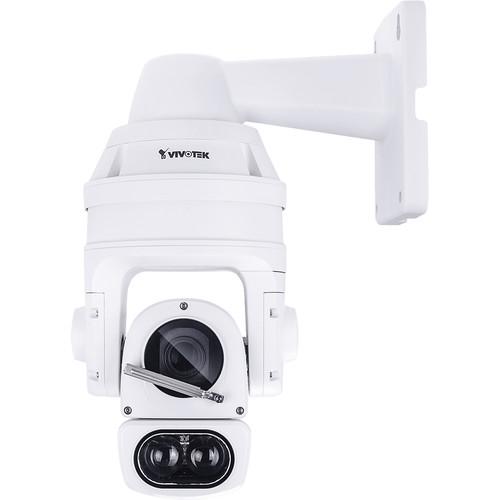

Product description The S Series SD9366-EH 1080p Outdoor Network Dome Camera from Vivotek is equipped with 820' range IR illuminators and a 30x optical zoom lens to capture 1920 x 1080 video. It is designed to enhance low-light surveillance in large coverage areas in even challenging situations. The camera also features Vivotek's Smart IR II technology and Vari-Angle IR. Vari-Angle IR provides smooth angle adjustment to the IR illuminators, allowing for a broad coverage FOV and highly uniform intensity while avoiding hotspots traditionally associated with IR illumination.
The camera utilizes H.265 compression and Smart Stream II that can create bandwidth savings of up to 80% compared to traditional H.264. It comes with an IP66- and NEMA 4X-rated housing to protect the camera against rain, dust, and corrosion. The camera has a wide operating temperature range of -40 to 131°F (-40 to 55°C), ensuring continuous operation under extreme weather conditions and hazardous environments. This makes the camera suited to monitor wide open spaces where high-level precision is required. - Real-time H.265, H.264, and MJPEG compression (triple codec)
- 820' IR with Smart IR II (Vari-Angle IR)
- WDR Pro for unparalleled visibility in high contrast environments
- -40 to 131°F (-40 to 55°C) wide temperature range for extreme weather conditions
- Smart Stream II to optimize bandwidth efficiency
- Easy cleaning with built-in wiper
- IP66 weather-resistant, IK10 vandal-resistant, and NEMA 4X-rated housing
In the Box Vivotek S Series SD9366-EH 1080p Outdoor Network Dome Camera with 4.3-129mm Lens & 250m Night Vision Wall Mount Bracket Input/Output Cable Water-Resistant Connectors Terminal Blocks Alignment Sticker Ground Wire T25 Stardriver Software CD Desiccant Bag Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek S Series SD9366-EH 1080p Outdoor Network Dome Camera with 4.3-129mm Lens & 250m Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek SD9366 Specs | | | CPU | Multimedia SoC (System-on-Chip) | | Flash | 128 MB | | RAM | 512 MB | | | | Image Sensor | 1/2.8" Progressive CMOS | | Maximum Resolution | 1920 x 1080 | | Lens Type | 30x optical zoom, auto focus | | Focal Length | 4.3-129mm (30x zoom) | | Aperture | f/1.6-4.7 | | Iris Type | DC-Iris | | Field of View | 2.3 to 64° (Horizontal)
1.3 to 36° (Vertical)
2.6 to 73° (Diagonal) | | Shutter Time | 1/10,000 to 1 seconds | | IR Illuminators | Built-in IR illuminators up to 820' (250 m) with Smart IR II, IR LED | | Minimum Illumination | 0.07 lux at f/1.6 (Color)
0.01 lux at f/1.6 (B&W)
0 lux with IR illumination on | | Pan Speed | 0.1 to 300° / sec | | Pan Range | 360° endless | | Tilt Speed | 0.1 to 300° / sec | | Tilt Range | 220° (-110 to 110°) | | Preset | 256 preset locations
128 presets per tour | | Pan/Tilt/Zoom Functionalities | 48x digital zoom (4x on IE plugin, 12x built-in), auto pan mode, auto patrol mode | | On-board Storage | Slot Type: microSD/SDHC/SDXC card slot
Seamless recording | | | | Compression | H265, H264, MJPEG | | Maximum Frame Rate | H.265 & H.264: 60 fps at 1920 x 1080
MJPEG: 30 fps at 1920 x 1080 | | Maximum Streams | 4 simultaneous streams | | S/N Ratio | 62 dB | | Dynamic Range | 120 dB | | Video Streaming | Adjustable resolution, quality and bit rate
Smart Stream II | | Image Settings | Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (Up to 24); Scheduled profile settings, defog, 3D-DNR, EIS, HLC | | | | Audio Capability | Two-way audio | | Compression | G.711, G.726 | | Interface | External microphone input
External line output | | | | Users | Live viewing for up to 10 clients | | Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS, NTCIP | | Interface | 10 Base-T/100 Base-TX Ethernet (RJ45) | | ONVIF | Supported | | | | Video Motion Detection | Five-window video motion detection | | Auto Tracking | Auto-tracking on moving object | | | | Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection | | Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server, and microSD card File upload via HTTP, SMTP, FTP, NAS server, and microSD card | | | | Operating System | Microsoft Windows 8/7 | | Web Browser | Mozilla Firefox 7 to 43 (streaming only)
Internet Explorer 10/11 | | Other Players | VLC: 1.1.11 or above
QuickTime: 7 or above | | | | Connectors | RJ45 cable connector for Network 10/100 Mb/s PoE connection
Audio input
Audio output
AC/DC 24 V power input
Digital input
Digital output
RS-485 for PTZ control (Pelco D protocol, baud rate 2400) | | LED Indicator | System power and status indicator | | Power Input | PoH/PoE (95 W)
AC/DC 24 V | | Power Consumption | PoH/PoE (95 W)
Maximum 70 W (Heater on)
Maximum 39 W (Heater off)
AC/DC 24 V
Maximum 96 W (Heater on)
Maximum 45 W (Heater off) | | Casing | IP66, IK10, NEMA 4X | | Operating temperature | Starting Temperature: -40 to 131°F /-40 to 55°C
Working Temperature: -40 to 131°F /-40 to 55°C | | Humidity | 90% | | Dimensions | 9.31 x 14.3" / 236.5 x 364.2 mm | | Weight | 15.6 lb / 7.1 kg with bracket
12.5 lb / 5.7 kg without bracket |
