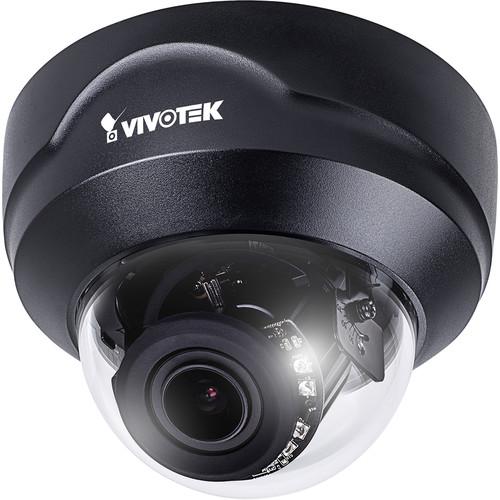

User Manual for Vivotek V Series FD8167A-B 2MP Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Vivotek V Series FD8167A-B 2MP Network
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek V Series FD8167A-B 2MP Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The black V Series FD8167A-B 2MP Network Dome Camera from Vivotek uses a 1/2.9" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. Eight IR LEDs provide up to 65' of low-light illumination. The 2.8-12mm varifocal lens delivers a 96.6 to 33.1° horizontal field of view. This camera is equipped with a built-in microphone that has a 16' audio pickup range. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 64GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera complies with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. The VIVOCloud app for iOS and Android enables remote viewing. - Suitable for library, bank, restaurant, and low-light applications
- Supreme Night Visibility (SNV) for low-light conditions
- Removable IR cut filter enables day and night functionality
- H.264 and MJPEG video compressions
- Four simultaneous streams
- Smart Stream II optimizes bandwidth efficiency
- ePTZ provides 48x digital zoom
- Image settings include time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3D-DNR, video rotation, and defog
- Five-window video motion detection
- Alarm triggers include motion detection, manual trigger, periodical trigger, system boot, recording notification, and camera tampering detection
- Event notification using HTTP, SMTP, FTP, NAS server, and microSD card
- File upload via HTTP, SMTP, FTP, NAS server, and microSD card
- Effective audio range up to 16'
- LED indicators for system power and status
- Live viewing for up to 10 clients
- Compatible with Microsoft Windows 7 and 8, Internet Explorer 10 and 11, Chrome 58.0.3029 or above, VLC 1.1.11 or above, QuickTime 7 or above, VAST VMS, and VIVOCloud app for iOS and Android
- CE, LVD, FCC Class B, VCCI, C-Tick, and UL certified
- Trend Micro IoT Security within standard warranty period
In the Box Vivotek V Series FD8167A-B 2MP Network Dome Camera (Black) Screw Pack Anchors Alignment Sticker Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek V Series FD8167A-B 2MP Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek FD8167A Specs | | | Sensor | 2 MP 1/2.9" CMOS | | Focal Length | 2.8 to 12mm | | Maximum Aperture | f/1.4 - f/2.4 | | Zoom | Optical: 4.3x
Digital: 48x | | Lens Field of View | Horizontal: 96.6 to 33.1°
Vertical: 53.4 to 18.9°
Diagonal: 101.9 to 35.3° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.05 Lux
B&W: 0.01 Lux | | Shutter Speed | 1/32,000 to 1/5 Seconds | | | | Streaming Resolution | 1920 x 1080 at 30 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 4 Streams | | | | Streaming | Single | | Audio Formats | G.711, G.726 | | Built-In Mic | Yes | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | ARP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles S & G | | Analytics | Five-Window Video Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Windows OS Support | Windows 7, 8 | | Mobile Operating Systems | iOS, Android | | | | Memory | 256 MB RAM / 128 MB Flash | | Recording Media | microSD (Up to 64 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45 | | IR Range | 65.62' / 20 m | | Video Management Software | VAST, VIVOCloud | | Supported Languages | English
French
German
Italian
Japanese
Portuguese
Simplified Chinese
Spanish
Traditional Chinese | | Internal Storage | None | | External Storage Options | NAS | | Power Source | PoE 802.3af (15 W) | | Power Consumption | 8.5 W | | Operating Temperature | 14 to 122°F / -10 to 50°C Starting Temperature: 32 to 122°F / 0 to 50°C | | Operating Humidity | 90% | | Dimensions |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
