Vivotek V Series FD8177-HT 4MP Network

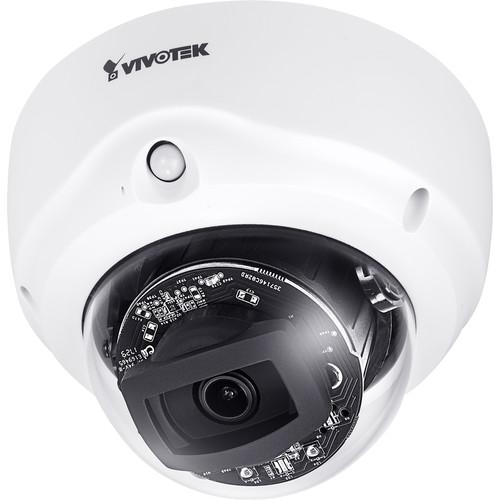

User Manual for Vivotek V Series FD8177-HT 4MP Network Dome Camera with Night Vision

• Product category: Wired IP Cameras Vivotek
• Brand: Vivotek
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Vivotek Wired IP Cameras

Product description

• Multimedia SoC CPU

• 2.8-12mm remote focus, precise iris lens

• Removable IR cut filter enables day and night functionality

• Supreme Night Visibility (SNV)

• Smart IR

• H.264 and MJPEG compression

• Smart Stream II optimizes bandwidth efficiency

• 3 simultaneous streams

• Seamless recording

• Camera pivots 353° horizontally & 80° vertically

• 180° rotation range

• ePTZ provides 48x digital zoom

• WDR Pro

• 110 dB dynamic range

• 68 dB S/N ratio

• Image settings include adjustable image size, quality and bit rate, time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, up to 24 privacy masks, scheduled profile settings, defog, 3D-DNR, HLC, AE speed, and video rotation

• Five-window video motion detection

• Alarm triggers include motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, advanced motion detection, PIR detection, and microSD card life expectancy

• Event notification using digital output, HTTP, SMTP, FTP, NAS server, and microSD card

• File upload via HTTP, SMTP, FTP, NAS server, and microSD card

• RJ45 connector

• 16' effective audio range

• Built-in microphone

• Audio input and output

• Digital input and output

• VAST video management software included

• Live viewing for up to 10 clients

• Compatible with Microsoft Windows 8 and 7, macOS 10.12, Internet Explorer 10 and 11, Chrome 58.0, VLC 1.1.11 or above, and QuickTime 7 or above

• System power and status LED indicators

• Safety certifications include CE, FCC Class B, VCCI, C-Tick, and UL

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Vivotek FD8177 Specs

Memory	512 MB RAM / 128 MB Flash
Recording Media	microSD (Up to 64 GB)
Pan/Tilt	None
I/O Connections	1 x RJ45 1 x Power
IR Range	98.43' / 30 m
Video Management Software	VAST
Supported Languages	English French German Italian Japanese Portuguese Simplified Chinese Spanish Traditional Chinese
Internal Storage	None
External Storage Options	NAS
Power Source	DC, PoE 802.3af (15 W)
Power Consumption	11 W
Operating Temperature	14 to 122°F / -10 to 50°C
Operating Humidity	90%
