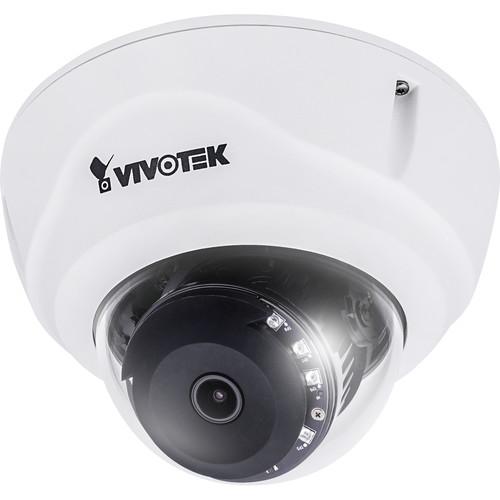

User Manual for Vivotek V Series FD8382-TV 5MP Vandal-Resistant Outdoor Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Vivotek V Series FD8382-TV 5MP Vandal-Resistant
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek V Series FD8382-TV 5MP Vandal-Resistant contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The V Series FD8382-TV 5MP Vandal-Resistant Outdoor Network Dome Camera from Vivotek captures clear video during the day and at night thanks to integrated IR LEDs around its 3-9mm varifocal lens. Its 1/3.2" progressive scan CMOS sensor allows the camera to record in 2560 x 1920 resolution at up to 15 fps for high-quality recording. The camera features P-iris control and remote focus with built-in stepping motors. The camera is housed in an IP66- and IK10-rated enclosure for protection against dust, water, and impact, making it suitable for outdoor use. - 5MP progressive scan CMOS sensor captures 2560 x 1920 resolution video at up to 15 fps
- 3-9mm varifocal lens has a 101-44° diagonal field of view to monitor large areas
- Built-in IR LEDs for video of objects up 98' away in extreme low light
- WDR for visibility in varying lighting conditions
- Two-way audio communication via external microphone input and external line output
- Video rotation for corridor view
In the Box Vivotek V Series FD8382-TV 5MP Vandal-Resistant Outdoor Network Dome Camera Alignment Sticker Mounting Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek V Series FD8382-TV 5MP Vandal-Resistant Outdoor Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek FD8382 Specs | Image Sensor | 1/3.2" progressive scan CMOS sensor | Maximum Resolution | 2560 x 1920 (5 MP) | Lens | 3-9mm varifocal | Aperture | f/1.2-2.3 | Auto-Iris Lens Support | P-iris | Field of View | Horizontal: 78-35° Vertical: 54-27° Diagonal: 101-44° | Shutter Time | 1/5 to 1/32,000 sec | Wide Dynamic Range | WDR Enhanced | Day/Night | Removable IR cut filter | Minimum Illumination | Color: 0.04 lux at f/1.2 B&W: 0.001 lux at f/1.2 | PTZ | 48x digital zoom (4x on IE plug-in, 12x built in) | Number of IR LEDs and Range | 8 x Smart IR LEDs, up to 98' (30 m) | Memory Card Support | microSD/SDHC/SDXC up to 64 GB | | Compression | H.264 and MJPEG | Maximum Frame Rate | 15 fps at 2560 x 1920 15 fps at 2048 x 1536 30 fps at 1920 x 1080 In both compression modes | Maximum Streams | 4 simultaneous streams | S/N Ratio | 67 dB | Dynamic Range | 70 dB | Video Streaming | Adjustable resolution, quality, and bit rate Smart stream | Image Settings | Adjustable image size, quality, and bit rate, time stamp, text overlay, flip/mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3D noise reduction, video rotation, defog | | Type | Two-way audio (full duplex) | Compression | G.711, G.726 | Interface | External microphone input External line output | | Users | Live viewing for up to 10 clients | Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS | Interface | RJ45 10Base-T/100Base-TX Ethernet | ONVIF | Supported | | CPU | Multimedia SoC (System-on-Chip) | Flash | 1 GB | RAM | 4 GB | Operating System | Microsoft Windows 8, 7, Vista, XP, 2000 | Web Browser | Mozilla Firefox 7 to 43 (streaming only) Internet Explorer 7 to 11 | Other Players | VLC: 1.1.11 or above QuickTime: 7 or above | | Video Motion Detection | Five-window video motion detection | | Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection | Event | Event notification using digital output, HTTP, SMTP, FTP, NAS server, and microSD card (available separately) File upload via HTTP, SMTP, FTP, NAS server, and microSD card (available separately) | | Focus Type | Remote Focus | Connectors | 1 x RJ45 cable connector for network/PoE connection 1 x Audio input 1 x Audio output 1 x 12 VDC power input 1 x Digital input 1 x Digital output | LED Indicator | System power and status indicator | Power Input | 12 VDC, IEEE 802.3af/at PoE Class 0 | Maximum Power Consumption | 9.5 W | Safety | CE, LVD, FCC Class A, VCCI, C-Tick, UL | Casing | IP66-rated housing IK10-rated metal housing | Operating Temperature | Starting Temperature: 14 to 122°F (-10 to 50°C) Working Temperature: -4 to 122°F (-20 to 50°C) | Dimensions | 6.1 x 4.1" (15.5 x 10.3 cm) | Weight | 2 lb (0.92 kg) | | Package Weight | 2.65 lb | Box Dimensions (LxWxH) | 7.95 x 7.85 x 5.6" |
