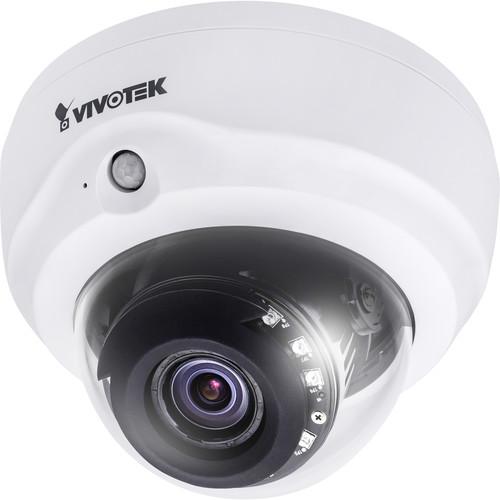

User Manual for Vivotek V-Series FD9171-HT 3MP Dome Network Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Vivotek V-Series FD9171-HT 3MP Dome Network
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek V-Series FD9171-HT 3MP Dome Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The V-Series FD9171-HT 3MP Dome Network Camera from Vivotek uses a 1/2.8" progressive-scan CMOS sensor to record 2048 x 1536 resolution at 30 fps, and it features a 3-9mm varifocal lens for a 41 to 86° horizontal field of view. Additionally, a line input and output provide two-way audio capability so that you can speak with and listen to those you are monitoring. Wide dynamic range offers high-quality images in ambient lighting, and color, brightness, sharpness, contrast, and exposure control settings allow you to configure your camera based on various environments. The camera also comes with built-in analytics, as well as motion detection, audio detection, and camera tampering alarms. When these events occur, the camera will send you an email notification or upload a file of the event via HTTP, NAS server, or SD card.
The camera compresses footage using H.265, H.264, and M-JPEG codecs, maximizing your bandwidth and storage. In addition, video can be streamed in up to three simultaneous streams, and resolution, quality, and bit rates are adjustable for further customizing your network. Up to 10 clients can simultaneously view live video, and there is a 48x digital zoom for enlarging the image during live view. A microSD slot supports on-site storage, enabling you to seamlessly record directly to a microSD card in case of a network failure. PoE technology allows you to transfer both data and power over the same Ethernet cable, minimizing the number of cables needed during installation. The camera can also run on a standard 12 VDC power supply for versatility. ONVIF compliance provides compatibility with a wide range of surveillance devices, allowing you to connect the camera to an NVR or NAS for additional storage. - Up to 2048 x 1536 video resolution at 30 fps for high-quality video
- 3-9mm varifocal lens, with an f/1.2 to 2.3 aperture, for a 41 to 86° horizontal FOV
- Removable IR cut filter automatically switches between color & B&W for true day/night
- IR LEDs provide up to 98' of night vision for use in complete darkness
- 48x digital zoom for focusing within your field of view
- microSD slot supports on-site storage for seamless recording
- Line input and output allows for 2-way audio capability
- H.265 / H.264 / M-JPEG formatting in 3 simultaneous streams
- Adjustable resolution, quality, and bit rate
- Wide dynamic range allows you to capture clear image in ambient lighting
- Image settings such as time stamp, text overlay, flip, and mirror
- Configurable brightness, contrast, saturation, and sharpness
- White balance, exposure control, gain, and backlight compensation
- Privacy masking for customizing your field of view
- Up to 10 clients can simultaneously view live video
- Motion detection digital input, tampering, and audio detection alarm triggers
- When an alarm is triggered, the camera will send you an email notification
- RJ45 Ethernet connection with PoE technology for a minimum of wires during setup
- ONVIF compliance enables compatibility with a wide range of surveillance devices
In the Box Vivotek V-Series FD9171-HT 3MP Dome Network Camera with Night Vision Alignment Sticker Mounting Hardware Limited 3-Year Warranty Brochure PDF 384.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek V-Series FD9171-HT 3MP Dome Network Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek FD9171 Specs | | | Image Sensor | 1/2.8" progressive-scan CMOS | | Maximum Resolution | 2048 x 1536 | | Lens | 3-9mm varifocal | | Aperture | f/1.2 to 2.3 | | Auto Iris | P-iris | | Field of View | 41 to 86° (Horizontal)
31 to 64° (Vertical)
51 to 113° (Diagonal) | | Shutter Time | 1/5 to 1/16,000 seconds | | WDR Technology | WDR Pro | | Day/Night | Removable IR-cut filter for day/night function | | Minimum Illumination | 0.01 lux @ f/1.2 (Color)
0.001 lux @ f/1.2 (B&W) | | Pan/Tilt/Zoom | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) | | IR Illuminators | 98.4' (30 m) | | Onboard Storage | microSD/SDHC/SDXC card slot
Seamless recording | | | | CPU | Multimedia SoC (System-on-Chip) | | Flash | 128 MB | | RAM | 512 MB | | | | Compression | H.265, H.264, M-JPEG | | Maximum Frame Rate | H.264 & H.265: 30 fps @ 2048 x 1536
M-JPEG: 15 fps @ 2048 x 1536 | | Maximum Streams | 3 simultaneous streams | | SNR | 43 dB | | Dynamic Range | 100 dB | | Streaming | Adjustable resolution, quality and bitrate, Smart Stream II | | Image Settings | Time stamp, text overlay, flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
Scheduled profile settings, 3D-DNR, video rotation, defog, DIS | | | | Capability | Two-way (full duplex) | | Compression | G.711, G.726 | | Interface | Internal microphone input and audio output | | Effective Range | 16.4' (5 m) | | | | Users | Live viewing for up to 10 clients | | Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS | | Interface | 10Base-T / 100Base-TX Ethernet (RJ45) | | ONVIF | Supported | | | | Video Motion Detection | Five-window video motion detection | | | | Alarm Triggers | Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection | | Alarm Events | Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD card
File upload via HTTP, SMTP, FTP, NAS server, and SD card | | | | Operating System | Microsoft Windows 8 / 7 / Vista / XP / 2000 | | Web Browser | Mozilla Firefox 7 to 10 (streaming only)
Internet Explorer 7, 8, 9, 10, 11 | | Other Players | VLC: 1.1.11 or above
QuickTime: 7 or above | | | | Smart Focus System | Remote focus | | Connectors | RJ45 cable connector for Network / PoE connection
Audio input
Audio output
12 VDC power input
1 x Digital input
1 x Digital output | | LED Indicator | System power and status indicator | | Power Input | 12 VDC
IEEE 802.3af/at PoE Class 0 | | Power Consumption | Maximum: 12 W | | Safety Certfication | CE, LVD, FCC Class A, VCCI, C-Tick, UL | | Operating Temperature | Starting Temperature: 32 to 122°F (0°C to 50°C)
Working Temperature: 14 to 122°F (-10 to 50°C) | | Humidity | 90% | | Dimensions | Ø5.4 x 4.1" / Ø138 x 103 mm | | Weight | 18.7 oz / 530 g | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 7.4 x 6.8 x 5.9" |
