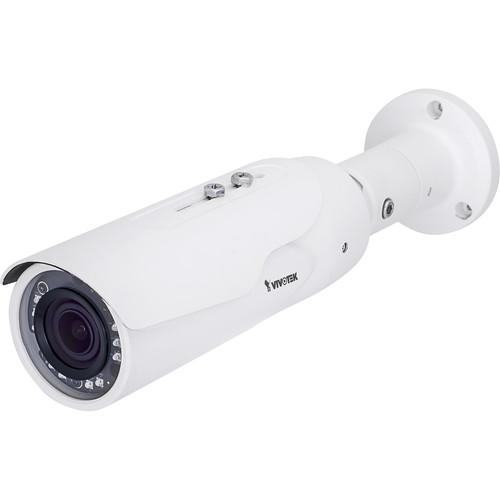

User Manual for Vivotek V Series IB8377-H 4MP Outdoor Network Bullet Camera Click to enlarge the picture
Contents of the user manual for the Vivotek V Series IB8377-H 4MP Outdoor
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek V Series IB8377-H 4MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The V Series IB8377-H 4MP Outdoor Network Bullet Camera from Vivotek uses a 1/3" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at 30 fps. Its 10 IR LEDs provide up to 98' of illumination in low-light conditions. The 2.8-12mm varifocal lens delivers a 105-33° horizontal field of view. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 64GB. microSD cards are available separately. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This bullet camera is ONVIF-compliant for Profiles S and G, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated metal enclosure that is suitable for outdoor use in areas at risk of vandalism - Removable IR cut filter for day and night functionality
- H.264 and MJPEG compression
- Smart Stream II optimizes bandwidth efficiency
- ePTZ provides 48x digital zoom
- Image settings include time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3D-DNR, video rotation, and defog
- Five-window video motion detection
- Alarm triggers include motion detection, manual trigger, periodical trigger, system boot, recording notification, and camera tampering detection
- Event notification using HTTP, SMTP, FTP, NAS server, and microSD card
- File upload via HTTP, SMTP, FTP, NAS server, and microSD card
- Live viewing for up to 10 clients
- Compatible with Windows 2000, XP, Vista, 7, and 8, Firefox 7-43 (streaming only), Internet Explorer 7-11, VLC 1.1.11 or above, and QuickTime 7 or above
- LED indicators for system power and status
- CE, LVD, FCC Class A, VCCI, C-Tick, and UL certified
- IP66- and IK10-rated metal enclosure that is suitable for outdoor use in areas at risk of vandalism
In the Box Vivotek V Series IB8377-H 4MP Outdoor Network Bullet Camera Alignment Sticker Cable Management Bracket Screw Pack Sunshield Desiccant Bag Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek V Series IB8377-H 4MP Outdoor Network Bullet Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek IB8377 Specs | | | Sensor | 4 MP 1/3" CMOS | | Focal Length | 2.8 to 12mm | | Maximum Aperture | f/1.4 - f/2.2 | | Zoom | Optical: 4.3x
Digital: 48x | | Lens Field of View | Horizontal: 105 to 33°
Vertical: 54 to 18°
Diagonal: 125 to 38° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.1 Lux
B&W: 0.01 Lux | | Shutter Speed | 1/16,000 to 1/5 Seconds | | | | Streaming Resolution | 2688 x 1520 at 30 fps
2560 x 1440 at 24 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | ARP, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles G & S | | Analytics | Five-Window Video Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Windows OS Support | Windows XP, Vista, 7, 8, 2000 | | | | Memory | 256 MB RAM / 128 MB Flash | | Recording Media | microSD (Up to 64 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45 | | IR Range | 98.43' / 30 m | | Video Management Software | VAST | | Supported Languages | English
French
German
Italian
Japanese
Portuguese
Simplified Chinese
Spanish
Traditional Chinese | | Internal Storage | None | | External Storage Options | NAS | | Power Source | PoE 802.3af (15 W) | | Power Consumption | 8.5 W | | Material of Construction | Metal (Unspecified Type) | | Operating Temperature | -4 to 122°F / -20 to 50°C Starting Temperature: 14 to 122°F / -10 to 50°C | | Operating Humidity | 90% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
