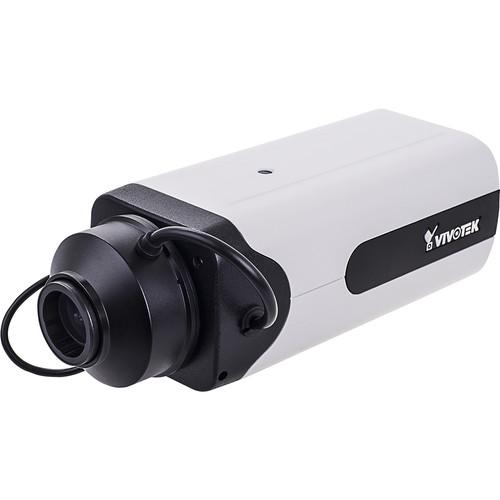

User Manual for Vivotek V Series IP9167-HT 2MP Network Box Camera with 2.8-10mm Lens Click to enlarge the picture
Contents of the user manual for the Vivotek V Series IP9167-HT 2MP Network
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek V Series IP9167-HT 2MP Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The V Series IP9167-HT 2MP Network Box Camera from Vivotek uses a 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. Supreme Night Visibility technology provides full-color surveillance in low-light conditions. The camera's 2.8-10mm varifocal lens delivers a 105-35° horizontal field of view. Two-way audio communication is possible thanks to an audio input and output. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 64GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This box camera complies with ONVIF profiles G and S, making it compatible with a wide range of surveillance devices. - Suitable for city surveillance, small & midsize business, and banking applications
- Supreme Night Visibility technology for low-light conditions
- Removable IR cut filter for day and night functionality
- H.265, H.264, and MJPEG video compressions
- Three simultaneous streams
- Smart Stream III optimizes bandwidth efficiency
- ePTZ provides 48x digital zoom
- Image settings include adjustable image size, quality and bit rate, time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, AE speed, backlight compensation, privacy masks, scheduled profile settings, highlight compensation, defog, 3D-DNR, digital image stabilization, and video rotation
- Five-window video motion detection
- Alarm triggers include motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, and microSD card life expectancy
- Event notification using digital output, HTTP, SMTP, FTP, NAS server, and microSD card
- File upload via HTTP, SMTP, FTP, NAS server, and microSD card
- External microphone input and external line output
- Two digital inputs and two digital outputs
- Live viewing for up to 10 clients
- Compatible with Windows 7 and 8, Firefox 7-43 (streaming only), Internet Explorer 10-11, VLC 1.1.11 or above, QuickTime 7 or above, VAST VMS, and Shepherd camera management tool
- LED indicators for system power and status
- CE, LVD, FCC Class B, VCCI, C-Tick, UL, and EN50121-4 certified
- Trend Micro IoT Security within warranty period
In the Box Vivotek V Series IP9167-HT 2MP Network Box Camera with 2.8-10mm Lens Lens Module Screw Pack CS Ring Camera Stand L Wrench Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek V Series IP9167-HT 2MP Network Box Camera with 2.8-10mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek IP9167 Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Lens Mount | CS | | Focal Length | 2.8 to 10mm | | Maximum Aperture | f/1.6 - f/2.97 | | Zoom | Optical: 3.6x
Digital: 48x | | Lens Field of View | Horizontal: 105 to 35°
Vertical: 55 to 20°
Diagonal: 127 to 41° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.07 Lux
B&W: 0.01 Lux | | Shutter Speed | 1/32,000 to 1/5 Seconds | | | | Streaming Resolution | 1920 x 1080 at 30 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | | | Streaming | Two-Way | | Audio Formats | G.711, G.726 | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | ARP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles G & S | | Analytics | Five-Window Video Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Windows OS Support | Windows 7, 8 | | | | Memory | 512 MB RAM / 128 MB Flash | | Recording Media | microSD (Up to 64 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x Power
1 x 9-Pin Serial (RS-485) | | Video Management Software | VAST, Shepherd | | Supported Languages | English
French
German
Italian
Japanese
Portuguese
Simplified Chinese
Spanish
Traditional Chinese | | Internal Storage | None | | External Storage Options | NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 6.5 W | | Operating Temperature | 14 to 122°F / -10 to 50°C Starting Temperature: 32 to 122°F / 0 to 50°C | | Operating Humidity | 90% | | Dimensions | H: 2.4 x W: 2.8 x L: 7.4" / H: 61.0 x W: 70.1 x L: 188.0 mm | | Weight | 1.4 lb / 660 g |
