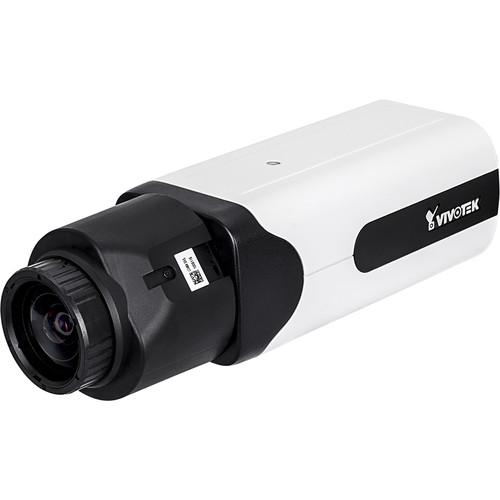

User Manual for Vivotek V Series IP9181-H 5MP Network Box Camera Click to enlarge the picture
Contents of the user manual for the Vivotek V Series IP9181-H 5MP Network
- Product category: Wired IP Cameras Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Wired IP Cameras
|
User manual for the Vivotek V Series IP9181-H 5MP Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description The V Series IP9181-H 5MP Network Box Camera from Vivotek uses a 1/1.8" progressive scan CMOS sensor to capture 2560 x 1920 resolution video at 30 fps. A removable IR cut filter enables day and night functionality. The 4.1-9mm varifocal lens delivers a 90-46° horizontal field of view. Two-way audio communication is possible thanks to a mic input and audio output. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 64GB. microSD cards are available separately. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This box camera is ONVIF-compliant for Profiles S and G, making it compatible with a wide range of surveillance devices. - RBF (Remote Back Focus) system
- Lens profile ensures full compatibility for different lens options
- Removable IR cut filter for day and night functionality
- SNV (Supreme Night Visibility) for low-light conditions
- H.265, H.264, and MJPEG compression
- Smart Stream II optimizes bandwidth efficiency
- ePTZ provides 48x digital zoom
- Image settings include time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, video rotation, 3D-DNR, defog, snapshot focus, lens profile, and DIS (digital image stabilization)
- Five-window video motion detection
- Alarm triggers include motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, and audio detection
- Event notification using digital output, HTTP, SMTP, FTP, NAS server, and microSD card
- File upload via HTTP, SMTP, FTP, NAS server, and microSD card
- Gigabit Ethernet for high speed transmission
- Mic input and audio output
- Three digital inputs and one digital input
- Shepherd camera management tool
- Live viewing for up to 10 clients
- Compatible with Windows 7 and 8, Firefox 7-43 (streaming only), Internet Explorer 7-11, VLC 1.1.11 or above, and QuickTime 7 or above
- LED indicators for system power and status
- CE, LVD, FCC Class B, VCCI, C-Tick, and UL safety certifications
In the Box Vivotek V Series IP9181-H 5MP Network Box Camera Mounting Bracket Screw Pack Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek V Series IP9181-H 5MP Network Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek IP9181 Specs | | | Sensor | 5 MP 1/1.8" CMOS | | Focal Length | 4.1 to 9mm | | Maximum Aperture | f/1.6 - f/2.4 | | Zoom | Optical: 2.2x
Digital: 48x | | Lens Field of View | Horizontal: 90 to 46°
Vertical: 68 to 35°
Diagonal: 117 to 58° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.07 Lux
B&W: 0.001 Lux | | Shutter Speed | 1/32,000 to 1/5 Seconds | | | | Streaming Resolution | 2560 x 1920 at 30 fps
1920 x 1080 at 60 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 4 Streams | | | | Streaming | Two-Way | | Audio Formats | G.711, G.726 | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | ARP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles G & S | | Analytics | Five-Window Video Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Windows OS Support | Windows 7, 8 | | | | Memory | 512 MB RAM / 128 MB Flash | | Recording Media | microSD (Up to 64 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x Power
1 x 9-Pin Serial (RS-485) | | Video Management Software | VAST, Shepherd | | Supported Languages | English
French
German
Italian
Japanese
Portuguese
Simplified Chinese
Spanish
Traditional Chinese | | Internal Storage | None | | External Storage Options | NAS | | Power Source | AC, DC, PoE 802.3af (15 W), PoE 802.3at (30 W) | | Power Consumption | 9.7 W | | Operating Temperature | 14 to 122°F / -10 to 50°C Starting Temperature: 32 to 122°F / 0 to 50°C | | Operating Humidity | 90% | | Dimensions | H: 2.5 x W: 2.8 x L: 8.3" / H: 63.0 x W: 70.0 x L: 210.0 mm | | Weight | 1.7 lb / 766.0 g | | | | Package Weight | 3.285 lb | | Box Dimensions (LxWxH) | 9.2 x 7.75 x 4.75" |
