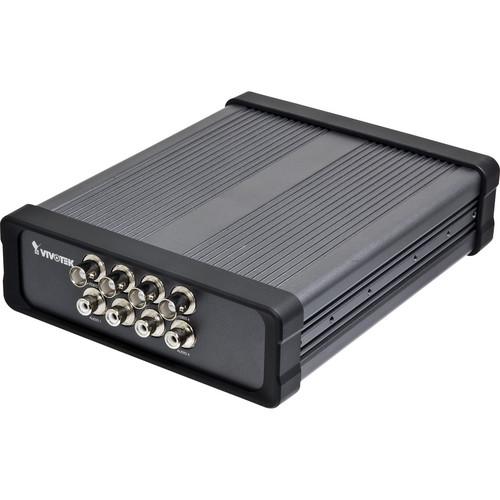

User Manual for Vivotek VS8401 4-Channel Video Server Click to enlarge the picture
Contents of the user manual for the Vivotek VS8401 4-Channel Video Server
- Product category: Video Encoders & Decoders Vivotek
- Brand: Vivotek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vivotek Video Encoders & Decoders
|
User manual for the Vivotek VS8401 4-Channel Video Server contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vivotek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vivotek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vivotek product will considerably shorten its lifespan!
|
Product description Convert your 4-channel analog setup into a modern digital surveillance system with the VS8401 4-Channel Video Server from Vivotek. It has efficient H.264, MJPEG, and MPEG-4 video compression for small file sizes and limited strain on bandwidth while offering a high quality of D1 720 x 480 resolution at up to 30 fps. This model supports up to 4 channels with the ability for simultaneous dual streams. It also has a professional rack-mount design and a Gigabit Ethernet port for fast data transmission.
Along with these basic video handling features, the VS8401 adds intelligent functions such as tamper detection and triple-window video motion detection along with automatic event notifications. The unit is also equipped with RS-485 support for control over PTZ functions and has multiple security protocols available. Integrating the VS8401 into an existing system is simplified due to the ability to accept either 12 VDC or 12 VAC power as well as a standard RJ45 Ethernet connection. This networked setup provides live viewing for up to 10 clients simultaneously.
Two-way audio is possible with four inputs and outputs. Also, an SD/SDHC card slot enables the storage of local video and screenshots. And, video management software is available to bring out even more features of the video server. In the Box Vivotek VS8401 4-Channel Video Server Camera Stand Power Adapter Software CD Limited 2-Year Warranty User Manual PDF 12.3mbtwbrrbyrxeuuef Table of Contents
|
Upload User Manual
Have you got an user manual for the Vivotek VS8401 4-Channel Video Server in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVivotek VS8401 Specs | | | CPU | Mozart 380 SoC | | Flash Memory | 32 MB | | RAM | 512 MB | | Embedded Operating System | Linux 2.6 | | | | Connection | RS-485: Half Duplex | | Supported Devices | DynaDome/SmartDome, Pelco D, LiLin, Pelco P, Samsung scc643, and customized types
Supports CGI command serial driver | | | | Compression | H.264
MJPEG
MPEG-4 | | Streaming | Dual Streams
H.264 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
H.264/MPEG-4 multicast streaming
MJPEG streaming over HTTP or HTTPS
Supports activity adaptive streaming for dynamic frame rate control
Supports 3GPP mobile surveillance | | Max Resolution | NTSC: 720 x 480 at 30 fps
PAL: 720 x 576 at 25 fps | | Frame Rates | H.264: Up to 180 fps at D1 in total
MPEG-4: Up to 80 fps at D1 in total
MJPEG: Up to 240 fps at D1 in total | | Image Settings | Adjustable image size, quality, and bit rate
Time stamp and text caption overlay
Flip & mirror
Configurable brightness, contrast, saturation, sharpness
Supports privacy masks | | | | Compression | G.711 audio encoding at 64 kbps (μ-Law, or A-Law mode selectable) | | Interface | 4 x RCA audio input
4 x Terminal block audio output | | Audio Features | Supports two-way audio per channel
Supports audio mute | | | | Connection | RJ45 10/100/1000 Mbps Gigabit Ethernet | | ONVIF | Supported | | Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X | | | | Local Storage | SD/SDHC card slot | | Alarm | Triple-window video motion detection
Event notification using HTTP, SMTP, or FTP
Tamper Detection
4 Digital I/O for external sensors
Local recording of MP4 file | | Security | Multi-level user access with password protection
IP address filtering
HTTPS encrypted data transmission
802.1X port-based authentication for network protection | | Simultaneous Client Access | 10 clients online monitoring at the same time | | LED | System power and status indicator
System activity and network link indicator | | System Requirements | OS: Microsoft Windows 2000, XP, Vista, 7
Browser: Mozilla Firefox, Internet Explorer 6.x or above
Cell Phone: 3GPP player
RealPlayer: 10.5 or above
QuickTime: 6.5 or above | | Management | Installation Wizard 2
32-channel central management software
Supports firmware upgrade | | Applications | SDK available for application development and system integration | | Power Input | 12 VDC or 24 VAC | | Power Consumption | 24 W | | Approvals | CE, LVD, FCC, VCCI, C-Tick | | Operating Conditions | Temperature: 14 to 122°F / -10 to 50°C
Humidity: 20 to 80% | | Dimensions | 7.4 x 6.2 x 1.9" / 189 x 153 x 49.3 mm | | Weight | 1.8 lb / 800 g | | | | Package Weight | 3.51 lb | | Box Dimensions (LxWxH) | 10.6 x 8.1 x 5.45" |
