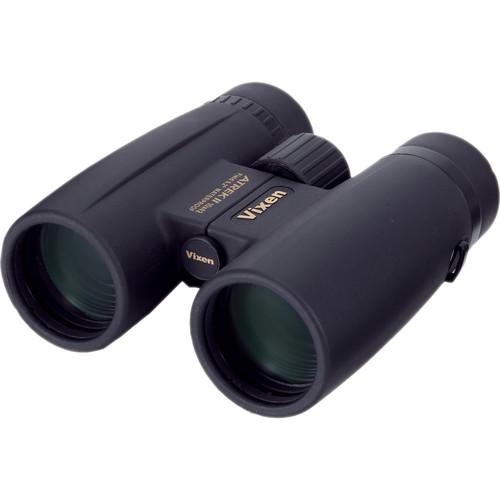

User Manual for Vixen Optics 10x42 Atrek II DCF Binocular Click to enlarge the picture
Contents of the user manual for the Vixen Optics 10x42 Atrek II DCF
- Product category: Binoculars Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Binoculars
|
User manual for the Vixen Optics 10x42 Atrek II DCF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More dvxwaqyfssdsqvctdsebzrtzcbufrzwstza Vixen Optics designed and built the 10x42 Atrek II DCF Binocular with fully multi-coated front and rear lenses to limit light loss and increase light transmission which ensures the maximum amount of light exits into the user's eyes. This translates to bright and clear high-contrast images with improved color rendition. Next are compact BAK4 roof prisms that are coated with multiple layers of proprietary phase-correcting and high-reflectivity optical coatings to properly control and align the incoming light and limit internal light scattering, further improving color and contrast. These features, when combined with a wide angle of view, short close-focus distance, and long eye relief, produce an optic ideal for general-purpose use from dawn to dusk. - Performance
-
- 10x magnification
- 42mm objective lenses
- Compact BaK4 roof prisms
- Fully multi-coated optics increases light transmission while improving image brightness, color rendition, and overall contrast
- Phase correcting and high-reflectivity prism coatings reduce internal light loss and increase color and contrast
- Wide 62° apparent angle of view
- 325' field of view at 1000 yards
- Short 4.3-foot close focus distance
- Use and Handling
-
- Large center focusing wheel
- 57-75mm interpupillary adjustment range
- Right-eye dioptric adjustment
- Twist-up rubber eyecups for use with or without eyewear
- Wide 4.2mm exit pupil
- Long 16mm eye relief
- Tripod mountable with optional adapter
- Construction
-
- Lightweight and durable aluminum alloy chassis
- Slip-resistant and protective rubber armoring
- Nitrogen-filled and O-ring sealed for water and fogproof performance
- Weight: 25 ounces
In the Box Vixen Optics 10x42 Atrek II DCF Binocular Neck Strap Soft Carrying Case Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics 10x42 Atrek II DCF Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics 14727 Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 42 mm | | Angle of View | 6.2° (Actual) | | Field of View | 325.5' @ 1000 yd / 108.5 m @ 1000 m | | Minimum Focus Distance | 4.3' / 1.3 m | | Exit Pupil Diameter | 4.2 mm | | Eye Relief | 16.0 mm | | Interpupillary Adjustment | 57 to 75 mm / 2.2 to 3" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 5.3 x 5.1 x 2.0" / 13.5 x 12.9 x 5.2 cm | | Weight | 24.7 oz / 700.0 g | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 7.8 x 6.7 x 3.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
