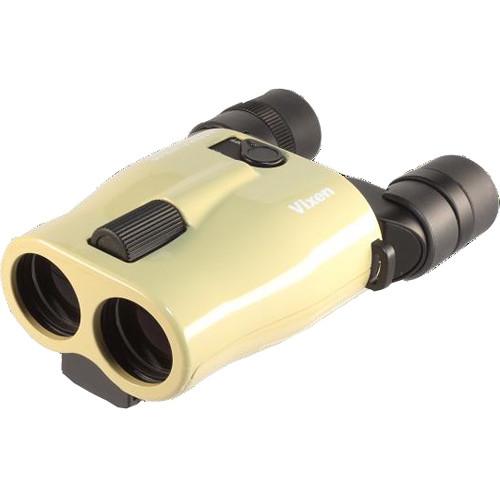

User Manual for Vixen Optics 12x30 ATERA Vibration-Canceling IS Binocular Click to enlarge the picture
Contents of the user manual for the Vixen Optics 12x30 ATERA Vibration-Canceling IS
- Product category: Binoculars Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Binoculars
|
User manual for the Vixen Optics 12x30 ATERA Vibration-Canceling IS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More uxufrafyeceqeyaarcwyzyycbseftxxsfdau Utilizing a secondary prism on a two-axis gimbal base to keep views steady despite the high power, the Vixen Optics 12x30 ATERA Vibration-Canceling IS Binocular provides rock-solid performance with a compact and lightweight design.The prisms are dielectric coated and phase corrected to maximize light transmission and eliminate internal interference and diffraction. The lens system is anti-reflection fully multi-coated to limit light loss. These features work together to ensure as much light as possible passes through the optic to your eyes to transmit bright and crisp high-contrast images with accurate color and limited fringing. To help compensate for minor hand vibrations or larger movement, the image-stabilizer (IS) system has an impressive stabilization freedom range of ±3° and an internal sensor that detects movement and controls the prism gimbal to deliver solid and steady views.Vixen designed the ATERA to be highly portable and comfortable to use. Measuring under 6" long and weighing less than a pound, it has a natural feel in the hands and won't cause excessive arm fatigue when used for long periods. Twist-up eyecups and a long eye relief maximize comfort and reduce eye strain while being easy to use with or without eyeglasses or sunglasses. The binocular runs on two included AAA batteries that are readily available when it's time to replace them and features an auto-off function to extend their life. - Optical Performance
-
- 12x power brings distant subjects in close for detailed observations
- 30mm objective lenses ensure a compact form factor
- BK7 primary roof prism with a BAK4 secondary prism
- Phase-correction roof prism coatings eliminate internal interference to improve contrast and clarity
- Highly reflective dielectric prism coating reduces light loss as it passes through the prism system so images remain bright with high resolution
- Anti-reflection fully multi-coated optics maximize light transmission for improved color fidelity, contrast, and image sharpness
- 220-foot field of view at 1000 yards
- Vibration-Canceling System
-
- Image is stabilized by mounting the secondary prism on a two-axis gimbal base, which allows it to move horizontally and vertically to counter movement when vibration is detected by an internal sensor
- Wide ±3° stabilization freedom range helps to compensate for the micro-vibrations common when holding any optic, as well as more drastic movement
- Simple on/off toggle switch makes use fast, easy, and intuitive
- Auto off after 5 minutes of inactivity to preserve battery life
- Runs on two included AAA batteries for up to 12 hours
- Use and Handling
-
- Slip-resistant center-focusing wheel
- Right-eye dioptric correction allows users to compensate for optical prescriptions and ensure tack-sharp focusing
- 55-75mm interpupillary distance range accommodates a wide variety of users, especially those with narrow faces
- Twist-up eyecups for comfortable use with or without eyewear
- Long 17.5mm eye relief makes viewing easy for long periods of time with reduced eye strain
- 2.6mm exit pupil
- Compact design: 5.9 x 4.3 x 2.4"
- Lightweight: 15oz, without batteries
In the Box Vixen Optics 12x30 ATERA Vibration-Canceling IS Binocular Soft Case Neck Strap 2 x AAA Battery Limited 5-Year Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 uxufrafyeceqeyaarcwyzyycbseftxxsfdau A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics 12x30 ATERA Vibration-Canceling IS Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics 11493 Specs | Prism Type | Roof | | Magnification | 12 x | | Objective Lens Diameter | 30 mm | | Angle of View | 4.2° (Actual) | | Field of View | 219.9' @ 1000 yd / 73.0 m @ 1000 m | | Minimum Focus Distance | 8.2' / 2.5 m | | Exit Pupil Diameter | 2.6 mm | | Eye Relief | 17.5 mm | | Interpupillary Adjustment | 55 to 75 mm / 2.2 to 3" | | Stabilization Freedom | ±3° | | Focus Type | Center | | Tripod Mount | None | | Dimensions | 5.9 x 4.3 x 2.4" / 14.9 x 10.8 x 6.2 cm | | Weight | 14.89 oz / 422.0 g | | | | Package Weight | 1.41 lb | | Box Dimensions (LxWxH) | 8.4 x 6.65 x 2.95" |
