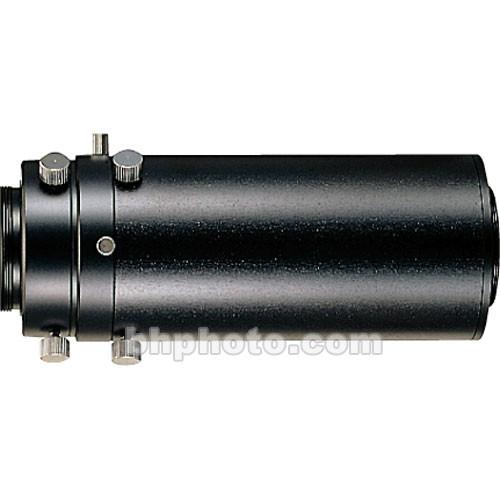

User Manual for Vixen Optics 43mm DX Camera T-Adapter Click to enlarge the picture
Contents of the user manual for the Vixen Optics 43mm DX Camera T-Adapter
- Product category: Astrophotography Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Astrophotography
|
User manual for the Vixen Optics 43mm DX Camera T-Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description Vixen Optics offers an array of choices for mounting photographic imagers to your telescope focusers.The #3523 43mm DX Camera T-Adapter fits any drawtube with a 43mm female threading, or anything you can reduce to that size. For telescopes with a 2" (50.4mm) inner diameter focuser/drawtube, you can use the Vixen #37291 EA 50.8mm to 43mm adapter. Many Vixen telescopes have a 60mm inner diameter drawtube, but include a 60mm to 50.8mm adapter. A Vixen T-mount is attached with the SLR camera to the rear of this adapter, and in between it is possible to have a 1.25" eyepiece (for eyepiece projection imaging) or no eyepiece at all (for prime focus imaging). When using this device for prime focus imaging without eyepieces in the optical path, it is possible to use a 48mm filter upon the combination filter ring/eyepiece holder ring. Note: 2" Diameter eyepieces cannot be used. - Fits all female-43mm-threaded drawtubes
- 1.25" and 0.965" Eyepieces can be used for eyepiece projection
- Add multiple #2957 extension tubes for additional path length in 41mm increments
- Threaded for standard 48mm filters
In the Box Vixen Optics 43mm DX Camera T-Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics 43mm DX Camera T-Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics 3523 Specs | Dimensions | 2.5 x 6.5" (63 x 164mm) WxL | | Weight | 0.86 lb (390g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 6.929 x 3.228 x 3.228" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 16 owners. Add your rating and experience with the product.
