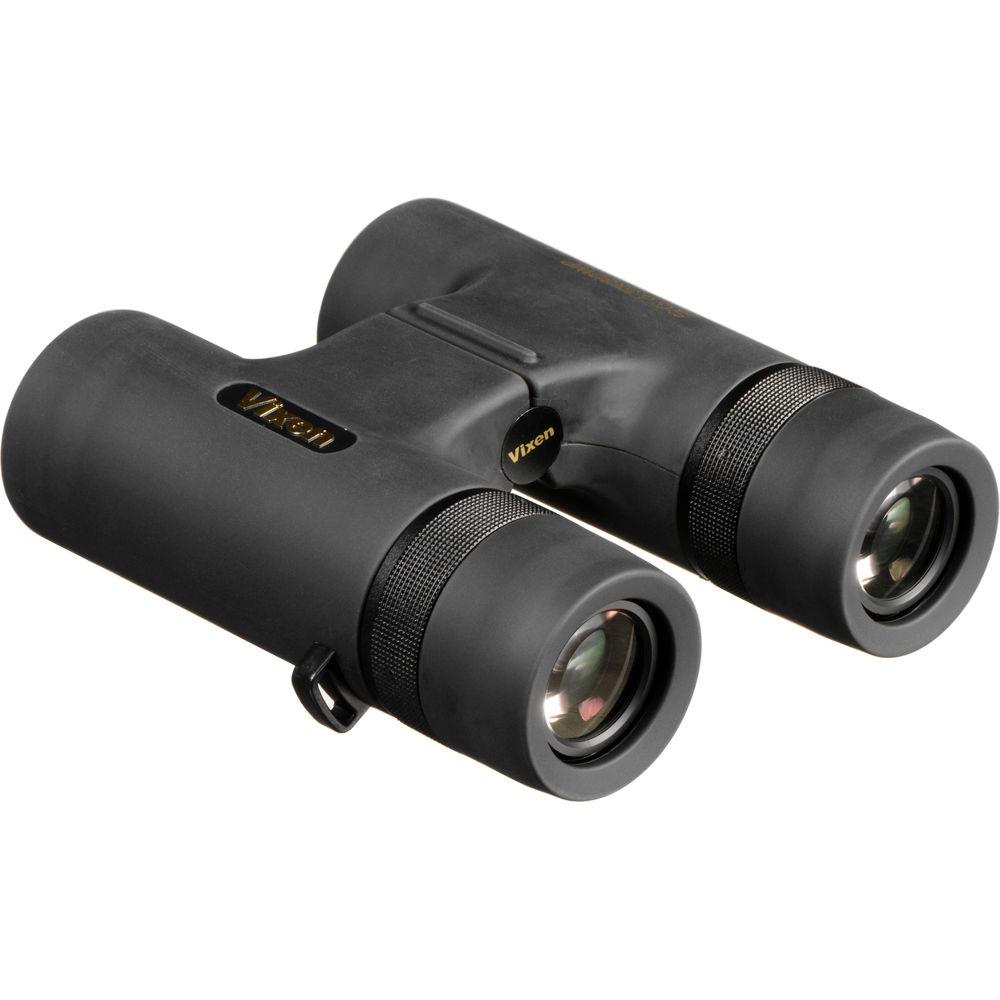

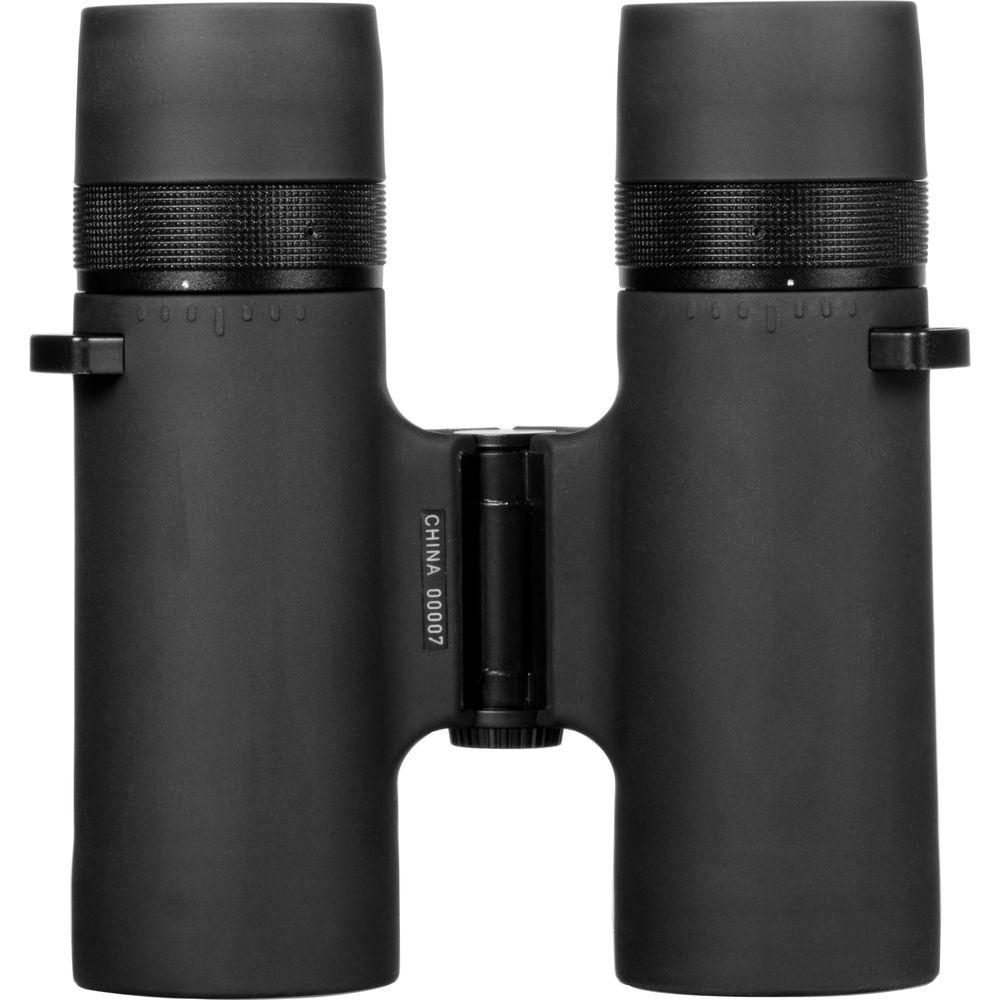

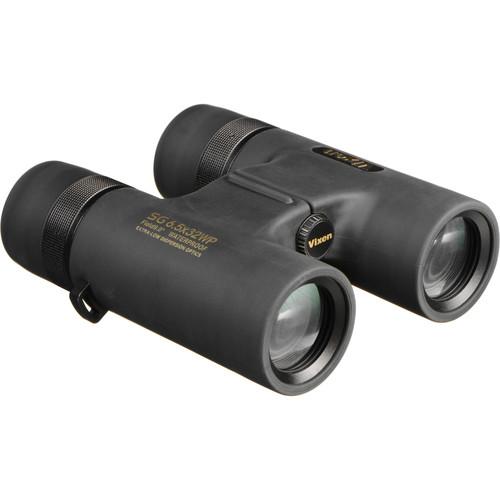

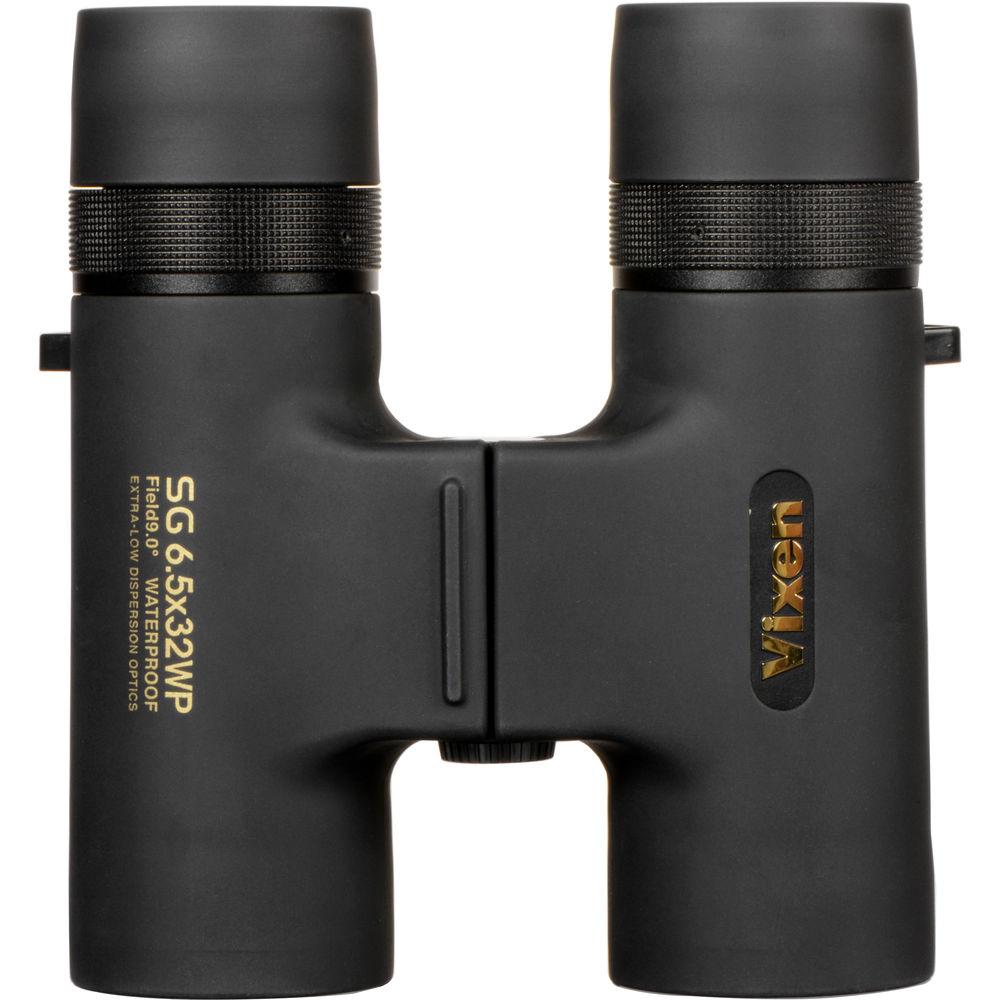

User Manual for Vixen Optics 6.5x32 WP ED Astro Binocular Click to enlarge the picture
Contents of the user manual for the Vixen Optics 6.5x32 WP ED Astro
- Product category: Binoculars Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Binoculars
 |
User manual for the Vixen Optics 6.5x32 WP ED Astro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More vwyvztvcxafzywyattvbc Designed for wide-field skywatching with exceptional performance, the Vixen Optics 6.5x32 WP ED Astro Binocular is optimized for nighttime viewing.Multiple optical technologies are brought to the fore to boost image quality. These technologies begin with the use of extra-low dispersion (ED) glass for the objective lens elements and low-light absorption BK7 glass for the roof prisms. Next are specially-engineered 7-layer anti-reflection coatings, fully multi-coated on the optics, which are tuned specifically for starlight and for use in the dark for maximum light transmission, accurate color rendition, and improved contrast. The prisms have phase-correcting and highly-reflective dielectric coatings which work together to boost light transmission through the prisms to greater than 99%, and eliminate color fringing, and further improve clarity and contrast across the expansive field of view. All these features, when coupled with its relatively low 6.5x magnification, present the user with an immersive observational experience with bright and clear expansive views, and accurate color representation.Complementing the optical performance is a unique focusing system that eliminates the common center focus/dioptric correction for individually-focusing eyepieces — this allows a level of precision that center focusing systems often are unable to achieve but is required to split fine binary stars and bring dim objects into sharp resolution. This variable-speed mechanism further improves focus precision by slowing down as it approaches infinity, to provide even finer-tuning of the focus process that single-speeds cannot give.To withstand the rigors of outdoor use, the chassis is made of a lightweight and durable magnesium alloy that reduces weight, and the optical tubes are wrapped in a slip-resistant rubber armor. The optical tubes are nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme changes in temperature and environmental conditions. For extended observation sessions, the Astro can be tripod mounted using an optional adapter for hands-free use to reduce distracting hand-shake or vibrations, and eliminate arm fatigue. - Optical Performance
-
- Relatively low atypical 6.5x power magnifies view while ensuring a wide field of view and exit pupil, and long eye relief
- Moderate 32mm objective lenses provide performance without adding excessive bulk
- Compact low-absorption BK7 roof prisms help to maximize light transmission through optical path
- Phase-correcting prism coatings increase contrast and clarity while eliminating halos and off-axis comas
- Highly-reflective silver and dielectric prism coatings transmit greater than 99% of light to limit internal light loss while maintaining image brightness, contrast, and clarity
- Extra-low dispersion glass corrects chromatic aberration to produce accurate colors without fringing
- 7-layer anti-reflection fully multi-coated optics are engineered specifically for nighttime astronomical use to produce neutral and accurate color fidelity, and improve contrast and image brightness
- Exceptional 473-foot field of view at 1000 yards minimizes the appearance of the distracting hand-shake that is common when holding optics, for clearer views
- Use and Handling
-
- Short bridge placed to balance the center of gravity for a more comfortable feel in the hand
- Individual focusing eyepieces allow for precision focusing for tack-sharp images for most users, regardless of optical prescriptions
- Unique variable-speed focusing mechanism slows down the focus travel as it reaches infinity to improve focus precision during astronomical observations
- Integrated center guide-line on bridge enables users to sight small or dim objects before bringing optic to the face for faster subject acquisition and star-hopping navigation
- Broad 56-76mm interpupillary adjustment range enables easy use by a wide variety of users
- Twist-up eyecups for comfortable use with or without eyewear, so users with difficult prescriptions can more easily wear corrective lenses and use the binocular
- Tripod mountable with optional adapters for hands-free use to eliminate hand-shake/vibrations and arm fatigue, compatible with Vixen Type M, H, and MH
- Exceptional 20mm eye relief helps to reduce eye strain and improves viewing comfort
- Comfortable 4.9mm exit pupil will completely cover most pupils as they open and dilate in low light
- Construction Details
-
- Lightweight and durable magnesium alloy chassis reduces overall weight without sacrificing strength or stability
- Nitrogen-filled and O-ring sealed for waterproof performance in the rain, snow, and most other inclement conditions; and resistant to internal fogging when moving through extreme temperature changes and environmental conditions
- Protective rubber armoring provides a slip-resistant grip, especially in cold and wet weather
- Includes soft carrying case and neck strap
- Weight: 21.5 ounces
In the Box Vixen Optics 6.5x32 WP ED Astro Binocular Soft Case Neck Strap Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics 6.5x32 WP ED Astro Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics 19173 Specs | Prism Type | Roof | | Magnification | 6.5 x | | Objective Lens Diameter | 32 mm | | Angle of View | 9.0° (Actual) | | Field of View | 472.9' @ 1000 yd / 157.0 m @ 1000 m | | Minimum Focus Distance | 19.7' / 6 m | | Exit Pupil Diameter | 4.9 mm | | Eye Relief | 20.0 mm | | Interpupillary Adjustment | 56 to 76 mm / 2.2 to 3" | | Focus Type | Individual | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 5.5 x 5.2 x 1.9" / 14.0 x 13.2 x 4.8 cm | | Weight | 21.5 oz / 610.0 g | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 6.8 x 6.0 x 3.2" |
