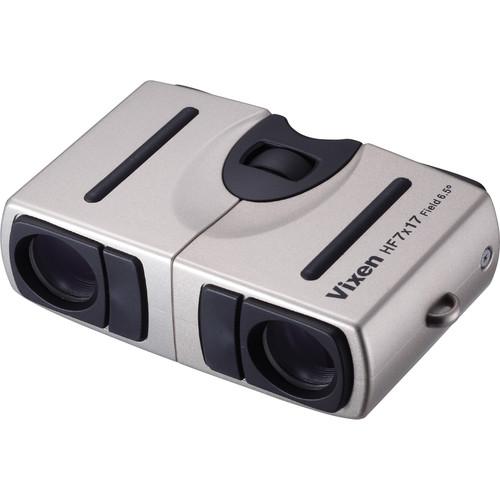

User Manual for Vixen Optics 7x17 Compact HF DCF Binocular Click to enlarge the picture
Contents of the user manual for the Vixen Optics 7x17 Compact HF DCF
- Product category: Binoculars Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Binoculars
|
User manual for the Vixen Optics 7x17 Compact HF DCF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Engineered to be the perfect size to easily fit into a pocket, pack, or purse, the Vixen Optics 7x17 Compact HF DCF Binocular is the ideal companion at the theater, in the stadium, or sightseeing around the city. The compact design simply pulls out to open and adjust to each user's interpupillary distance, and a slim low-profile focusing wheel makes it easy to bring the view before you into crisp detail. Optically, the binocular is built with BAK4 roof prisms and anti-reflection multi-coated optics that deliver clear and bright high-contrast images with accurate color reproduction. Measuring a mere 3.5x2.4x1.1" and weighing just 6.5 ounces, the Compact HF DCF is your go-anywhere, always-ready optic for all your viewing needs. - Optical Performance
-
- Moderate 7x magnification
- 17mm objective lenses maintains a slim form-factor
- Compact roof prism light path
- BAK4 prisms deliver a round exit pupil, and a crisp and clear image with limited edge distortion
- Anti-reflection multi-coated optics produce accurate color fidelity, and improve contrast and image brightness
- 343-foot field of view at 1000 yards
- Use and Handling
-
- Low-profile center focusing wheel maintains compact form
- 58-71mm interpupillary distance adjustment range
- Fixed rubber eyecups are easy to use, and won't scratch eyeglass lenses
- 14mm eye relief
- 2.4mm exit pupil
- Construction Details
-
- Compact design with sliding housing to adjust interpupillary distance
- Combination aluminum and plastic chassis reduces weight without sacrificing strength
- Small (3.5x2.4x1.1") and lightweight (6.2 ounces) design makes it easy to take anywhere
In the Box Vixen Optics 7x17 Compact HF DCF Binocular Soft Carrying Case Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics 7x17 Compact HF DCF Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics 1638 Specs | Prism Type | Roof | | Magnification | 7 x | | Objective Lens Diameter | 17 mm | | Angle of View | 6.5° (actual) | | Field of View | 343.4' @ 1000 yd / 114.0 m @ 1000 m | | Minimum Focus Distance | 9.8' / 3 m | | Exit Pupil Diameter | 2.4 mm | | Eye Relief | 14.0 mm | | Interpupillary Adjustment | 58 to 71 mm / 2.3 to 2.8" | | Dioptric Correction | None | | Focus Type | Center | | Tripod Mount | None | | Dimensions | 3.5 x 2.4 x 1.1" / 9.0 x 6.0 x 2.8 cm | | Weight | 6.2 oz / 175.0 g |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
