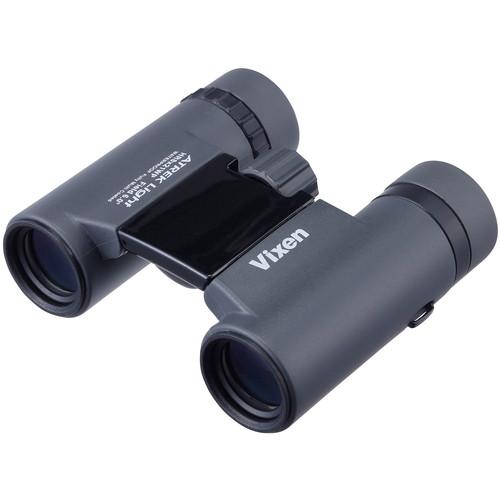

User Manual for Vixen Optics 8x21 Atrek DCF Binocular Click to enlarge the picture
Contents of the user manual for the Vixen Optics 8x21 Atrek DCF Binocular
- Product category: Binoculars Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Binoculars
|
User manual for the Vixen Optics 8x21 Atrek DCF Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More The Vixen Optics 8x21 Atrek DCF Binocular gives you a versatile and capable optic that easily fits in the palm of your hand. Its anti-reflection fully multi-coated optics and compact BK7 roof prisms produce bright and clear images with improved contrast and accurate color representation. The lightweight housing is made to withstand use in rain showers and the rubberized armor offers protection from impacts and drops while providing a slip-resistant grip. An exceptionally-wide interpupillary distance range allows both children and adults to easy use them, and the closed-bridge design gives the Atrek a solid feel in the hand. The low-profile focus wheel enables easy focusing with either hand, and twist-up eyecups makes it easy and comfortable to use with or without eyewear. - Optical Performance
-
- Moderate 8x power magnifies view without sacrificing exit pupil or eye relief
- 21mm objective lenses ensure slim optical tubes
- BK7 roof prisms help to maintain a compact form factor
- Anti-reflection fully multi-coated optics maximize light transmission and provide improved contrast and color fidelity
- 316' field of view at 1000 yards
- Use and Handling
-
- Closed bridge configuration provides a solid platform for the internal focusing mechanism
- Textured low-profile center focusing wheel is easy to use with either hand
- ±2 dioptric correction allows precision focusing
- Exceptionally wide 34mm to 70mm interpupillary distance enables easy use by adults and children
- Twist-up eyecups for comfortable use with or without eyewear
- 11mm eye relief
- 2.6mm exit pupil
- Construction Details
-
- Dual-hinge bridge design allows the optical tubes to fold and tuck under to minimize the form factor as much as possible to more easily fit into pockets and packs
- Lightweight and durable aluminum-alloy chassis
- O-ring sealed to be waterproof
- Compact (3.5" long) and lightweight (8oz)
In the Box Vixen Optics 8x21 Atrek DCF Binocular Neck Strap Carrying Case Limited 5-Year Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics 8x21 Atrek DCF Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics Atrek Specs | Prism Type | Porro | | Magnification | 8 x | | Objective Lens Diameter | 21 mm | | Angle of View | 6.0° (Actual) | | Field of View | 316.27' @ 1000 yd / 105.0 m @ 1000 m | | Minimum Focus Distance | 8.2' / 2.5 m | | Exit Pupil Diameter | 2.6 mm | | Eye Relief | 11.0 mm | | Interpupillary Adjustment | 34 to 70 mm / 1.3 to 2.8" | | Dioptric Correction | ±2 | | Focus Type | Center | | Tripod Mount | None | | Dimensions | 3.5 x 2.6 x 2.0" / 8.9 x 6.6 x 5.1 cm | | Weight | 8.0 oz / 227 g | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 5.5 x 3.6 x 2.7" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 24 owners. Add your rating and experience with the product.
