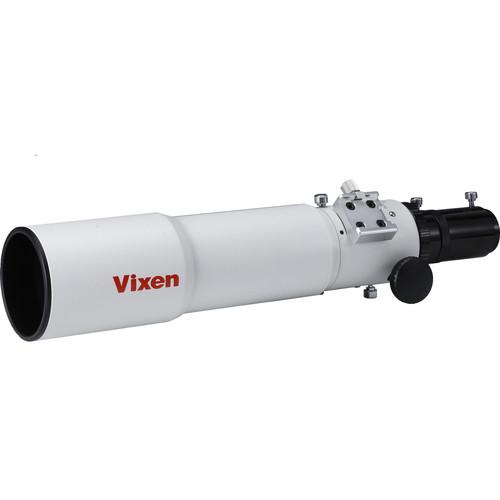

User Manual for Vixen Optics A62SS 62mm f 8.4 Achro Refractor Telescope Click to enlarge the picture
Contents of the user manual for the Vixen Optics A62SS 62mm f 8.4
- Product category: Refractors Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Refractors
|
User manual for the Vixen Optics A62SS 62mm f 8.4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description Vixen Optics' A62SS 62mm f/8.4 Achro Refractor Telescope utilizes a 4-element achromatic objective lens design to produce a scope with a longer effective focal length than the optical tube while retaining the advantages of a conventional refractor light path. Outfitted with a respectable 62mm (3") objective and 520mm focal length, Vixen was able to get the focal ratio down to just f/8.4, making this an ideal OTA for both observation and imaging. Complementing the focal length and ratio are multi-coated optics to increase contrast, and a Crayford-style focuser which allows for precision focusing without backlash.The A62SS is offered here without a mount or tripod for users that have mounting and support system already, and it comes equipped with a Vixen-style dovetail plate. The plate also has 1/4"-20 and 3/8"-20 mounting holes to give users the option of attaching it to conventional photo/video/field tripods. A dew-shield protects the objective from condensation and glare, and retracts to shorten the overall length to fit inside the included soft carrying bag. - Optical Performance
-
- 62mm (3") aperture
- f/8.4 focal ratio
- 520mm effective focal length
- Achromatic refractor optical design
- Anti-reflection multi-coated optics for improved light transmission and image contrast
- 4-element achromatic objective lens helps to reduce chromatic and spherical aberrations for true color rendition without distortion across entire field of view
- Resolution: 1.87 arc sec
- Factory-installed finderscope mount
- Retractable dew shield
- Focuser
-
- 1.25" diameter drawtube
- Single-speed Crayford-style
- Toothless friction system allows for super-fine precision focusing without backlash
- Adapter Thread: 42mm for T-ring, 37mm for filter
- Rotatable Focuser: For astrophotography, allows for precise camera positioning; for observation, helps to position OTA orientation for comfortable viewing
- Mounting
-
- Mount and tripod required
- Vixen-style dovetail plate
- 1/4"-20 and 3/8"-16 mounting holes for photo/video/field tripod heads
In the Box Vixen Optics A62SS 62mm f/8.4 Achro Refractor Telescope (OTA Only) Soft Carrying Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics A62SS 62mm f 8.4 Achro Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics A62SS Specs | Optical Design | Achromatic refractor | | Aperture | 62 mm | | Focal Length | 520mm | | Focal Ratio | f/8.4 | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | None | | Finderscope | None | | Tripod | None | | Mount Type | Vixen-style dovetail plate | | Power Source | None | | Optical Tube Dimensions | Length, dew-shield extended: 14.6" / 37.0 cm
Length, dew-shield retracted: 13.8" / 35.0 cm
Diameter: 3.0" / 7.5 cm | | Weight | 3.3 lb / 1.5 kg |
