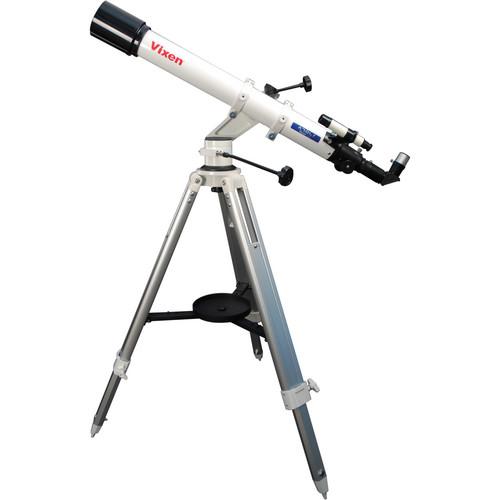

User Manual for Vixen Optics A70Lf 70mm f 13 ACHRO Refractor AZ Telescope with Porta II Mount Click to enlarge the picture
Contents of the user manual for the Vixen Optics A70Lf 70mm f 13
- Product category: Refractors Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Refractors
|
User manual for the Vixen Optics A70Lf 70mm f 13 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description With its easy setup and use, the Vixen Optics A70Lf 70mm f/13 ACHRO Refractor AZ Telescope presents new users with a complete observational platform for viewing astronomical and terrestrial objects of interest. Outfitted with an achromatic lens configuration in a refractor-style light path and with multi-coated optics, images are crisp and sharp with little color fringing or distortion and with accurate color in high contrast. An ideal choice for astrophotography, the rack-and-pinion focuser drawtube comes with a 1.25" eyepiece holder and standard T-threads to accept optional camera-specific T-rings for prime-focus techniques.Supporting the optical tube assembly (OTA) is the highly portable and versatile Porta II alt-azimuth mount. Built with a friction control system, there are no clumsy axis locks or clutches to manipulate, so the mount can be easily moved by hand for fast navigation. For more precise movement, the mount has dual-axis slow-motion cables that allow for easy tracking without vibrations. The mount comes with an aluminum tripod that adjusts from 35 to 51" to accommodate a wide variety of users and viewing positions, with a center tray that adds stability to the legs while offering a place for eyepieces, filters, and other accessories. Vixen includes two eyepieces that produce high and moderate magnifications, plus an erect-image diagonal that allows the scope to be used as a conventional spotting scope for nature and bird watching, or general terrestrial observations. - Optical Tube Assembly
-
- 70mm (2.8") aperture
- f/13 focal ratio
- 900mm focal length
- Achromatic refractor design
- Achromatic lens design limits color fringing and distortion, especially at the edges, for sharper and clearer views with accurate color representation
- Multi-coated optics maximize light transmission and improve color rendition and contrast
- Resolution: 1.66 arcsec
- Rack-and-pinion focuser with 1.25" eyepiece holder to accept the most common size accessories
- Standard 42mm T-ring thread for prime-focus astrophotography; optional camera-specific T-ring required
- Integrated dew/sun shield
- Tube ring set with Vixen-style dovetail plate
- Weight: 4.2 pounds
- Mount and Tripod
-
- Mount:
- Manual alt-azimuth design
- Dual-axis slow motion control cables allow for precision adjustments and tracking with less vibrations
- Smooth 360° rotation on each axis; 120-tooth wheel gears each
- Friction control system: No locks or clutches for fast and easy manual hand adjustments
- Vixen-style dovetail saddle
- 20-pound (9.1kg) payload capacity
- Tripod:
- Aluminum legs
- Two leg sections each
- Adjustable height from 35 to 51"
- Spiked feet provide additional stability on rough or soft ground
- Large thumbscrew leg locks are easy to use even while wearing gloves
- Center tray adds stability while offering a place to hold accessories
- Included Accessories
-
- Eyepieces:
- 1.25" barrel diameter
- Accepts most astronomical filters
- 20mm eyepiece produces a moderate 45x power
- 6.3mm eyepiece produces a high 143x magnification
- Diagonal:
- 1.25" snout and eyepiece holder
- Integrated erect-image prism corrects view for use as a terrestrial spotting scope
- 90° angle places head in a comfortable viewing position when the OTA is aimed straight up or when using as a spotter
- Finderscope:
- 24mm aperture
- 6x magnification ensures a wide field of view for easier alignment and faster star-hopping navigation
- 5° angular field of view
- Mounting bracket included
In the Box Vixen Optics A70Lf 70mm f/13 ACHRO Refractor AZ Telescope with Porta II Mount Porta II Alt-Azimuth Mount 6.3mm Eyepiece 20mm Eyepiece 90° Erect-Image Diagonal 6x24 Finderscope with Bracket Set Mounting Tube Rings Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics A70Lf 70mm f 13 ACHRO Refractor AZ Telescope with Porta II Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics A70MF Specs | | | Optical Design | Achromatic Refractor | | Focal Length | 900 mm | | Focal Ratio | f/12.9 | | Resolution | 1.66 Arcsec | | Eyepiece Barrel Diameter | 1.25" | | Finderscope | Yes | | | | Type | Alt-Azimuth | | GoTo Capability | No | | | | Type | Adjustable | | Tripod Height Adjustment Range | 35.4 to 51.1" / 90.0 to 130.0 cm | | Material of Tripod | Aluminum | | | | Weight | 4.2 lb / 2.0 kg (OTA)
15.0 lb / 6.8 kg | | | | Package Weight | 15.15 lb | | Box Dimensions (LxWxH) | 40.0 x 12.0 x 9.5" |
