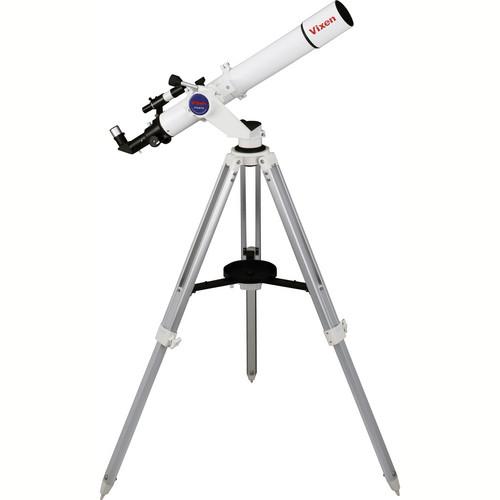

User Manual for Vixen Optics A80Mf 80mm f 11 Achro Refractor Telescope with Porta II Mount

• Product category: Refractors Vixen Optics
• Brand: Vixen Optics
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Vixen Optics Refractors

Product description

• A80Mf 80mm f/11 Achro Refractor Telescope (OTA Only) The Vixen Optics A80Mf 80mm f/11 Achro Refractor Telescope is designed with an achromatic lens system that produces bright and clear high-contrast images with true color representation across its entire distortion-free field of view. Its 80mm objective gathers more light than smaller-objective models while still being easy to handle and transport, especially when you have to carry it a distance to your observation site. This lens system, coupled with the fully coated optics, will give you great views of the Moon, planets, planetary moons, and brighter deep sky objects. You will be able to split binary stars and observe bright objects with virtually no comas.The scope comes with two eyepieces that offer low and moderate magnifications, and a 90° erect-image prism that makes it ideal for both astronomical and terrestrial use. Vixen offers the A80Mf here without a mount or tripod for users with a reliable support system, and the included mounting ring set includes a Vixen-style dovetail plate that makes it compatible with a wide variety of alt-azimuth, equatorial, and GoTo mounting systems.
  Optical Tube Assembly
  • • 80mm objective
    • f/11 focal ratio
    • 910mm focal length
    • Refractor-style optical path
    • Achromatic lens configuration corrects spherical and chromatic aberrations to produce distortion-free high-contrast images with true color representation
    • Fully coated optics produce bright and clear images with true color rendition
    • Resolution: 1.45 arcsec
    • Rack-and-pinion focuser with 1.25" focusing tube
    • Standard 42mm T-thread for prime-focus astrophotography; optional camera-specific T-ring required
    • Dew/sun shield reduces interference from peripheral terrestrial light and limits condensation on objective
  Mounting
  • • OTA only; mount and tripod required for proper use
    • Mounting ring assembly enables the optical tube orientation to be adjusted for precise eyepiece placement and to avoid interference with other gear
    • Weight: 5.5 pounds
  Accessories
  • Eyepieces:
    • 1.25"-diameter barrel
    • Compatible with most astronomical filters
    • 20mm, produces 45.5x magnification
    • 6.3mm, produces 144x magnification
    Diagonal:
    • Integrated erect-image prism for terrestrial observations
    • 90° angle puts head in a comfortable viewing position when optical tube assembly is aimed straight up or when using as a conventional spotting scope
    Finderscope:
    • 30mm objective
    • 6x magnification ensures a wide field of view for faster alignment and easier star-hopping navigation
    • 7° angle of view
  UPC: 811971010024
• Porta II Alt-Azimuth Mount Built to support a 20 lb payload, and equipped with two fine adjustment handles for whole circle slow motion in both directions, the Porta II Mount from Vixen comes with a sturdy set of legs that adjust from 35 to 51". The Porta II minimizes support-system-oriented frustration when searching for and tracking celestial objects.The Porta II is solid, and its slow-motion flexible handles minimize vibrations to keep the view sharp. Precision tracking of planets and ships on the horizon becomes a simple event thanks to a fine-tooth geared drive that's activated by turning the elevation or azimuth control handles.The "World-Standard" dovetail system ensures that the Porta II can be used to support most dovetail-mounted optical tube assemblies (OTAs) and binoculars. The Porta II mount head is detachable and compatible with all other Vixen tripods. The tripod is constructed from rugged aluminum alloy, and the legs extend from 35 to 51".
  • No locks or clutches
  • Portable alt-azimuth mount with precision slow-motion control in both axes
  • Slow-motion control with whole circle movement via 120-tooth wheel gears
  • Tripod legs height adjustment: 35-51"
  • Mount can be removed and used on heavier tripod if needed.
  UPC: 811971013643

• 20mm Eyepiece

• 6.3mm Eyepiece

• 6x30 Finderscope

• 90° Erect-Image Prism

• Set of Mounting Rings

• Dew Shield

• Limited 5-Year Warranty

• Slow Motion Controls

• Accessory Tray

• Limited 5 Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• A80Mf 80mm f/11 Achro Refractor Telescope (OTA Only)

  Optical Design	Achromatic Refractor
  Aperture	80 mm / 3.2"
  Focal Length	910 mm
  Focal Ratio	f/11.4
  Eyepiece Barrel Diameter	1.25"
  Diagonal	90 Rating 80% users recommend this product to others. And what about you? This product has already been rated by 62 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
