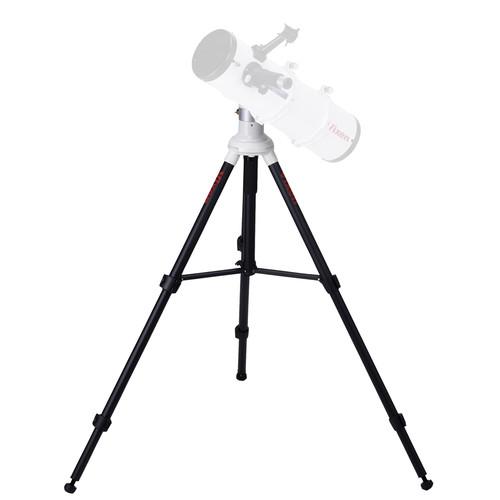

User Manual for Vixen Optics Advanced Polaris Alt-Az Mount with TL130 Tripod Click to enlarge the picture
Contents of the user manual for the Vixen Optics Advanced Polaris Alt-Az Mount
- Product category: Mounts Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Mounts
|
User manual for the Vixen Optics Advanced Polaris Alt-Az Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description Vixen Optics engineered their AP mount to be customized as your needs demand and is offered here in its Advanced Polaris Alt-Az Mount configuration. It will serve well as a conventional manual alt-az mount with competent 8.3 lb payload capacity, dual-axis slow-motion control knobs, and an integrated counterweight and shaft. A clutch-less friction-control system allows the mount to be quickly moved to your target by simply pointing the optical tube assembly (OTA) where you want it with your hands. To support the mount is Vixen's APP-TL130 tripod, with an adjustable height from 20.7 to 45.6" to accommodate a variety of users. An array of optional accessories is available separately so you can tailor the mount to your specific needs, including: a right ascension motor and Star Book One hand controller kit, declination motor, polar alignment scope, and polar meter. - Mount
-
- Manual alt-azimuth
- 18 lb payload capacity, including counterweight
- Dual slow-motion control knobs
- Vixen-style dovetail saddle
- Adjustable clutch-less friction-stop system
- Full 360° rotation wheel and worm gears with micro movement
- 73.5mm diameter/144-tooth RA and dec wheel gear
- 11mm diameter, brass RA worm gear
- 9.8mm diameter brass dec worm gear
- 59mm aluminum-alloy axis shafts
- Integrated retractable counterweight shaft/3.6 lb (1.65kg) counterweight
- APP-TL130 Tripod
-
- Three leg sections
- Collapsed length: 24"
- Min leg length: 22.4"
- Max leg length: 51"
- Adjustable height of 20.7-45.6"
- Weight: 7 lb
UPC: 811971017726 In the Box Vixen Optics Advanced Polaris Alt-Az Mount with TL130 Tripod 2 x Slow Mothion Knobs Allen Wrench Set Limited Five-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics Advanced Polaris Alt-Az Mount with TL130 Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics 25841TL130 Specs | Mount Type | Manual alt-az | | Load Capacity | 18.0 lb / 8.2 kg | | Motor | None | | GO-TO Capability | None | | Altitude / Latitude Adjustment | Full 360° rotation on both axes | | Polar Axis Scope | None | | Includes Tripod/Pier | Adjustable-height | | Power Source | None | | Dimensions | 10.2 x 7.0 x 4.1" / 25.8 x 17.8 x 10.4 cm, including control knobs | | Weight | 8.3 lb / 3.8 kg, including counterweight | | | | Package Weight | 9.85 lb | | Box Dimensions (LxWxH) | 12.5 x 10.5 x 7.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 16 owners. Add your rating and experience with the product.
