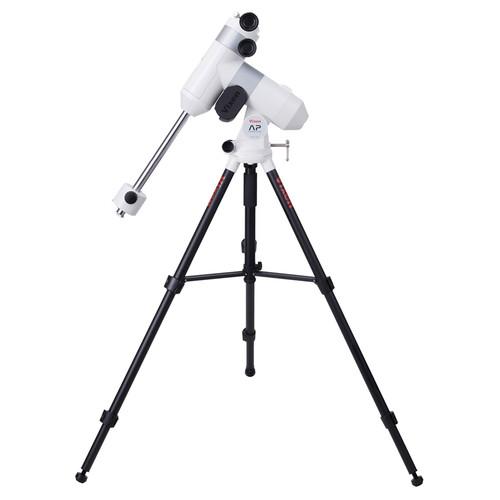

User Manual for Vixen Optics Advanced Polaris-M Motorized EQ Mount with Star Book One and Tripod Click to enlarge the picture
Contents of the user manual for the Vixen Optics Advanced Polaris-M Motorized EQ
- Product category: Mounts Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Mounts
|
User manual for the Vixen Optics Advanced Polaris-M Motorized EQ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description Vixen's Advanced Polaris-M Motorized EQ Mount is an upgrade from the basic AP mount with the addition of a right ascension motor module and the Star Book One hand controller. The micro-stepper motor's full-circle brass wheel gear allows the mount to track over extremely long periods with little error for long-exposure astrophotography or prolonged observation of a single celestial object. While this mount configuration does not have full GoTo capabilities, once you Polar align the mount and manually navigate to your subject, the Star Book One controller will track it across the right ascension all night. This version of the AP-M includes Vixen's TL130 adjustable-height tripod.Use the included Star Book One hand controller to move the scope for navigating and to track celestial objects. Since near- and deep-sky objects appear to move at different speeds, the controller features celestial, solar, lunar, and King's rate tracking speeds, in addition to slew speeds from 0.5x to 999x. An integrated autoguider port adds to the mount's usability. - Mount
-
- Motorized German equatorial
- Payload capacity: 13.2 pounds, excluding counterweights
- Altitude:
- 0-65° adjustment
- Tangent screw with handle
- 1.9°/rotation
- 59mm diameter, aluminum-alloy axis shaft with friction stop
- Azimuth:
- ±6.5° fine adjustment
- Twin adjustment screws with knobs
- 1.4°/rotation
- 59mm diameter, aluminum-alloy axis shaft with friction stop
- 7 stainless steel ball bearings
- 8" long, 20mm diameter counterweight shaft
- 2.2 lb (1kg) counterweight
- Vixen-style dovetail saddle
- Runs on four user-supplied AA batteries
- Gears and Motors
-
- Micro-stepping (pulse) motor
- Right ascension:
- 144-tooth full circle wheel gear, 73.5mm diameter
- 11mm brass worm gear
Declination:- 144-tooth full circle wheel gear, 58.4mm diameter
- 9.8mm brass worm gear
- Integrated bubble level
- Clutch-less friction stop
- Star Book One
-
- 2-line, 8-chracter backlit display
- Red backlit keypad
- Independent screen and keypad dimming control
- Integrated red LED light
- Won't affect night-adjusted vision
- Use to read or perform tasks
- Adjustable brightness
- ST-4-compatible integrated autoguider port
- Multiple sidereal tracking speeds:
- Celestial
- Solar
- Lunar
- King's rate
- Variable manual slewing speeds from 0.5x to 999x
- Backlash compensation gives smoother rotation of the gears on the mount, especially when stopping or changing slew/tracking speeds
- Periodic Error Correction (PEC) removes inaccuracies inherent in gears and allows for more accurate tracking, especially for long-exposure astrophotography
- Selectable tracking for Northern or Southern Hemispheres
- Physical specifications:
- Powered by mount through connector port
- Operating temperature: 32-104°F (0-40°C)
- Dimensions: 5.4x2.5x1" (13.7x6.5x2.1cm)
- Weight: 4 oz (110g), excluding cable
- Tripod
-
- Three leg sections
- Easy-to-use snap locks
- Adjustable padded feet
- Collapsed length: 24" (61cm)
- Legs adjustable from 22.4 to 51" (56.9-129.5cm)
- Total adjustable height from 20.7 to 45.6" (52.6-115.8cm)
- Weight: 7 lb (3.2kg)
UPC: 811971017511 In the Box Vixen Optics Advanced Polaris-M Motorized EQ Mount with Star Book One and Tripod Star Book One Hand Controller Star Book Cable APP-TL130 Tripod Counterweight Shaft 2.2 lb Counterweight 2 x Slow Motion Control Knob Screwdriver Allen Wrench Set Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics Advanced Polaris-M Motorized EQ Mount with Star Book One and Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics 39973TL130 Specs | Mount Type | German equatorial | | Payload Capacity | 13.2 lb / 6.0 kg | | Motor | Stepping (pulse) motor | | GO-TO Capability | No | | Altitude / Latitude Adjustment | Altitude: 0 - 65°
Latitude: ±6.5° | | Polar Axis Scope | None | | Includes Tripod/Pier | Adjustable-height tripod | | Power Source | 4 x AA batteries | | Counterweights | 1 x 2.2 lb / 1.0 kg | | Dimensions | 12.2 x 10.8 x 3.8" / 31.0 x 27.4 x 9.6 cm | | Weight | 8.5 lb / 3.9 kg, excluding counterweights | | | | Package Weight | 23.95 lb | | Box Dimensions (LxWxH) | 25.5 x 17.0 x 13.75" |
