User Manual for Vixen Optics AP Advanced Polaris EQ Mount with Tripod Click to enlarge the picture
Contents of the user manual for the Vixen Optics AP Advanced Polaris EQ
- Product category: Mounts Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Mounts
|
User manual for the Vixen Optics AP Advanced Polaris EQ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|

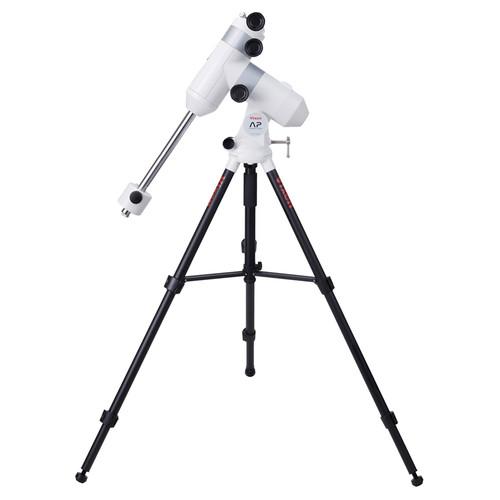

Product description Designed as a basic equatorial mount for beginners or as a simple grab-and-go option for more experienced enthusiasts, Vixen Optics' AP Advanced Polaris EQ Mount is engineered to customized as your needs demand. Offered here in its bare-bones configuration, it will serve well as a conventional equatorial mount with competent 13.2-pound payload capacity, adjustment dials for the altitude and azimuth axes, and a counterweight and shaft. A clutch-less friction-control system allows the mount to be quickly moved to your target by simply pointing the optical tube assembly (OTA) where you want it with your hands.Intended as a complete observational platform, Vixen includes their APP-TL130 adjustable-height tripod that has an adjustable height from 20.7-45.6" to accommodate an array of users and a variety of OTA styles and sizes. An array of optional accessories is available separately so you can tailor the mount to your specific needs. Accessories include a right ascension motor and Star Book One hand controller kit, declination motor, polar alignment scope, and polar meter. - Mount
-
- Equatorial mount with optional accessories for customization
- 13.2-pound payload capacity, without counterweight
- Azimuth adjustment range:
- ±6.5°
- 1.4° per rotation
- Dual adjustment screws with knobs
- Altitude adjustment range:
- 0-65°
- 1.9° per rotation
- Tangent screw with handle
- 20mm steel counterweight bar
- 2.2lb (1kg) counterweight
- Gears
-
- 360° micro movement on both axes
- Worm gear:
- Right ascension: 11.0mm diameter, brass
- Declination: 9.8mm diameter, brass
- Worm wheel:
- R.A: 73.5mm diameter, 144-tooth wheel gear
- Dec: 58.4mm diameter, 144-tooth wheel gear
- Friction break with adjustable tension on both axes
- Tripod
-
- Three leg sections
- Collapsed length: 24"
- Min leg length: 22.4"
- Max leg length: 51"
- Adjustable height of 20.7-45.6"
- Weight: 7 pounds
- Compatibility: Vixen Porta II mount, GP Mount, and fork mount
UPC: 811971017382 In the Box Vixen Optics AP Advanced Polaris EQ Mount with Tripod Counterweight Bar 2.2lb Counterweight 4mm Allen Wrench 3mm Allen Wrench 21 x Slow Motion Control Knob APP-TL130 Tripod Limited Five-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics AP Advanced Polaris EQ Mount with Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics 39972TL130 Specs | Mount Type | Manual equatorial | | Load Capacity | 13.2 lb / 6.0 kg | | Motor | None | | GO-TO Capability | None | | Altitude / Latitude Adjustment | Altitude: 0 - 65°
Azimuth: ±6.5° | | Polar Axis Scope | None | | Includes Tripod/Pier | Three leg sections
Adjustable height from 20.7 - 45.6" / 52.6 - 133.6 cm
Collapsed length: 24.0" / 61.0 cm
Min leg length: 22.4" / 57.2 cm
Max leg length: 51.0" / 129.5 cm | | Power Source | None | | Dimensions | Head: 11.9 x 10.4 x 3.8" / 30.2 x 26.3 x 9.6 cm | | Weight | Head: 7.9 lb / 3.6 kg, without counterweight
Tripod: 7.0 lb / 3.2 kg |
