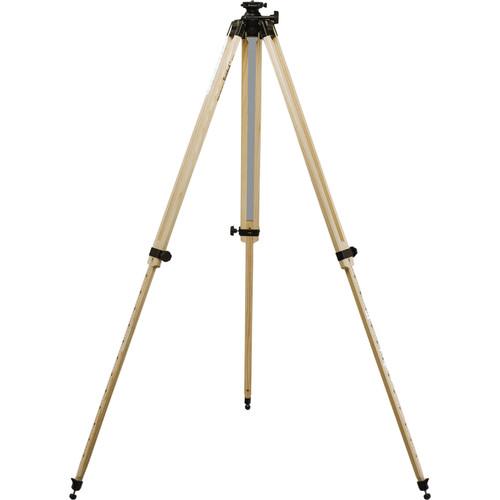

User Manual for Vixen Optics Berlebach Report 332 Ash Wood Tripod Click to enlarge the picture
Contents of the user manual for the Vixen Optics Berlebach Report 332 Ash
- Product category: Tripod Legs Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Tripod Legs
|
User manual for the Vixen Optics Berlebach Report 332 Ash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description The Report 332 Ash Wood Tripod from Berlebach is a camera and optic support constructed from solid ash wood in order to improve its vibration dampening ability.
As a member of the Report series the 332 has been designed with a magnesium mounting head which, along with an included key, allows the user to choose between 10 different center inserts to fit their specific needs. The 332 includes the module insert #3 which features a leveling ball with a diameter of 2.1" and a pivoting range of 30° in all directions. Although capable of supporting a wide variety of equipment, the #3 module is particularly suitable for heavy equipment due to its highly stable design and low center of gravity. A spirit level has also been integrated into the leveling ball's base-plate to ensure precise centering when required.
Designed for use in the field or studio, the 332 can reach a minimum height of just 3" but can also be extended to a max height of 56". Each 2-section leg features a versatile 5-angle leg lock allowing the legs to rest independently at either a 20, 40, 60, 80, or 100° angle while maintaining the tripod's ability to support a maximum load of up to 26.4 lb.
When folded, the 332 collapses down to 35" for storage and weighs just 7.1 lb, making it easy to carry over short distances. Additionally, the tripod features such extras as durable rubber feet and a second, single-axis spirit level integrated into the tripod's base. In the Box Vixen Optics Berlebach Report 332 Ash Wood Tripod Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics Berlebach Report 332 Ash Wood Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics B12032 Specs | Maximum Height | 56" (142.2 cm) | | Minimum Height | 3" (7.6 cm) | | Folded Length | 35" (88.9 cm) | | Load Capacity | 26.4 lb (12 kg) | | Leg Sections | 2 | | Leg Angles | 20, 40, 60, 80, 100° | | Feet | Rubber | | Leg Lock Type | Knob | | Bubble Level | Yes, 2 | | Male Thread Size | 1/4"-20 | | Weight | 7.1 lb (3.1 kg) | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 37.0 x 37.0 x 6.0" |
