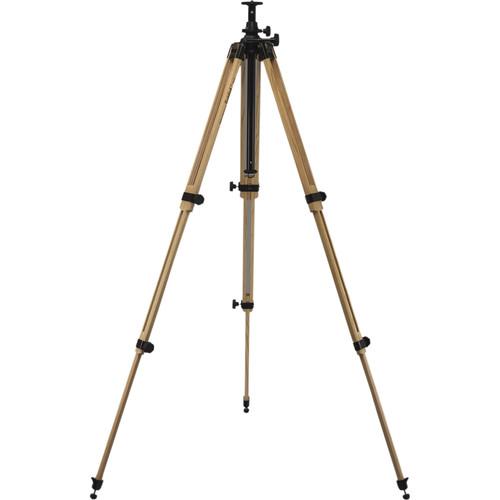

User Manual for Vixen Optics Berlebach Report 843 Ash Wood Tripod Click to enlarge the picture
Contents of the user manual for the Vixen Optics Berlebach Report 843 Ash
- Product category: Tripod Legs Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Tripod Legs
|
User manual for the Vixen Optics Berlebach Report 843 Ash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description The Report 843 Ash Wood Tripod from Berlebach is a camera and optic support constructed from solid ash wood in order to improve it's vibration dampening ability.
As a member of the Report series the 843 has been designed with a magnesium mounting head which, along with an included key, allows the user to choose between 10 different center inserts to fit their specific needs. The 843 includes the module insert #4 which features a 19.6" rapid center column seated within a leveling ball. Unlocking the leveling ball allows the user to tilt the column 30° in all directions and, once set, the entire ball and column can be rotated 360°. A spirit level has also been integrated into the center column's base-plate to ensure precise centering when required.
Designed for use in the field or studio, the 843 can reach a minimum height of just 21" but can also be extended to a max height of 70" including the center column. Each 3-section leg features a versatile 5-angle leg lock allowing the legs to rest independently at either a 20, 40, 60, 80, or 100° angle while maintaining the tripod's ability to support a maximum load of up to 19.8 lb.
When folded, the 843 collapses down to 28" for storage and weighs just 6.4 lb, making it easy to carry over short distances. Additionally, the tripod features such extras as durable rubber feet and a second, single-axis spirit level integrated into the tripod's base. In the Box Vixen Optics Berlebach Report 843 Ash Wood Tripod Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics Berlebach Report 843 Ash Wood Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics B22041 Specs | Maximum Height | 70" (177.8 cm) | | Minimum Height | 21" (53.3 cm) | | Folded Length | 28" (71.1 cm) | | Load Capacity | 19.8 lb (8.9 kg) | | Leg Sections | 3 | | Leg Angles | 20, 40, 60, 80, 100° | | Feet | Rubber | | Leg Lock Type | Knob | | Bubble Level | Yes, 2 | | Male Thread Size | 1/4"-20 | | Weight | 6.4 lb (2.9 kg) |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
