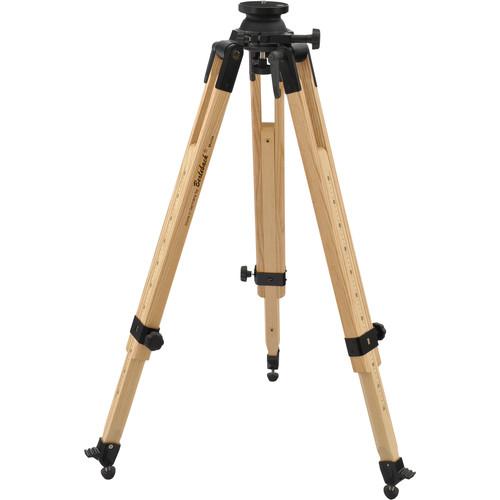

User Manual for Vixen Optics Berlebach UNI 16 Ash Wood Tripod Click to enlarge the picture
Contents of the user manual for the Vixen Optics Berlebach UNI 16 Ash
- Product category: Tripod Legs Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Tripod Legs
|
User manual for the Vixen Optics Berlebach UNI 16 Ash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description The UNI 16 Ash Wood Tripod from Berlebach is a camera and optic support constructed from solid ash wood in order to improve its vibration dampening ability.
As a member of the UNI series, the UNI 16 has been designed with a set of versatile stop-less leg locks which allow each leg to be set at any angle from 0° to approximately 100°. This action is accomplished via ratcheting handles which are located at the top of each leg next to the tripod's collar. Although the capacity of the tripod may vary depending on the angles set for each leg, the load capacity of 77.2 lb was measured while each leg was set at approximately 20°. Additionally, the UNI 16 is capable of standing at a maximum height of 54" and, with the legs set to their widest angle, may be lowered to a minimum height of just 5".
The second special feature of the UNI 16 is the unique leveling ball which has been seamlessly integrated into the tripod's collar. Featuring a baseplate diameter of 3.9" and a pivoting range of 30°, the leveling base is particularly suitable for heavy equipment due to its highly stable design and low center of gravity. A spirit level has also been integrated into the leveling ball's base-plate to ensure precise centering when required.
When folded, the UNI 16 collapses down to 37" for storage and weighs just 14.7 lb, making it easy to carry over short distances. The tripod also features durable rubber feet and a 3/8"-16 mounting thread. UPC: 811971018822 In the Box Vixen Optics Berlebach UNI 16 Ash Wood Tripod Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics Berlebach UNI 16 Ash Wood Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics B11080 Specs | Maximum Height | 54" (137 cm) | | Minimum Height | 5" (12.7 cm) | | Folded Length | 37" (93.9 cm) | | Load Capacity | 77.2 lb (35 kg) | | Leveling Adjustment | +/-30° | | Leg Sections | 2 | | Leg Angles | Variable | | Feet | Rubber | | Leg Lock Type | Knob | | Bubble Level | Yes | | Male Thread Size | 3/8"-16 | | Weight | 14.7 lb (6.6 kg) | | | | Package Weight | 19.0 lb | | Box Dimensions (LxWxH) | 41.0 x 9.0 x 9.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 87 owners. Add your rating and experience with the product.
