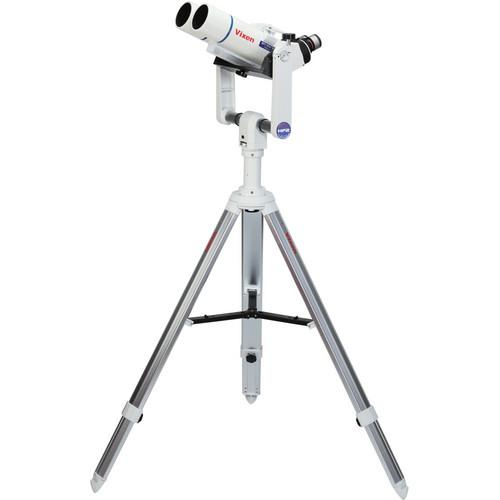

User Manual for Vixen Optics BT-ED 70mm Binocular Telescope Kit Click to enlarge the picture
Contents of the user manual for the Vixen Optics BT-ED 70mm Binocular Telescope
- Product category: Binoculars Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Binoculars
|
User manual for the Vixen Optics BT-ED 70mm Binocular Telescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More bbcedyzr The BT-ED 70mm Binocular Telescope Kit from Vixen Optics is a complete telescope kit to use for terrestrial or astronomical observation. This kit is comprised of the BT-ED70S-A binocular, two eyepieces, the HAL-130 SX aluminum tripod, and an altazimuth fork mount.ED Apochromatic fully multicoated - BT-ED70S-A Binocular
-
- 70mm Objective lenses
- 400mm focal length
- Apochromatic ED glass lens system with multilayer anti-reflective lens coating
- 1.25" eyepiece mounts accommodate most astronomy eyepieces and Vixen's LV and LVW series eyepieces
- Limiting stellar magnitude: 11.0
- Individual eyepiece focusing allows superior clarity for any viewer
- SX HAL-130 Tripod
-
- Aluminum 2-piece adjustable legs
- Adjustable height from 25 to 39"
- 56" maximum leg spread diameter
- 32" folded length
- 77 lb payload capacity
- 11 lb weight
- Altazimuth Fork Mount
-
- Includes fork mount, half pillar and swing bracket
- Maximum loading weight of 29 lb
- Friction control system
- Weight: 8 lb
- Adjustable angle for terrestrial or astronomical viewing
- Cast aluminum with pwder coat finish
- 1.25" NLV Lanthanum Eyepieces
-
- 25mm focal length
- 20mm eye relief
- 50° apparent field of view
- Fully multicoated optics
- Twist-up eyecups
- 16x magnification when used with the BT-ED70S-A Binocular
In the Box Vixen Optics BT-ED 70mm Binocular Telescope Kit Adjustable Height Tripod 2 x 1.25" 25mm Eyepieces Altazimuth Fork Mount Swing Bracket Limited Lifetime Warranty (Transferable) Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics BT-ED 70mm Binocular Telescope Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics BT-ED Specs | Prism Type | Porro | | Magnification | 16 x | | Objective Lens Diameter | 70 mm | | Angle of View | 50° (Apparent) | | Eye Relief | 20 mm | | Interpupillary Adjustment | 9 to 15.8 mm / 0.4 to .6" | | Dioptric Correction | None | | Focus Type | Individual | | Tripod Mount | Yes (Adapter Included) | | Dimensions | 15.8 x 7.5 x 6.0" / 40.0 x 19.0 x 15.2 cm | | Weight | 8.8 lb / 4.0 kg | | | | Package Weight | 16.65 lb | | Box Dimensions (LxWxH) | 29.0 x 13.0 x 12.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 37 owners. Add your rating and experience with the product.
