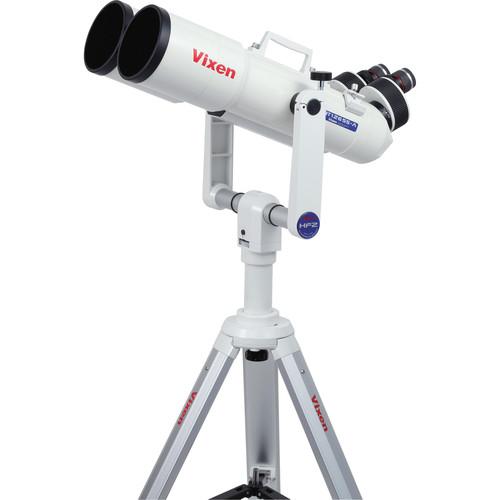

User Manual for Vixen Optics BT126SS-A Binocular Telescope with Alt-Az Mount and Tripod Click to enlarge the picture
Contents of the user manual for the Vixen Optics BT126SS-A Binocular Telescope with
- Product category: Binoculars Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Binoculars
|
User manual for the Vixen Optics BT126SS-A Binocular Telescope with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Vixen Optics gives you a complete observational rig with the BT126SS-A Binocular Telescope with Alt-Az Mount and Tripod. The BT126SS binocular telescope features achromatic glass lenses combined with anti-reflection fully multicoated optics that maximize light transmission while virtually eliminating chromatic and spherical aberration. Views through the telescope are bright and clear with true color rendition, and objects can be brought into sharp focus without comas or halos. Two 25mm eyepieces are included that produce 25x magnification. Each ocular is individually focused for precise pin-point views for every user.The binocular design with the eyepieces set at a 45° angle makes long observation sessions comfortable. Viewing with both eyes open eliminates the fatigue normally associated with holding one eye closed, as with traditional telescopes. Similarly, the angled oculars are more comfortable, especially when the scope is aimed at or near the zenith. With both eyes open, true stereoscopic vision is maintained providing a rich depth of field rarely experienced during astronomy sessions.A manual alt-az mount is specifically designed for Vixen binocular telescopes and provides an easy way to find and track near and deep sky objects, or more earth-bound subjects, without excessive shake. Rounding out the platform is an adjustable-height aluminum tripod. With a minimum height of 25" and a maximum of 39", observers of most sizes can comfortably use this telescope standing up or sitting down. - BT126SS-A 126mm f/5 Binocular Telescope Vixen Optics' BT126SS-A 126mm f/5 Binocular Telescope features achromatic glass lenses and two 1.25" eyepiece holders that allow the observer to equip the optic with a wide range of astronomy eyepieces and enjoy a unique celestial or terrestrial observing experience. The achromatic lenses combined with anti-reflection fully multicoated optics maximize light transmission while virtually eliminating chromatic and spherical aberration. Views through the telescope are bright and clear with true color rendition, and objects can be brought into sharp focus without comas or halos.The binocular design with the eyepieces set at a 45° angle makes long observation sessions comfortable. Viewing with both eyes open eliminates the fatigue normally associated with holding one eye closed, as with traditional telescopes; and the angled oculars are more comfortable, especially when the scope is aimed at or near the zenith. With both eyes open, true stereoscopic vision is maintained providing a rich depth of field rarely experienced during astronomy sessions. The dual optical tubes also enable the use of astrophotography/astroimaging equipment on one ocular while providing a perfectly-aligned guide scope. Views through the scope are corrected horizontally and vertically to enable its use as a powerful terrestrial observation platform as well. Each eyepiece is individually focused, providing superior clarity versus binoculars with center-focus systems.
- Optical Performance
-
- 126mm objective lenses
- 625mm focal length
- f/5.0 focal ratio
- Anti-reflective multicoated optics
- Binocular viewing increases depth of field while reducing eye fatigue
- Achromatic glass lens system limits or eliminates chromatic and spherical aberration to produce nearly perfectly rendered colors without comas or halos
- Erect-image viewing for celestial and terrestrial viewing
- Use and Handling
-
- 1.25" eyepiece mounts accepts most astronomy eyepieces
- Push-fit eyepiece holders for fast and easy eyepiece changes
- Eyepiece assembly set at a 45° angle for more comfortable viewing, especially when aimed near or at the zenith
- Individual eyepiece focusing allows superior clarity for any viewer
- Construction Details
-
- Integrated handle provides balanced handling when setting up and disassembling from tripod/mount, and secure carrying point
- Integrated finderscope dovetail bracket
UPC: 811971017320 - HF2 Altazimuth Fork Mount This HF2 Altazimuth Fork Mount from Vixen is an altazimuth mount that's designed for use with large astronomical binoculars. The fork mount can be fixed to most sturdy tripods with a 3/8"-16 mounting-stud, including Vixen's HAL130-GP and HAL130-SX tripods. To complete the assembly, an appropriate swing bracket must be attached to the binocular.
- HAL 130SXG Aluminum Tripod The HAL 130SXG Aluminum Tripod from Vixen Optics is compatible with Vixen's Sphinx and GP telescope mounts. The adjustable height allows the user to set the position of the telescope to their liking for easy and comfortable viewing. The top of the tripod, where the mount attaches, is powder-coated for a durable finish that resists flaking and fading. The tripod is also collapsible for convenient storage and portability.
- 25mm SLV Series 1.25" Eyepiece The 25mm SLV Series 1.25" Eyepiece from Vixen Optics features a 20mm eye relief with a twist-up eyecup for comfortable viewing with or without eyeglasses. Designed with seven elements in four groups, the fully multicoated optics minimizes light reflection for bright and sharp images. Its all-metal body has a 1.25" aluminum barrel, with an anti-roll rubberized grip.
In the Box Bundle Items BT126SS-A 126mm f/5 Binocular Telescope dtbrdbyrdxwuuwvqecsdwvxdaaztqycwyub - Limited Lifetime Warranty (Transferable)
HF2 Altazimuth Fork Mount HAL 130SXG Aluminum Tripod 2 x 25mm SLV Series 1.25" Eyepiece Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics BT126SS-A Binocular Telescope with Alt-Az Mount and Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - BT126SS-A 126mm f/5 Binocular Telescope
| Prism Type | Porro | | Objective Lens Diameter | 126 mm | | Interpupillary Adjustment | 558.8 to 1016 mm / 22 to 40" | | Focus Type | Individual | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 24.0 x 14.0 x 7.8" / 61.0 x 35.6 x 19.8 cm | | Weight | 23.00 lb / 10.43 kg | | | | Box Dimensions (LxWxH) | 34.0 x 17.0 x 13.0" | - HF2 Altazimuth Fork Mount
| | | Box Dimensions (LxWxH) | 15.95 x 15.4 x 5.85" | - HAL 130SXG Aluminum Tripod
| Height Adjustment Range | 25 to 39" (64 to 99 cm) | | Maximum Leg Spread | 63.5" (161 cm) Diameter | | Construction | Aluminum 2-piece adjustable legs | | Folded Length | 32" (81 cm) | | Payload Capacity | 77 lb (35 kg) | | Weight | 12.1 lb (5.5 kg) | - 25mm SLV Series 1.25" Eyepiece
| Focal Length | 25 mm | | Eye Relief | 20 mm | | Apparent Field of View | 50° | | Elements/Groups | 7 elements / 4 groups | | Barrel Diameter | 1.25" | | Weight | 5 oz (141.8 g) | | | | Box Dimensions (LxWxH) | 3.701 x 2.047 x 2.047" |
