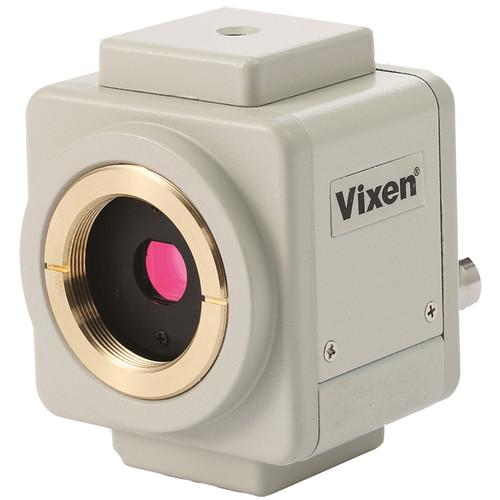

Product description Eyepiece Imagers: Capture the Universe and Share, Tweet, or Whatever It Read More Whether you're looking for greater tracking precision or to capture images for stacking and filtering, Vixen Optics' Color CCD Video Camera gives you the capability in a compact package. For autoguiding, it works seamlessly with Vixen's StarBook 10 Advanced Unit and allows you to auto-calibrate your mount quickly and easily for accurate tracking compensation. To capture images through your OTA, the camera can also be used on Vixen's flip mirror system by using an optional T-ring adapter for its C-threads. - Performance
-
- 1/3" color CCD imaging sensor
- Number of effective pixels: 410,000
- Resolution: 540 TV lines
- Internal sync system
- Minimum illumination:
- Color: 0.012 Lux, f/1.2
- B/W: 0.0014 Lux, f/1.2
- 50db, minimum, Signal-to-Noise ratio
- BNC video-out terminal with RCA adapter and cable
- Functions
-
- White balance
- Auto-tracking White Balance (ATW): Even if there is no white in the scene the correct colors will be displayed
- Automatic White Balance Control (AWC): Uses a factory-preset white standard to which it constantly adjusts as lighting conditions change
- Auto sharpness
- Selectable Automatic Gain Control (AGC)
- Back Light Compensation (BLC) improves image quality where extreme lighting conditions exist in same view
- Image flip to correct subject orientation
- Digital zoom
In the Box Vixen Optics Color CCD Video Camera AC adapter RCA cord BNC-RCA Conversion Plug Polarity Conversion Code IR-Cut External Switch Code Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics Color CCD Video Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics 33801 Specs | Imaging Sensor | 1/3" color CCD | | Resolution | 540 TVL | | Shutter Speed | Auto: 1/60 to 1/120,000 sec
Fixed: 1/60 to 1/10000 sec | | Minimum Illumination | Color: 0.012 Lux, f/1.2
B/W: 0.0014 Lux, f/1.2 | | Signal to Noise Ratio | 58 dB, minimum | | Mount | C/CS | | Output | 1 x BNC terminal | | Power Requirements | 12 VDC, 150 mA | | Dimensions | 2.6 x 2.0 x 1.8" / 6.5 x 5.1 x 4.5 cm | | Weight | 8.6 oz / 245.0 g | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 8.3 x 6.6 x 3.1" |
