User Manual for Vixen Optics DG-NLV DX Digiscoping Adapter Click to enlarge the picture
Contents of the user manual for the Vixen Optics DG-NLV DX Digiscoping Adapter
- Product category: Astrophotography Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Astrophotography
 |
User manual for the Vixen Optics DG-NLV DX Digiscoping Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|

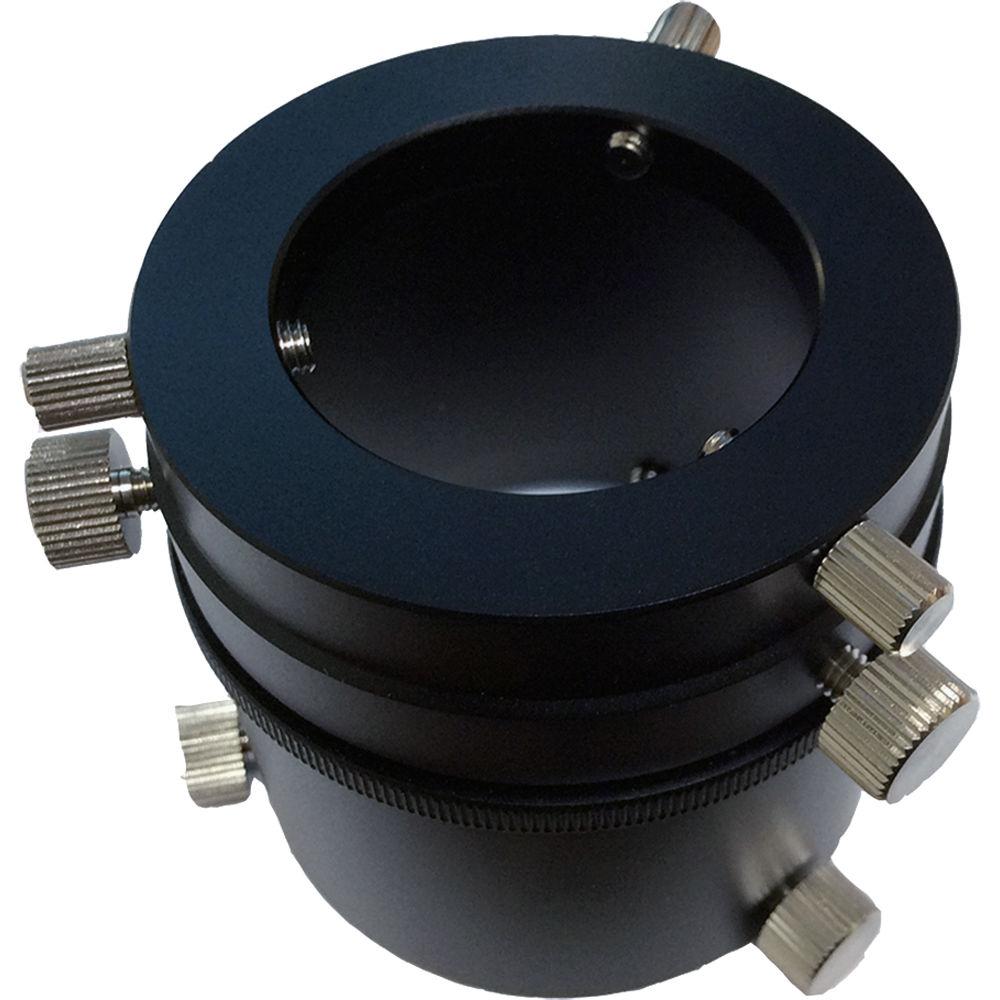

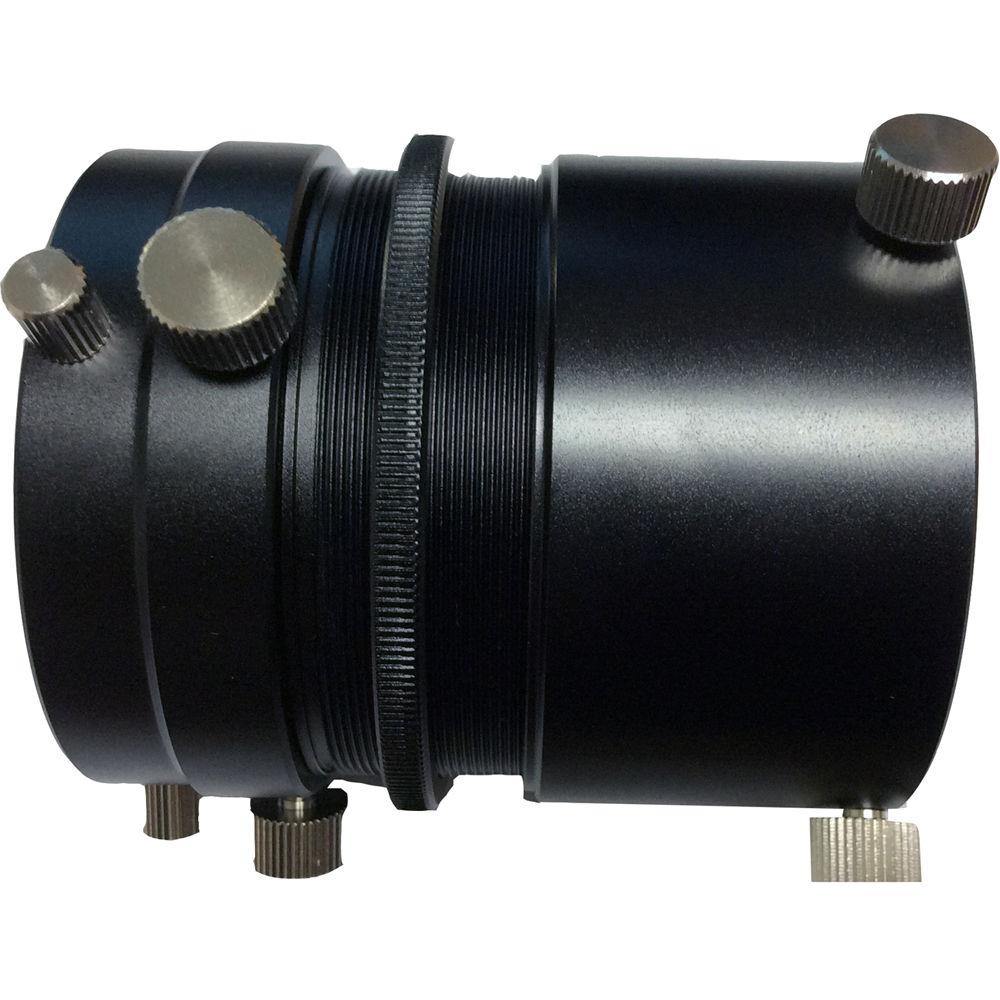

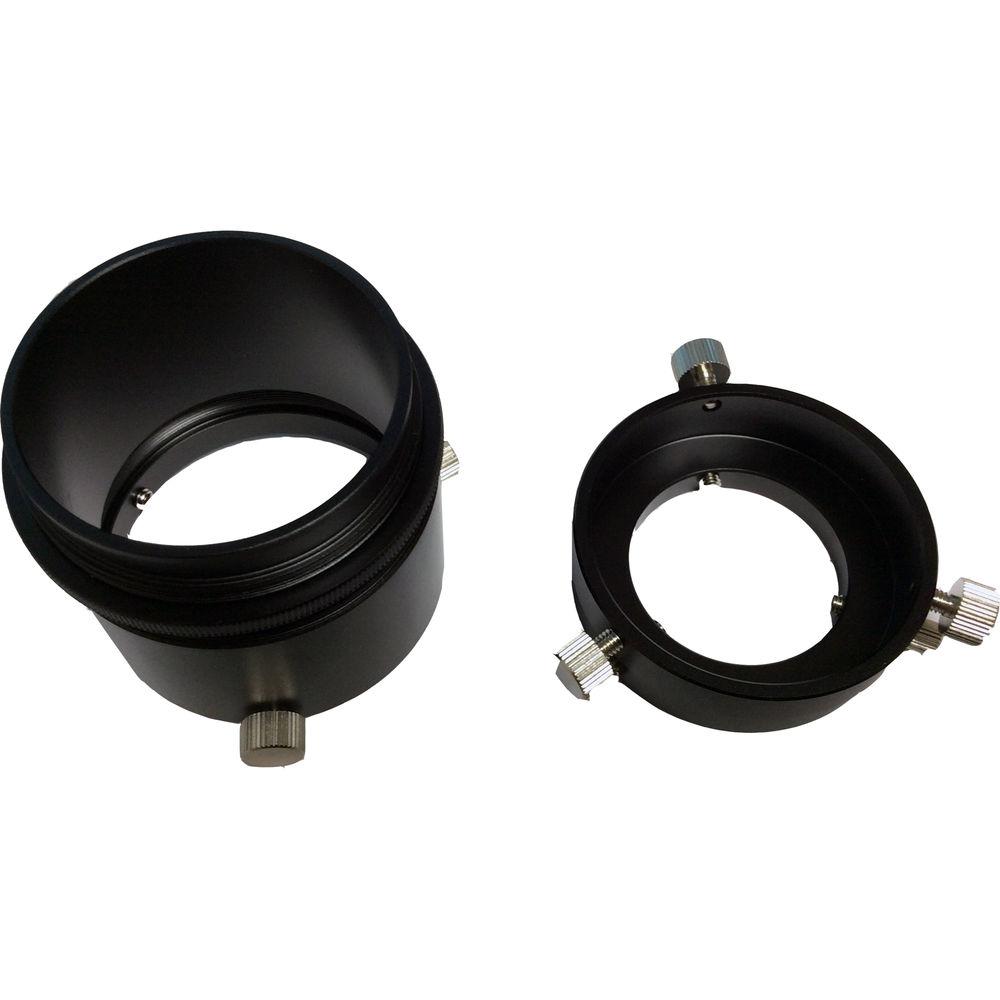

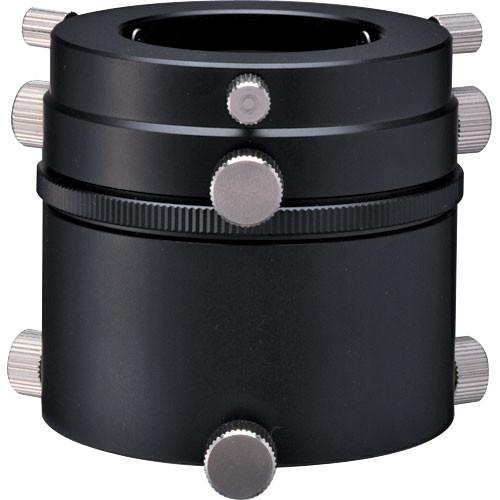

Product description The Vixen DG-NLV DX Digital Camera Adapter allows you to use your point & shoot digital camera to capture collimated light images projected from your telescope/eyepiece combination. Your camera must have filter threads (or an accessory hood/adapter which allows filter threads) that are 28, 37, 43, or 52mm diameter. Although other eyepieces may work depending upon their dimensions, this device is only specifically guaranteed to work with Vixen 1.25" NLV/LV/PL/NPL series eyepieces between 2.5-25mm. Just as when capturing collimated light imaging via 'digiscoping' with a digital point & shoot and spotting scope, the net magnification levels can become very extreme-so as a general rule, it is best to use a longer focal length eyepiece to help minimize the magnification and allow more light in to the digital camera. In the case of the Vixen R200SS Newtonian reflector, this camera adapter will attach directly to the telescope's focuser barrel and you'll then 'sandwich' a Vixen NLV or LV series eyepiece within the adapter. Add the specific DG DX Ring which matches your camera's filter size (they come in 28, 37, 43, & 52mm) to your camera, and you can then affix your point and shoot camera with the DG DX Ring in place to the back of this adapter. Most Vixen telescopes except the R200SS are generally supplied with a 42mm-to-31.7mm (1.25") adapter. In those cases, you leave that adapter in place and attach this DG-NLV DX adapter to the rear of the 42mm-31.7mm (1.25") adapter, with a Vixen 1.25" NLV or LV eyepiece within the DG-NLV DX adapter. Just as with the R200SS, you then affix a DG DX ring to your camera's filter threads and then attach the camera to the rear of this DG-NLV DX adapter. - Allows collimated light digiscoping with Vixen LV, NLV, PL, and NPL 1.25" (31.7mm) eyepieces between 2.5mm-25mm
- Requires filter-size-specific Vixen DG DX Ring (28mm, 37mm, 43mm, or 52mm)
- Exceptionally well machined
In the Box Vixen Optics DG-NLV DX Digiscoping Adapter Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics DG-NLV DX Digiscoping Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics 37221 Specs | Dimensions | 2.4 x 2.2" (62 x 57mm) WxL | | Weight | 0.34 lb (153 g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 3.0 x 3.0 x 2.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
