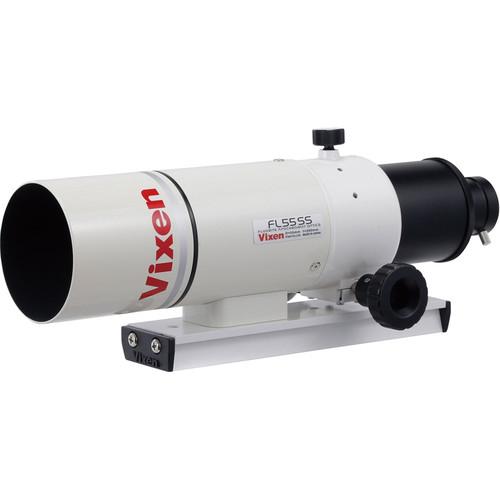

User Manual for Vixen Optics FL55ss 55mm f 5.5 Fluorite APO Refractor Telescope Click to enlarge the picture
Contents of the user manual for the Vixen Optics FL55ss 55mm f 5.5
- Product category: Refractors Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Refractors
|
User manual for the Vixen Optics FL55ss 55mm f 5.5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description Designed to deliver outstanding views of the moon and planets, the Vixen Optics FL55ss 55mm f/5.5 Fluorite APO Refractor Telescope is engineered with an array of features that work together to provide performance in a small package.This apochromatic refractor design virtually eliminates chromatic aberrations, and is complemented by the use of extra low-dispersion fluorite glass and broadband fully multi-coatings that maximize light transmission across the entire spectrum and provide improved color correction, especially at the low end of the blue spectrum, and prevents halos with higher contrast. The fast focal ratio makes it ideal for imaging, and its large 44mm imaging circle will cover today's large camera sensors to enable you to capture full frame images without vignetting. With the addition of Vixen's option field flattener and focal reducer, the f/5.5 focal ratio drops to a stunning f/4.3 putting its imaging performance on par with an astrograph. The FL55ss is offered here without a mount or tripod, but comes with an included Vixen-style dovetail bar to make it compatible with the most common size of mount saddle plates. - Optical Tube Assembly
-
- Compact 55mm aperture is ideal for observing and imaging the moon and planets
- Fast f/5.5 focal ratio is ideal for astrophotography with reduced noise on imaging sensors and reduced exposure time versus slower scopes without sacrificing performance
- Refractor-style light path
- Apochromatic doublet lens design virtually eliminates chromatic aberrations
- Extra low-dispersion fluorite glass provides improved color correction when compared to standard ED glass, especially at the low end of blue spectrum, and prevents halos with higher contrast
- Anti-reflection broadband fully multi-coated optics maximize light transmission across the entire visual spectrum while improving contrast and clarity
- Large 44mm imaging circle will completely cover large full-frame imaging sensors without vignetting
- Resolution 2.11 arcsec
- Rack-and-pinion focusing mechanism with 1.25" eyepiece holder
- 60mm, 43mm, and 36.4mm adapter threads for directly attaching accessories like photo adapters
- Mounting
-
- OTA only; mount and tripod required for proper use
- Includes Dovetail Slide Bar to mount on Vixen-style saddles
- Weight: 3.3 pounds
In the Box Vixen Optics FL55ss 55mm f/5.5 Fluorite APO Refractor Telescope (OTA Only) Dovetail Slide Bar (Medium) Extension Tube Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics FL55ss 55mm f 5.5 Fluorite APO Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics FL55ss Specs | | | Optical Design | Apochromatic Doublet Refractor | | Aperture | 55 mm / 2.2" | | Focal Length | 303 mm | | Focal Ratio | f/5.5 | | Resolution | 2.11 Arcsec | | Focuser | Rack-and-Pinion | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | None | | Finderscope | None | | Mounting System | Vixen Style | | Optical Tube Dimensions | 11.1 x 3.1" / 28.2 x 8 cm | | | | Batteries | None | | Adapter | None | | Weight | 3.3 lb / 1.5 kg |
