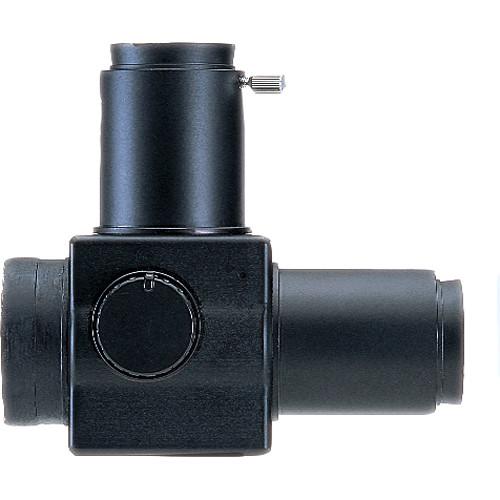

User Manual for Vixen Optics Flip Mirror System Click to enlarge the picture
Contents of the user manual for the Vixen Optics Flip Mirror System
- Product category: Diagonals & Prisms Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Diagonals & Prisms
|
User manual for the Vixen Optics Flip Mirror System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description The Vixen Flip Mirror System has a conventional 1.25" eyepiece adapter in the vertical position, and a second straight-through attachment which lets you directly screw upon an SLR camera T-mount. Also included in the package which adapts the straight-through path to 1.25", so that you can have an eyepiece on both sides or you can shoot perform eyepiece projection adapter with the #3931 SX Camera Adapter. The flip mirror allows speedy switching between viewing from the vertical position or allowing the light to pass straight through the flip mirror to your SLR camera (with or without an eyepiece in the path) attached to the rear. When using the flip mirror for photography, users commonly insert illuminated reticle eyepieces in the vertical position so they can periodically flip the mirror to check that the image isn't drifting during the exposure, and correct for such drift if necessary. - 2" Focuser barrel accepts 49mm filters (use a 49mm to 48mm step-down ring to employ conventional astronomical 48mm filters)
- Each output of flip mirror has 42mm T-mount threading for prime focus photography with SLR cameras (camera-specific T-mount adapter is required)
- Add optional #3931 SX Camera Adapter to straight through path for eyepiece projection photography with SLR cameras (camera-specific T-mount adapter is required)
In the Box Vixen Optics Flip Mirror System Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics Flip Mirror System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics 2680 Specs Dimensions | 2.8 x 4.8 x 5.5" (70 x 122 x 139mm) WxHxD | Weight | 0.66 lb (300 g) | | Package Weight | 0.97 lb | Box Dimensions (LxWxH) | 8.3 x 6.6 x 3.0" |
