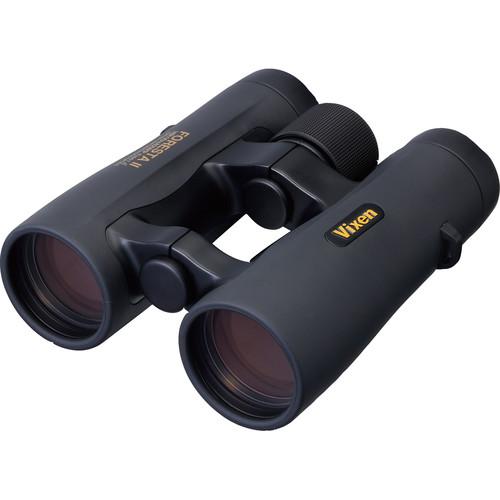

User Manual for Vixen Optics Foresta II ED 10x42 DCF Binocular Click to enlarge the picture
Contents of the user manual for the Vixen Optics Foresta II ED 10x42
- Product category: Binoculars Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Binoculars
|
User manual for the Vixen Optics Foresta II ED 10x42 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Sporting a high magnification, large objectives, extra-low dispersion (ED) glass, and fully multi-coated optical surfaces, the Vixen Optics Foresta II ED 10x42 DCF Binocular delivers bright and sharp high-contrast images with true-to-life color and crisp clarity in all light conditions—from dawn through dusk.To improve overall image quality, Vixen utilizes phase-corrected coatings on the prisms and ED glass lenses. The glass and coatings ensure views remain bright and clear and improve color rendition and contrast while limiting distortion and internal interference. The roof prism optical path keeps the form factor compact so the binocular will be comfortable to carry and use all day on the trail, while an exceptional angle of view helps to reduce the appearance of distracting hand shake that is often associated with powerful optics. All of these features work together to present you with a comfortable and immersive observational experience during long days out in the field.Designed to withstand the rigors of the trail, the optical tubes are nitrogen filled and O-ring sealed to make them waterproof and resistant to internal fogging when moving through extreme temperature variations. The chassis is made from an aluminum alloy to make it lightweight and corrosion resistant without sacrificing strength and stability. To further cut weight while providing you with more area to grip, Vixen employs an open-bridge configuration with a dual hinge. An oversized, knurled center focusing wheel allows for sharp focusing even while wearing gloves. For long-duration glassing sessions, or to reduce fatigue and visible hand shake that are common with high magnifications, the Foresta II ED can be mounted on a tripod or other support system using an optional adapter. - Optical Performance
-
- High 10x power allows detailed observations of distant subjects
- 42mm objectives boost low-light capabilities without adding excessive bulk and weight
- Compact roof prism light path ensures the optical tubes are thin to fit more comfortably in the hand
- BAK4 prism glass delivers a round exit pupil and a crisp and clear image with limited edge distortion
- Extra-low dispersion (ED) glass lens elements reduce chromatic and spherical aberrations for increased contrast, improved color rendition, and sharpness without distortion across the entire field of view
- Phase-corrected prism coatings reduce internal interference to improve contrast, clarity, and resolution
- Anti-reflection fully multi-coated optical surfaces maximize light transmission to ensure views are bright and clear in all conditions
- Exceptional 70° apparent angle of view helps to reduce the appearance of distracting hand shake that is common when holding high-power optics, while presenting an immersive observational experience
- 368-foot field of view at 1000 yards
- Use and Handling
-
- Open-bridge/dual-hinge configuration reduces weight without sacrificing strength or stability
- Large slip-resistant center focusing wheel is easy to manipulate in cold or wet conditions or when wearing gloves
- Locking right-eye dioptric correction enables tack-sharp images; lift focus wheel to set diopter and push back down to lock it in position
- Twist-up click-stop rubber eyecups for comfortable use with or without eyewear
- Tripod mountable with optional adapter for hands-free use to eliminate vibrations and arm fatigue
- Comfortable 16mm eye relief reduces eyestrain for easier viewing
- 4.2mm exit pupil will cover most pupils as they open and dilate as light fades to keep the entire scene in view without vignetting
- Construction Details
-
- Bridge design provides more surface area for hands to improve grip security
- Lightweight and durable aluminum-alloy housing
- Rubberized armor exterior protects against bumps and impacts
- Nitrogen filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme changes in temperature and environmental conditions
- Includes soft carrying case and neck strap
- Weight: 24 ounces
In the Box Vixen Optics Foresta II ED 10x42 DCF Binocular Neck Strap Soft Carrying Case Limited 1-Year Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics Foresta II ED 10x42 DCF Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics Foresta II Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 42 mm | | Angle of View | 7.0° (Actual) | | Field of View | 367.5' @ 1000 yd / 122.01 m @ 1000 m | | Minimum Focus Distance | 9.8' / 3 m | | Exit Pupil Diameter | 4.2 mm | | Eye Relief | 16.0 mm | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Weight | 24.0 oz / 680 g | | | | Package Weight | 2.31 lb | | Box Dimensions (LxWxH) | 8.0 x 7.9 x 3.0" |
