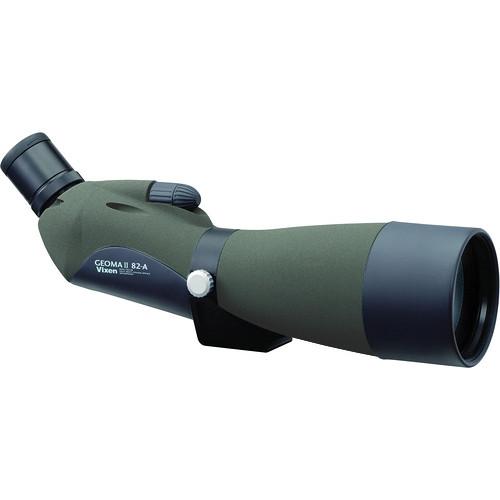

User Manual for Vixen Optics Geoma II 21-63x82 Spotting Scope Click to enlarge the picture
Contents of the user manual for the Vixen Optics Geoma II 21-63x82 Spotting
- Product category: Spotting Scopes Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Spotting Scopes
|
User manual for the Vixen Optics Geoma II 21-63x82 Spotting contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More The Geoma II 21-63x82 Spotting Scope from Vixen features a large 82mm objective lens and a 21-63x zoom eyepiece. This configuration of large objective and eyepiece yields an average field of view across the zoom range, with a very respectable 19mm of eye relief. This particular Geoma II offers 45° viewing, and the housing rotates in its tripod mounting collar for ease of long-term or shared viewing comfort.The Geoma II features a sealed fiberglass housing that is filled with dry nitrogen for water and fogproof performance in spite of fluctuating temperatures and dynamic climates. The retractable sunshade can be used to block stray light or to minimize water-droplet buildup on the objective.The Geoma II's handling and performance are quite remarkable: A dual-focus system enables rapid zone focus, along with precision fine focus. This makes getting on-target fast and effortless, while offering enhanced focusing. With its sophisticated and superior optical design and precision-ground multi-coated lenses, the Geoma II delivers crystal-clear views and high-resolution imagery. - Optical Performance
-
- Interchangeable eyepieces offer enhanced versatility
- Traditional Porro prism design offers maximum image quality and durability
- Full multi-coating on all air-to-glass surfaces for enhanced viewing capability
- Zoom eyepiece GLH48T with long eye relief, twist-up eyecup, 21-63x magnification
- Use and Handling
-
- Angled viewing
- Built-in finderscope for quick target acquisition
- Dual focusing dials offer rapid rough and fine focus
- Tripod block with rotation mechanism offers multiple viewing angles
- Construction Details
-
- Integral retractable lens shade minimizes off-axis stray light to improve contrast
- Sealed fiberglass housing is nitrogen filled for total water and fogproof performance
In the Box Vixen Optics Geoma II 21-63x82 Spotting Scope (Angled Viewing) GLH48T Zoom Spotting Scope Eyepiece btbuqtceffbw Objective Cap Ocular Cap Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics Geoma II 21-63x82 Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics 82-A Specs | | | Magnification | 21 to 63x | | Objective Lens Diameter | 82 mm | | Angle of View | 21x: 1.8° (Actual)
63x: 0.8° (Actual) | | Field of View | 21x: 94.0' @ 1000 yd / 31.0 m @ 1000 m
63x: 42.0' @ 1000 yd / 14.0 m @ 1000 m | | Minimum Focus Distance | 21x: 49.0' / 15.0 m
63x: 49.0' / 15.0 m | | Exit Pupil Diameter | 21x: 3.9 mm
63x: 1.3 mm | | Eye Relief | 19.0 to 19.0 mm | | | | Fogproof | Yes | | Water Resistance | Waterproof | | | | Package Weight | 3.4 lb | | Box Dimensions (LxWxH) | 17.0 x 6.0 x 4.5" |
