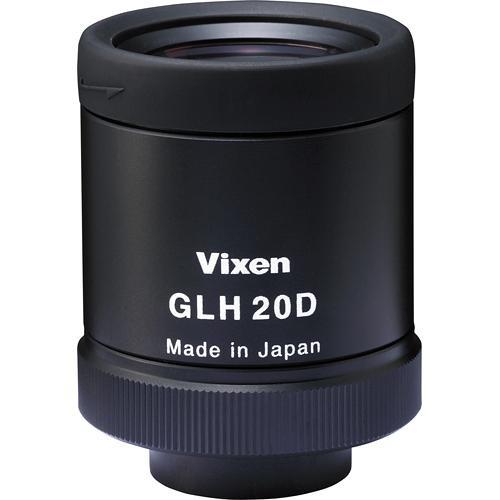

User Manual for Vixen Optics GLH20D 14x 20x 27x Spotting Scope Eyepiece Click to enlarge the picture
Contents of the user manual for the Vixen Optics GLH20D 14x 20x 27x
- Product category: Eyepieces Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Eyepieces
|
User manual for the Vixen Optics GLH20D 14x 20x 27x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description Providing moderate magnification and a sweeping apparent angle of view on the larger bodies, the GLH20D Eyepiece fits Vixen Optics 52mm, 67mm, and 82mm spotting scopes. It yields magnifications of 14x, 20x, and 27x, respectively, and can be easily exchanged in the field with other Vixen eyepieces without disturbing wildlife.The fully multi-coated GLH20D has ample eye relief for digiscoping, using Vixen's dedicated, separately sold accessories. - Fully multi-coated optics
- 46° apparent angle of view on 52mm scope, 72° on 67mm scope, 70° on 82mm scope,
- Moderate magnification levels and long eye relief for digiscoping
In the Box Vixen Optics GLH20D 14x/20x/27x Spotting Scope Eyepiece Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics GLH20D 14x 20x 27x Spotting Scope Eyepiece in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics GLH20D Specs | Magnification | With 52 mm Scopes: 14x
With 67 mm Scopes: 20x
With 82 mm Scopes: 27x | | Angle of View | 3.3° (Actual)
3.6° (Actual)
2.6° (Actual) | | Field of View | With 52 mm Scopes: 173' @ 1000 yd / 58 m @ 1000 m
With 67 mm Scopes: 189' @ 1000 yd / 63 m @ 1000 m
With 82 mm Scopes: 137' @ 1000 yd / 45 m @ 1000 m | | Exit Pupil Diameter | With 52 mm Scopes: 4.7 mm
With 67 mm Scopes: 4.3 mm
With 82 mm Scopes: 4 mm | | Eye Relief | 18.0 mm | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 2.75 x 2.0 x 2.0" |
