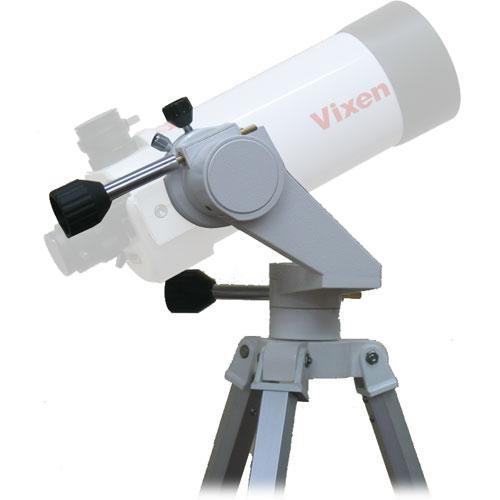

User Manual for Vixen Optics Mini Porta Manual AZ Mount with Tripod Click to enlarge the picture
Contents of the user manual for the Vixen Optics Mini Porta Manual AZ
- Product category: Mounts Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Mounts
|
User manual for the Vixen Optics Mini Porta Manual AZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description Support your smaller optical tube assembly (OTA) with the highly portable and lightweight Vixen Optics Mini Porta Manual AZ Mount. Built with an adjustable-tension friction-control system, there are no clumsy axis locks or clutches to manipulate, so the mount can be easily moved by hand for fast navigation. For more precise movement, the mount has dual-axis slow-motion knobs that allow for easy and smooth tracking. The mount comes with an aluminum tripod that adjusts from 28 to 50" to accommodate a wide variety of users and viewing positions, with a center tray that adds stability to the legs while offering a place for eyepieces, filters, and other accessories. Weighing just 6 pounds including the tripod, but with a payload capacity of 8 pounds, this mount is ideal for smaller OTAs less than 4.7" (11.9cm) in diameter. - Mount
-
- Manual alt-azimuth design
- Dual-axis slow-motion control knobs allow for precision adjustments and tracking with less vibrations
- Smooth 360° rotation on both axes
- Friction-control system: No locks or clutches for fast and easy manual hand adjustments
- Friction-resistant adjustment tools included for precise balancing and smooth movement
- Vixen-style dovetail saddle
- Use of optical tube diameters of less than 4.7" (11.9cm) recommended
- 8-pound (3.6kg) payload capacity
- Tripod
-
- Aluminum legs
- Two leg sections each
- Adjustable height from 28 to 50"
- Spiked feet provide additional stability on rough or soft ground
- Large thumbscrew leg locks are easy to use even while wearing gloves
- Center tray adds stability while offering a place to hold accessories
- Use of optical tube diameters of less than 4.7" (11.9cm) recommended
In the Box Vixen Optics Mini Porta Manual AZ Mount with Tripod Tool Kit 2 x Control Knobs Aluminum Tripod Accessory Tray 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics Mini Porta Manual AZ Mount with Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics Mini PORTA Specs | Mount Type | Manual alt-azimuth | | Load Capacity | 8.0 lb / 3.6 kg | | Motor | None | | GoTo Capability | None | | Altitude / Latitude Adjustment | 360° rotation on both axes | | Polar Axis Scope | None | | Includes Tripod/Pier | Adjustable-height tripod
Adjustable height: 27.6 - 50.4" / 70.0 - 128.0 cm | | Power Source | None | | Weight | 6.0 lb / 2.7 kg, including tripod | | | | Package Weight | 10.2 lb | | Box Dimensions (LxWxH) | 38.0 x 10.0 x 10.0" |
