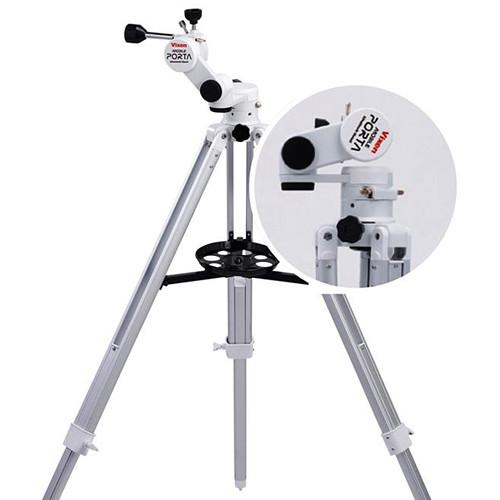

User Manual for Vixen Optics Mobile Porta AZ Mount with Tripod Click to enlarge the picture
Contents of the user manual for the Vixen Optics Mobile Porta AZ Mount
- Product category: Mounts Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Mounts
|
User manual for the Vixen Optics Mobile Porta AZ Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description Equipped with two fine adjustment handles for whole-circle slow-motion control on both axes, the Vixen Mobile Porta AZ Mount comes with a sturdy tripod that adjusts from 28 to 51" to accommodate a wide variety of users and viewing positions. As the name suggests, the Mobile Porta is optimized for travel with a folding fork-arm design and its ease of use helps to minimize the common support-system-oriented frustration often experienced when searching for and tracking celestial objects.It has an 8-pound payload capacity for smaller telescopes like refractors and Maksutov-Cassegrains, and is recommended for optical tube assemblies (OTAs) with a diameter of 119mm (4.6") or less for safe use. Its friction control system allows you to move the mount by hand without fumbling with locks or clutches and stays in place when it's released, and its slow-motion handles enable fine position adjustments while minimizing vibrations. - Optimized for Mobility
-
- Light 8-pound weight
- Arm can be rotated at 15° intervals to avoid having the telescope impeded by the slow-motion handles
- Fork arm folds without the use of tools for easy transport and storage
- Mount
-
- Vixen-style dovetail saddle
- Manual alt-azimuth design
- Dual axis slow-motion handles enable precise adjustment to center subjects
- Friction control system allows the mount to be moved by hand to any position without locks or clutches to worry about
- 360° rotation horizontal wheel gear
- Includes tool kit to adjust friction system based on OTA and accessories being used
- Recommended for 119mm (4.6") and smaller OTAs
- 8-pound payload capacity
- Tripod
-
- Aluminum legs are lightweight and durable
- Compact two-stage legs
- Adjustable height from 28 to 51" (71.1-129.5cm)
- Center tray adds stability while offering a place for eyepieces, filters, and other accessories
In the Box Vixen Optics Mobile Porta AZ Mount with Tripod Tool Kit Accessory Tray 2 x Slow-Motion Handles Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics Mobile Porta AZ Mount with Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics 39901 Specs | Mount Type | Manual alt-azimuth | | Load Capacity | 8.0 lb / 3.6 kg, max | | Motor | None | | GoTo Capability | None | | Altitude / Latitude Adjustment | Not specified by manufacturer | | Polar Axis Scope | None | | Includes Tripod/Pier | Yes, tripod | | Power Source | None | | Weight | 8.0 lb / 3.6 kg | | | | Package Weight | 7.5 lb | | Box Dimensions (LxWxH) | 37.0 x 10.0 x 8.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 05 owners. Add your rating and experience with the product.
