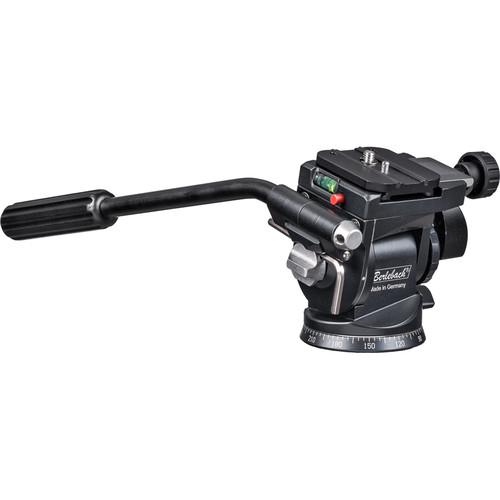

User Manual for Vixen Optics Model 553 Berlebach 2-Way Tilt Head with Quick Release Click to enlarge the picture
Contents of the user manual for the Vixen Optics Model 553 Berlebach 2-Way
- Product category: Tripod Heads Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Tripod Heads
|
User manual for the Vixen Optics Model 553 Berlebach 2-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description The Model 553 Berlebach 2-Way Tilt Head with Quick Release is an Arca-type compatible 2-way pan and tilt head which utilizes friction adjustment to simulate the movement of a traditional fluid head. Capable of supporting up to 13 lb, it can be an ideal choice for those shooting on DSLRs, mirrorless, or mid-size camcorders. As long as the 553 is sitting on a level base, its load capacity and range of motion make it an interesting choice for both still photographers and amateur film makers.
In terms of movement, the 553 is a basic 2-way head capable of both a vertical 90° friction-controlled tilt and 360° panning with an independent lock. Both motions are controlled via a long, video-style, control handle which has been thoughtfully equipped with an adjustment switch to enable "load pick-up" function. This unique feature engages a spring within the 553 which offers greater resistance when tilting, preventing cameras which weigh in excess of 6.6 lb from tilting far enough to strike the tripod collar.
The top of the 553 head is equipped with the model 150 quick release clamp which is designed to accept Arca-type and UniQ camera plates. It features a standard knob-controlled clamp and a push-button safety release which may be used with compatible plates. Additionally, the head features a customizable left or right handed control arm and a built-in bubble level. In the Box Vixen Optics Model 553 Berlebach 2-Way Tilt Head with Quick Release Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics Model 553 Berlebach 2-Way Tilt Head with Quick Release in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics B32015 Specs | | | Head Type | Pan & Tilt Head | | Base Mount | 3/8"-16 Thread | | Quick Release Plate Type | Arca-Type | | Load Capacity | 13 lb / 5.8 kg | | Number of Bubble Levels | 1 | | Friction Control | Yes | | Independent Pan Lock | Yes | | | | Base Diameter | 2.7" / 68 mm | | Weight | 1.8 lb / 0.8 kg |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 63 owners. Add your rating and experience with the product.
