User Manual for Vixen Optics Model 653 Berlebach 3-Way-Tilt Head with Quick Release Click to enlarge the picture
Contents of the user manual for the Vixen Optics Model 653 Berlebach 3-Way-Tilt
- Product category: Tripod Heads Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Tripod Heads
|
User manual for the Vixen Optics Model 653 Berlebach 3-Way-Tilt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|

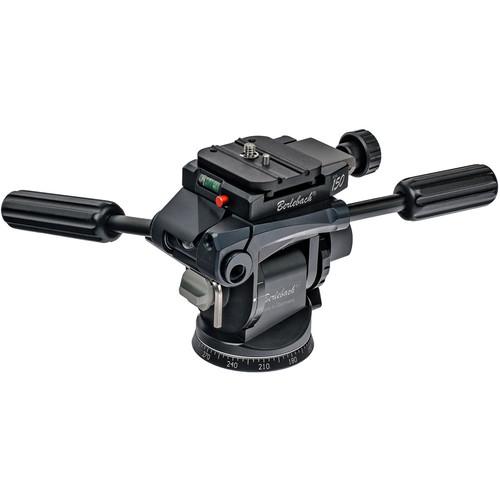

Product description The Model 653 Berlebach 3-Way-Tilt Head with Quick Release from Vixen Optics is a precision tripod head which allows the user to position their camera using 3 axes of adjustment—horizontal, vertical, and 360° rotation.
The Model 653 features a classic 3-way adjustment system which delegates a single locking arm to controlling each of the head's axes of adjustment. The two large and primary arms allow the user to level their camera to the horizon or position it along a tilt range which spans from 0 to 90°. The third lock on the base allows the user to rotate their camera 360° and, with the use of an engraved degree scale, precisely control their movements for tasks like panoramic photography. Additionally, the Model 653 has been developed to compliment your tripod legs without weighing them down; it features a weight of just 2.2 lb but is capable of holding up to an impressive 13 lb of solid camera gear.
The top of the head features a Model 150 quick release clamp which accepts quick release plates built to the Arca-type or UniQ-C standard. The clamp is also removable should the user want to replace it with Berlebach's P101 or P103 Panorama plates or with the Model 130 quick release clamp. The included Model 150 clamp features a simple knob for locking and releasing the QR plate and also includes a safety release to prevent accidental plate slips.
The Model 653 includes one quick release plate which features a 1/4"-20 mounting screw and two integrated spirit levels for straightening your camera's horizons. In the Box Vixen Optics Model 653 Berlebach 3-Way-Tilt Head with Quick Release Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics Model 653 Berlebach 3-Way-Tilt Head with Quick Release in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics B32014 Specs | | | Head Type | Pan & Tilt Head | | Quick Release Plate Type | Arca-Type | | Load Capacity | 13 lb / 6 kg | | Number of Bubble Levels | 2 | | Friction Control | Yes | | Independent Pan Lock | Yes | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 14.2 x 6.2 x 5.2" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
