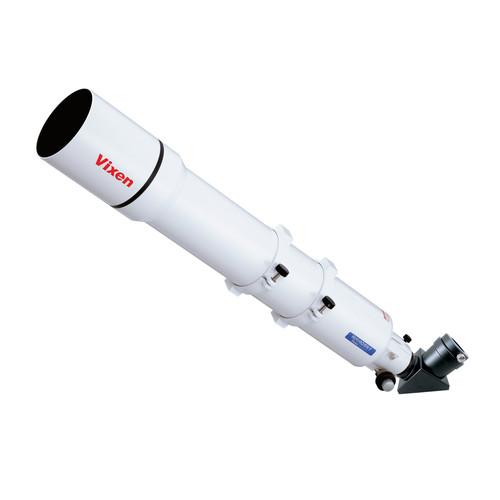

User Manual for Vixen Optics NA140SS Neo Achro 140mm f 6 Refractor Telescope Click to enlarge the picture
Contents of the user manual for the Vixen Optics NA140SS Neo Achro 140mm
- Product category: Refractors Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Refractors
|
User manual for the Vixen Optics NA140SS Neo Achro 140mm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description Engineered with a large aperture and fast focal ratio for exceptional visual and imaging performance, the Vixen Optics NA140SS Neo Achro 140mm f/6 Refractor Telescope is equipped with a 2-group/4-element achromatic lens that corrects chromatic and spherical aberration to limit color fringing, off-axis comas, halo effects, and distortion for sharper and clearer views with accurate color representation and zero astigmatism. Its rear field-flattener correcting lens produces a flat and even field of view for improved astrophotography images. To achieve tack-sharp images and split binary stars, Vixen outfitted the NA140SS with a fine and coarse dual speed focuser.For viewing or imaging, a versatile diagonal is provided. The diagonal has two eyepiece holders with an internal flip mirror to quickly and easily change the light path direction from the straight-through to the 90° position. Each eyepiece holder accepts 1.25" eyepieces to allow the use of different magnification eyepieces without having to change them; and the straight-through holder has threads for imaging system and adapters. When imaging, simply install an eyepiece in the 90° position and flip the mirror to check and correct tracking errors, or change subjects, between exposures - allowing the imaging system to remain on the straight-through position.This iteration of the NA140SS Neo Achro is offered here without a mount or tripod for users who already have a reliable support system. The included cradle ring assembly has a Vixen-style dovetail plate to make it compatible with a wide variety of alt-az, EQ, and GoTo mounts; and a circular clamp system enables it to be placed anywhere along the OTA length for proper balancing, and the orientation of the eyepiece/diagonal can be adjusted to avoid interference with the mount, other equipment, cords, and the mount. - Optical Tube Assembly
-
- Large 140mm aperture
- Fast f/6 focal ratio
- 800mm focal length
- Refractor-style design
- 2-group/4-element achromatic lens design corrects chromatic and spherical aberration to limit color fringing, off-axis comas, halo effects, and distortion - especially at the edges - for sharper and clearer views with accurate color representation and zero astigmatism
- Multi-coated optics maximize light transmission, while improving color accuracy and contrast
- Rear field-flattener correcting lens produces a flat and even field of view for improved astrophotography images
- Resolution: 0.82 arcsec
- Fine and coarse dual-speed focuser, with a 1.25" eyepiece holder and 60mm threads for accessories and imaging
- 7x50mm finderscope with bracket
- Observation and Imaging Diagonal
-
- Dual 1.25" eyepiece holders: One set at 90° and another straight-through
- Internal flip mirror allows easy switch between light paths for the use of two eyepieces or an eyepiece/imaging combination
- Able to perform various astrophotography techniques including eyepiece projection, prime-focus, and afocal imaging
- When imaging, quickly flip mirror to check tracking between exposures without un-mounting imaging rig
- Threads on the straight-through light path enables direct connection of accessories and imaging systems
- Mounting
-
- Optical tube assembly only - mount and tripod required for proper use
- Includes tube ring set with a Vixen-style dovetail plate
- Cradle ring assembly allows the orientation of the scope to be adjusted for a better viewing position; or to avoid interference with gear, equipment, or mount
- OTA weight: 14 pounds
UPC: 811971013780 In the Box Vixen Optics NA140SS Neo Achro 140mm f/6 Refractor Telescope (OTA Only) Flip Mirror Diagonal 7x50mm Finderscope Mount Rings with Dovetail Plate Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics NA140SS Neo Achro 140mm f 6 Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics NA140SS Specs | | | Optical Design | Refractor | | Aperture | 140 mm / 5.6" | | Focal Length | 800 mm | | Focal Ratio | f/5.7 | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | No | | Finderscope | No | | Mounting System | None | | | | Package Weight | 22.5 lb | | Box Dimensions (LxWxH) | 49.0 x 12.0 x 10.5" |
