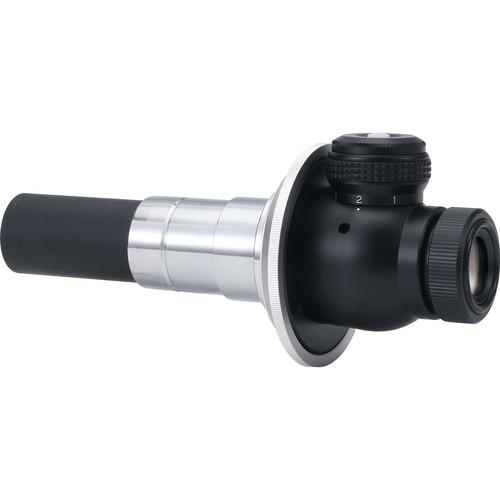

User Manual for Vixen Optics PF-L Polarie Polar Scope Click to enlarge the picture
Contents of the user manual for the Vixen Optics PF-L Polarie Polar Scope
- Product category: Mount Accessories Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Mount Accessories
|
User manual for the Vixen Optics PF-L Polarie Polar Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description Building on the success of the original iteration of their polar scope, Vixen Optics' PF-L Polarie Polar Scope is a simplified iteration to make polar alignment faster and easier. An illuminated star field reticle clearly shows the Northern hemisphere star pattern around the pole; and to polar align your scope, simply lineup the three stars on the reticle with the three corresponding stars in the sky. Vixen eliminated the hour angle and instead utilizes a companion Android or iOS smartphone app for a streamlined experience. Features such as red illumination to preserve night adjusted vision, eight selectable brightness levels, and auto-off after two minutes make this an essential accessory to your compatible Vixen equatorial mount. - Optical Performance
-
- 6x magnification
- 20mm aperture
- 8° field of view
- Installing Accuracy: Within ±3 arc min
- Alignment Reticle
-
- Red illumination preserves night-adjusted vision
- In the northern hemisphere, the polar axis is aligned by placing 3 bright stars in the specified positions
- No need to set the hour angle
- Free companion smartphone app aids in alignment, available for Android and iOS
- Use and Handling
-
- Dioptric adjustment to focus reticle
- Adjustable brightness with 8 selectable levels
- Runs on one included CR2032 battery
- Auto-off helps conserve the battery's charge
In the Box Vixen Optics PF-L Polarie Polar Scope CR2032 Battery Limited One-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics PF-L Polarie Polar Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics 35521 Specs | Magnification | 6x | | Aperture | 20 mm | | Reticle | Illuminated star-field | | Field of View | 8° | | Battery | 1 x CR2032 | | Dimensions | 5.6 x 2.4" / 14.2 x 6.0 mm | | Weight | 7.7 oz / 218.3 g, including battery | | | | Package Weight | 0.69 lb | | Box Dimensions (LxWxH) | 6.3 x 3.6 x 3.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 89 owners. Add your rating and experience with the product.
