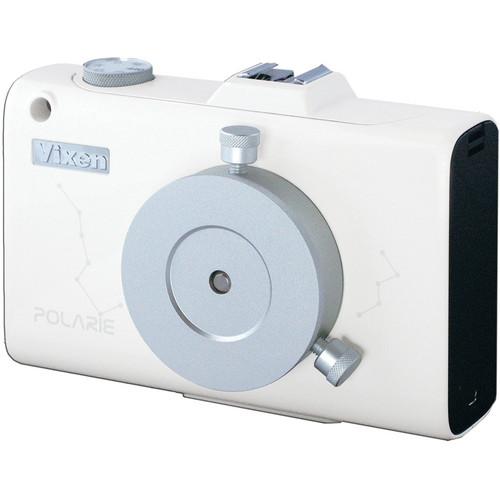

User Manual for Vixen Optics Polarie Star Tracker Click to enlarge the picture
Contents of the user manual for the Vixen Optics Polarie Star Tracker
- Product category: Astrophotography Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Astrophotography
|
User manual for the Vixen Optics Polarie Star Tracker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description The Polarie Star Tracker from Vixen Optics is an incredibly compact, motorized, tracking mount. The smooth and sleek, visually attractive Polarie attaches to a standard camera tripod with a ball head on one side and a DSLR or smaller camera on the other up to 7 pounds. Point the Polarie north with the integrated compass, use the alignment window by pointing it at Polaris, the North Star, or use an optional polar scope. Star trails and false fuzzies are eliminated in the time exposures of the attached camera as the Polarie tracks the motion of the stars across the celestial dome. Two user-supplied AA batteries can power the unit for ~4 hours or an optional external power supply (not included) can be used. Although, not waterproof, the Polarie is designed to function in most weather conditions. It weighs in at less than an incredible 1½ lbs and is about the size of a paperback book. This is one cool astrophotography star tracker. - Can support equipment weighing up to 7 lb (3.2kg)
- Usable in both Northern and Southern hemispheres
- Lightweight, compact with ~4 hours of tracking on 2 AA batteries (not included)
- Simple polar alignment options allow camera movement in sync with the night sky
- Tracking modes; Celestial tracking rate, 1/2 of the celestial tracking rate, Solar tracking rate (mean solar time) or Lunar tracking rate (mean lunar time)
- The stepping pulse motor of the Polarie has an exceptionally precise movement utilizing a wheel gear of 57.6mm diameter aluminum alloy axis with a full-circle of 144-teeth. The worm gear has a 9mm diameter made from high tension brass and has 2-piece bearings.
UPC: 811971015715 In the Box Vixen Optics Polarie Star Tracker Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics Polarie Star Tracker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics Polarie Specs | Payload Capacity | 7 lb (3.2 kg) | | Power Source | 2 x AA batteries：DC2.4～3.0 V
Optional external power supply：DC4.4～5.25 V | | Runtime | ~4 hours at 68°F/20°C with a 3.3 lb / 1.5 kg load using alkaline batteries | | Dimensions | 5.4 x 3.7 x 2.3" / 137 x 95 x 58 mm | | Weight | 22.4 oz / 635.0 g without batteries | | | | Package Weight | 2.145 lb | | Box Dimensions (LxWxH) | 8.9 x 6.55 x 2.85" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 15 owners. Add your rating and experience with the product.
