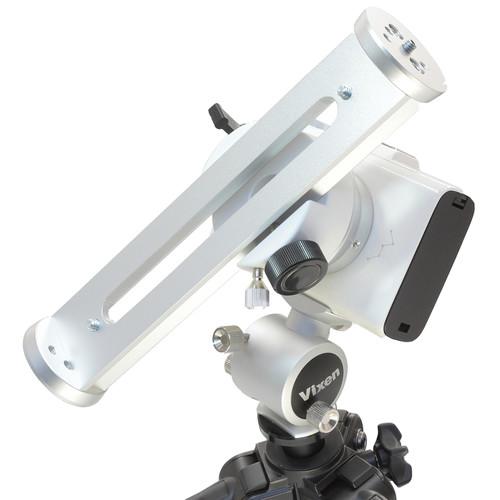

Vixen Optics Polarie Step-Up Kit

User Manual for Vixen Optics Polarie Step-Up Kit

• Product category: Astrophotography Vixen Optics
• Brand: Vixen Optics
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Vixen Optics Astrophotography

Product description

• Polar Fine Adjustment Unit Purpose-built for the Polarie Star Tracker system, Vixen Optics' Polar Fine Adjustment Unit allows you to precisely align your Polarie for better tracking and sharper imaging. This unit mounts on any 1/4"-20 or 3/8"-16 tripod head, and the Polarie mounts onto the included 1/4"-20 quick release plate on top of it. With the unit in-place, you are able to make minute adjustments to the orientation of the Polarie's polar alignment, with one rotation of the thumb screws moving it 5.7 degrees and a total adjustment range of ±15 degrees. The Polar Fine Adjustment Unit has a payload capacity of 15.4 pounds, so it can easily handle the Polarie plus larger DSLR and lens systems.
• Polarie Multi Mounting Block The Vixen Optics Polarie Multi Mounting Block replaces the stock camera mounting block that shipped with your tracking unit to allow the use of Vixen-style dovetail bars and plates to increase its usability. When used with the optional Dovetail Slide Bar, Counterweight and bar, and a photo head a counterweight system is created that effectively doubles the payload capacity to about 14 pounds. The design of the mounting block permits the permanent installation of the optional PFL Polar Scope to make it easier to align the Polarie tracker during set up.
• Polarie Dovetail Slide Bar DD Designed to properly balance heavy loads like large-format DSLR bodies with long telephoto lenses or OTAs on their Polarie tracking head, the Vixen Optics Polarie Dovetail Slide Bar DD fits onto their optional Multi Mounting Block saddle. Your gear fits on one end using your own camera head or the optional Quick Release Panorama Clamp, while the opposite side accepts the optional counterweight bar for proper balancing. To aid in precise balancing, the bar can be positioned anywhere in the saddle by simply loosening the dovetail clamps and sliding the bar as required. To conserve weight without sacrificing strength, the bar is made of a lightweight and strong aluminum alloy. Only the bar is offered here, all other accessories need to be obtained separately, including the primary Polarie tracking head, and all the optional gear attaches to the bar via 1/4"-20 mounts.
• PF-L Polarie Polar Scope Building on the success of the original iteration of their polar scope, Vixen Optics' PF-L Polarie Polar Scope is a simplified iteration to make polar alignment faster and easier. An illuminated star field reticle clearly shows the Northern hemisphere star pattern around the pole; and to polar align your scope, simply lineup the three stars on the reticle with the three corresponding stars in the sky. Vixen eliminated the hour angle and instead utilizes a companion Android or iOS smartphone app for a streamlined experience. Features such as red illumination to preserve night adjusted vision, eight selectable brightness levels, and auto-off after two minutes make this an essential accessory to your compatible Vixen equatorial mount.
  Optical Performance
  • • 6x magnification
    • 20mm aperture
    • 8° field of view
    • Installing Accuracy: Within ±3 arc min
  Alignment Reticle
  • • Red illumination preserves night-adjusted vision
    • In the northern hemisphere, the polar axis is aligned by placing 3 bright stars in the specified positions
    • No need to set the hour angle
    • Free companion smartphone app aids in alignment, available for Android and iOS
  Use and Handling
  • • Dioptric adjustment to focus reticle
    • Adjustable brightness with 8 selectable levels
    • Runs on one included CR2032 battery
    • Auto-off helps conserve the battery's charge

• Adapter Wrench

• 3/8"-16 Tripod Adapter

• Limited Five-Year Warranty

• Limited 5-Year Warranty

• Limited 5-Year Warranty

• CR2032 Battery

• Limited One-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Polar Fine Adjustment Unit

  Box Dimensions (LxWxH)	5.4 x 4.05 x 3.55"

• Polarie Multi Mounting Block

  Box Dimensions (LxWxH)	6.3 x 3.6 x 3.5"

• Polarie Dovetail Slide Bar DD

  Box Dimensions (LxWxH)	11.2 x 2.5 x 2.5"

• PF-L Polarie Polar Scope

  Magnification	6x
  Aperture	20 mm
  Reticle	Illuminated star-field
  Field of View	8°
  Battery	1 x CR2032
  Dimensions	5.6 x 2.4" / 14.2 x 6.0 mm
  Weight	7.7 oz / 218.3 g, including battery

  Box Dimensions (LxWxH)	6.3 x 3.6 x 3.5"
