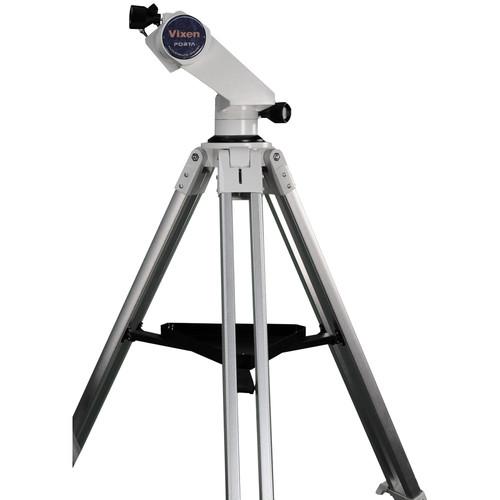

User Manual for Vixen Optics Porta II Tall Alt-Azimuth Mount Click to enlarge the picture
Contents of the user manual for the Vixen Optics Porta II Tall Alt-Azimuth
- Product category: Mounts Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Mounts
|
User manual for the Vixen Optics Porta II Tall Alt-Azimuth contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description Vixen Optics redesigned their tripod for this version of the Porta II Tall Alt-Azimuth Mount to give it a higher 67" maximum height for use with refractor-style optical tube assemblies (OTAs) or for taller people who don't want to hunch, while maintaining the sturdy and stable alt-azimuth head that is easy to set up, use, and transport. With its standard Vixen dovetail plate and 20 lb payload capacity, you can attach Vixen and many non-Vixen OTAs or bring multiple OTAs for a viewing session and simply and quickly swap them to suit the subject. This most basic of mounts is ideally suited for quick astronomical or terrestrial viewing. Two control knobs, one for each axis, allow users to make small and precise adjustments for tracking subjects. Its two 120-tooth worm gears let the altitude and azimuth travel a full 360° circle.The Porta II operates without locks and clutches, but rather with a friction system. This means you can simply move the mount by hand to quickly find your subject, then use the slow-motion knobs to track. Since many different OTAs can be mounted, there are adjustment screws on each axis to add more or less tension, based on the weight of the OTA. Also, depending on the design of the OTA, you can change the orientation of the flexible handle position to be correctly oriented for comfortable use.An aluminum two-section tripod comes with the mount. It has a height-adjustment range from 40 to 51 inches. A solid center bolt lets the mount also turn a full circle and makes the mount easily detachable from the tripod to mount on heavier tripods. In the Box Vixen Optics Porta II Tall Alt-Azimuth Mount Tripod Accessory Tray Allen Wrench Tool Set 2 x Flexible Tracking Handles Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics Porta II Tall Alt-Azimuth Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics 5863TALL Specs | Mount Type | Alt-azimuth | | Load Capacity | 20 lb (9 kg) | | Height | 40-67" / 102-170 cm | | Altitude / Latitude Adjustment | 120-tooth, 360°-movement wheel gears | | Includes Tripod/Pier | Aluminum 2-section adjustable tripod | | Weight | 15 lb (6.8 kg), including tripod | | | | Package Weight | 20.5 lb | | Box Dimensions (LxWxH) | 45.5 x 17.5 x 10.5" |
