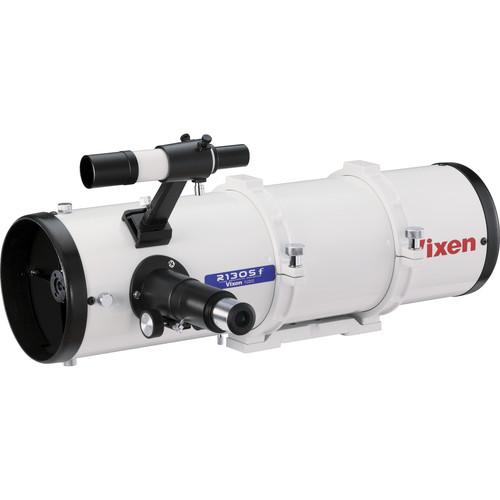

User Manual for Vixen Optics R130SF 130mm f 5 Reflector Telescope Click to enlarge the picture
Contents of the user manual for the Vixen Optics R130SF 130mm f 5
- Product category: Reflectors Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Reflectors
|
User manual for the Vixen Optics R130SF 130mm f 5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description Vixen Optics' R130SF 130mm f/5 Reflector Telescope is an ideal starter scope or easy grab-and-go option for more experienced observers. Its 130mm (5.1") aperture is large enough to do some serious deep sky, star cluster, and nebula observing or to take in the details on the planets, planetary moons, and lunar surface within our solar system. A sturdy 1.25" rack-and-pinion focuser accepts any astronomical eyepieces, and for those who want to do astrophotography, the focuser drawtube has 42mm threads to directly attach a photo T-ring for a DLSR camera body. The R130SF comes with a 6x30 finderscope, a pair of eyepieces to give users a versatile range of magnifications, tube rings, and a Vixen-style dovetail plate. - OTA
-
- Aperture: 5" (130mm)
- Fast f/5 focal ratio
- 650mm focal length
- Multi-coated optics maximize light transmission for brighter images
- 0.89 arcsec resolution
- 1.25" rack-and-pinion focuser
- 42mm adapter thread for astrophotography with optional DSLR camera T-ring
- Included Accessories
-
- Eyepieces:
- 1.25" diameter barrel
- 20mm produces 32.5x magnification
- 6.3mm produces 103x magnification
- Compatible with most 1.25" eyepiece filters
- Finderscope:
- 6x magnification
- 30mm objective
- Angle of view: 7°
- Mounting rings with integrated Vixen-style dovetail plate
UPC: 811971010031 In the Box Vixen Optics R130SF 130mm f/5 Reflector Telescope (OTA Only) 20mm Eyepiece 6.3mm Eyepiece 6x30 Finderscope Mounting Rings with Dovetail Plate Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics R130SF 130mm f 5 Reflector Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics R130Sf Specs Optical Design | Newtonian reflector | Aperture | 5.1" / 130 mm | Focal Length | 650mm | Focal Ratio | f/5.0 | Eyepiece Barrel Diameter | 1.7" (42mm) | Diagonal | None | Finderscope | 6x30 7.0° Straight | Tripod | None | Mount Type | Vixen-style dovetail plate | Power Source | None | Optical Tube Dimensions | 6.3 x 22.5" / 16.0 x 57.2 cm | Weight | 8.8 lb / 4.0 kg | | Package Weight | 12.95 lb | Box Dimensions (LxWxH) | 27.0 x 13.3 x 11.1" |
