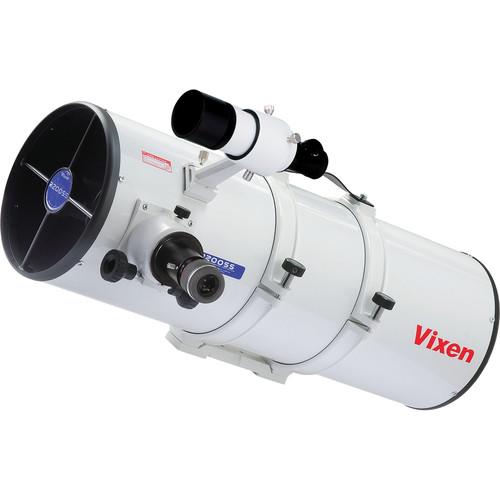

User Manual for Vixen Optics R200SS 200mm f 4 Reflector Telescope Click to enlarge the picture
Contents of the user manual for the Vixen Optics R200SS 200mm f 4
- Product category: Reflectors Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Reflectors
|
User manual for the Vixen Optics R200SS 200mm f 4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description Vixen Optics' R200SS 200mm f/4 Reflector Telescope is built with a chromatic aberration-free large-aperture Newtonian reflector design with the capability of resolving and splitting distant binary stars and separating individual stars in clusters. Its large aperture and moderate focal length, results in a fast f/4 focal ratio which makes this an ideal scope for observing and imaging the moon, planets, and deep-sky objects like galaxies, clusters, and nebulae. The R200SS is offered here without a tripod or mount head for those who already have a reliable rig and are looking to upgrade or add to their observation capabilities. - Optical Performance
-
- Aperture: 200mm (8.0")
- f/4 focal ratio
- 800mm focal length
- Newtonian reflector optical path
- Anti-reflection multi-coated optics increase light transmission and overall image contrast
- Resolution: 0.63 arcsec, Rayleigh
- Rack-and-pinion focuser resists flexing or bending under heavy weights
- 60mm and 42mm for T-ring mount threads for prime-focus astrophotography
- 1.25" visual back allows for observations using the most common-sized eyepieces and accessories
- Mounting
-
- Optical tube assembly (OTA) only — mount and tripod required for proper use
- Vixen-style dovetail plate is compatible with a wide array of alt-az, EQ, and GoTo mounts
- Cradle-ring assembly allows the position of the OTA and focuser orientation to be adjusted for precise balancing, comfortable use, and to avoid interference with other gear or equipment
- Integrated carry handle helps to ensure sure handling during setup and breakdown
- Weight: 12 pounds
- Finderscope
-
- 7x magnification ensures a wide field of view for alignment and star-hopping navigation
- Large 50mm aperture
- Illuminated crosshair reticle ensures objects are properly centered
- Adjustable intensity
UPC: 811971010147 In the Box Vixen Optics R200SS 200mm f/4 Reflector Telescope (OTA Only) 7x50 Illuminated Finderscope Cradle-Ring Assembly Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics R200SS 200mm f 4 Reflector Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics R200SS Specs | | | Optical Design | Newtonian Reflector | | Aperture | 203 mm / 8" | | Focal Length | 800 mm | | Focal Ratio | f/4 | | Eyepiece Barrel Diameter | 1.25" | | Finderscope | Yes | | Mounting System | Vixen Style | | Optical Tube Dimensions | 27.6 x 9.1" / 70 x 23.2 cm | | | | Batteries | None | | Weight | 11.7 lb / 5.3 kg (OTA) | | | | Package Weight | 23.95 lb | | Box Dimensions (LxWxH) | 33.0 x 15.5 x 13.5" |
