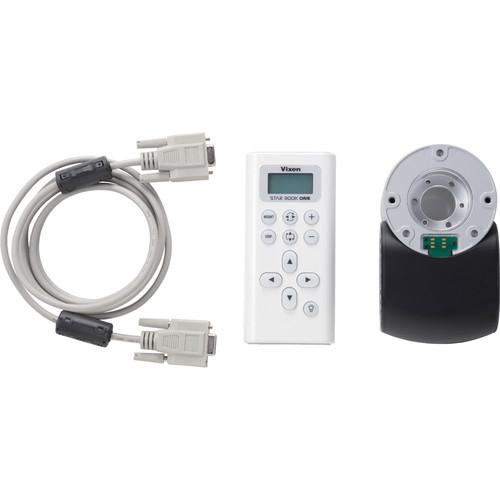

User Manual for Vixen Optics Right Ascension Motor with Star Book One for Advanced Polaris Mount Click to enlarge the picture
Contents of the user manual for the Vixen Optics Right Ascension Motor with
- Product category: Mount Accessories Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Mount Accessories
|
User manual for the Vixen Optics Right Ascension Motor with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description Vixen Optics put this Right Ascension Motor with Star Book One set together for their Advance Polaris Mount. It consists of a Right Ascension (RA) motor for tracking heavenly bodies as they move across the night sky and a hand controller to manually find celestial objects and automatically track them.The low-vibration 360° micro-pulse motor is specifically built to fit seamlessly onto the AP mount and gets its power from the mount centralized power system. It features a 140-tooth worm wheel with a brass shaft and an aluminum alloy rotation axis. Vixen's Star Book One (SB1) is a basic controller and gives you control of the motor. It automatically detects the mount it is plugged into and adjusts its capabilities accordingly. This means that if you install the optional Declination motor, the SB1 will detect it and give you control of it. The controller has both backlash compensation to minimize or eliminate the play between the teeth in the worm wheel for smoother tracking, and Periodic Error Correction (PEC) so you can program out inherent errors in tracking so objects will remain centered in your field of view during long observation sessions or long-exposure astrophotography. To track near and deep space objects, the SB1 has four speeds: sidereal, Kings Rate, lunar, and solar. To make the AP mount more versatile, the SB1 can work in either the Northern or Southern hemispheres. In the Box Vixen Optics Right Ascension Motor with Star Book One for Advanced Polaris Mount Right Ascension Motor Star Book One Controller Star Book One Serial Cable Limited One-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics Right Ascension Motor with Star Book One for Advanced Polaris Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics 25804 Specs | Motor Type | Pulse motor | | Worm Wheel | 140 tooth, 73.5 mm diameter
11 mm brass shaft | | Power Requirement | 4.4 - 5.26 VDC, supplied by mount via micro-USB port | | Dimensions | 5.4 x 3.1 x 2.0" / 13.7 x 8.0 x 5.2 cm | | Weight | 22.2 oz / 630 g |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
