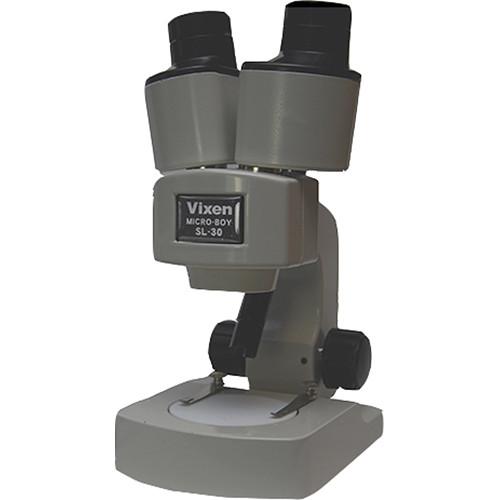

User Manual for Vixen Optics SL-30 Micro Boy Stereo Cordless Microscope Click to enlarge the picture
Contents of the user manual for the Vixen Optics SL-30 Micro Boy Stereo
- Product category: Microscopes Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Microscopes
|
User manual for the Vixen Optics SL-30 Micro Boy Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description The SL-30 Micro Boy Stereo Cordless Microscope from Vixen Optics provides everything that is needed for a beginning explorer. This metal frame microscope features a 30x total magnification that is ideal for studying minerals, insects, plants, and collectibles like coins and stamps. With a working distance of 2" and travel of 1.6", there is enough room to work with a variety of samples. In addition to the included mineral set, you will be able to easily secure optional slides with samples using two metal clips attached to the circular base-plate stage. The coarse focusing with rack and pinion offers two large knobs ease of use. To illuminate samples and specimens, this microscope also has a detachable LED penlight. - Optical System and Viewing
-
- Stereo viewing provides 3-d imaging
- 30x magnification
- 2" working distance
- 1.6" travel
- 0.25 field of view
- Focusing and Illumination
-
- Coaxial coarse focusing
- Rack and pinion system
- Side LED penlight illuminator
- Use and Handling
-
- Interpupillary adjustment
- Diopter ring
- Construction Details
-
- Metal frame
- Round base-plate stage with two metal clips
- Rubberized eyecups
In the Box Vixen Optics SL-30 Micro Boy Stereo Cordless Microscope - Mineral Set
- Limited 5-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics SL-30 Micro Boy Stereo Cordless Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics SL-30 Specs | Microscope Type | Compound | | Eyepiece | Fixed | | Nosepiece | Fixed | | Objective(s) | Fixed | | Magnification | 30x | | Field of View | 0.25" (6.5 mm) | | Head | 90° | | Focuser | Coarse, rack and pinion | | Diopter Adjustment | Yes | | Light Source | LED projecting pen | | Specimen Stage | Circular base plate | | Overall Dimensions | 7.7 x 4.8 x 3.3" (19.5 x 12.2 x 8.5 cm) | | Weight | 1.9 lb (860 g) |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
