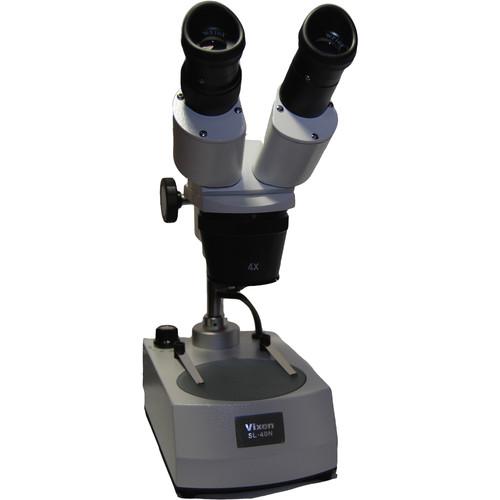

User Manual for Vixen Optics SL-40N Stereo Microscope Click to enlarge the picture
Contents of the user manual for the Vixen Optics SL-40N Stereo Microscope
- Product category: Microscopes Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Microscopes
|
User manual for the Vixen Optics SL-40N Stereo Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description With 45° viewing, the SL-40N Stereo Microscope from Vixen Optics provides a useful tool for your lab or home. While the stereo configuration provide a good sense of dimension and a 3-d viewing experience, the total magnification of 20x and 40x is ideal for studying minerals, insects, plants, circuit boards, and collectibles like coins and stamps. For adequate detail visibility, the scope has side and bottom LED illumination. With a working distance of 1.8" you will have enough room to work with a variety of samples. You can easily secure your slides with samples using two metal clips attached to the 3.7" round base plate. The coarse coaxial focusing offers two large knobs and rack and pinion mechanism. To illuminate samples and specimens, this microscope offers a bottom and side LED illumination. For accommodating individual differences, the eyepieces offer interpupillary adjustment of 2-3" and are outfitted with comfortable rubber eyecups. Also included is a hard aluminum case with a handle and locks for a secure storage and transportation. It is padded with foam inside to protect the microscope while you are on the road. - Optical System and Viewing
-
- Stereo viewing provides 3-d viewing
- 2x and 4x objectives
- 10x eyepieces
- 20x and 40x magnification
- 1.8" working distance
- 1.7" travel
- Focusing and Illumination
-
- Coaxial coarse focusing
- Rack and pinion system
- Side and bottom LED illumination
- Use and Handling
-
- 51-75mm interpupillary adjustment
- Diopter ring
- Construction Details
-
- Metal frame
- 3.7" round base plate with two metal clips
- Rubberized eyecups
In the Box Vixen Optics SL-40N Stereo Microscope - Hard Case
- 2 x Rubber Eyecups
- Limited 5-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics SL-40N Stereo Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics SL-40N Specs | Microscope Type | Compound | | Eyepiece | 10x | | Nosepiece | Fixed | | Objective(s) | 2x, 4x | | Head | 45° | | Focuser | Coarse, rack and pinion | | Working Distance | 1.8" (46 mm) | | Diopter Adjustment | Yes | | Interpupillary Adjustment | 2-3" (51-75 mm) | | Light Source | Side and bottom LED illumination | | Specimen Stage | 3.7" (95 mm), round base plate | | Overall Dimensions | 13 x 7.6 x 4.6" (33 x 19.2 x 11.6 cm) | | Weight | 5.3 lb (2.4 kg) |
