User Manual for Vixen Optics Space Eye 700 Mars Viewer 70mm f 10 Alt-Az Refractor Telescope Click to enlarge the picture
Contents of the user manual for the Vixen Optics Space Eye 700 Mars
- Product category: Refractors Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Refractors
 |
User manual for the Vixen Optics Space Eye 700 Mars contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|

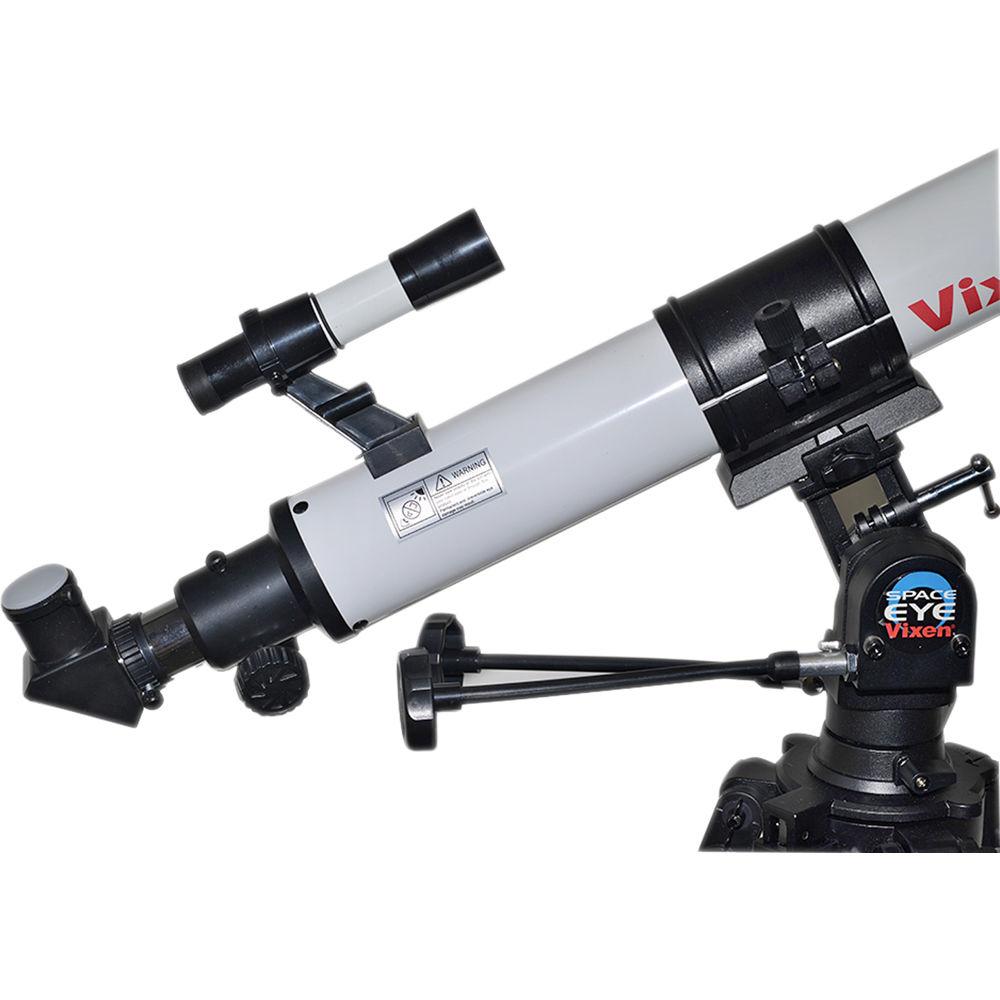

Product description The Space Eye 700 Mars Viewer 70mm f/10 Alt-Az Refractor Telescope from Vixen Optics is intended to introduce viewers to astronomy by giving them a complete setup for viewing the Moon, planets, and meteor showers. Its manual alt-azimuth mount has an altitude lock to help track objects and reduce vibrations. Two eyepieces provide 35x and 117x magnifications for wide field low-power observation with the ability to make detailed observations of features such as lunar craters.An adjustable-height aluminum tripod provides a stable observational platform, and the included 90° erect-image diagonal makes looking through the scope more comfortable, especially when aiming the telescope toward the zenith. The diagonal's prism corrects images horizontally and vertically, allowing the scope to be used for terrestrial viewing as well. An integrated dew-shield helps to prevent condensation on the outside of the objective lens, while blocking stray peripheral light from interfering with celestial observations. - Performance
-
- 70mm aperture is ideal for viewing the moon and planets; as well as birds, boats, and other terrestrial objects
- Moderate f/10 focal ratio allows for shorter exposure times if used for astrophotography or digiscoping
- Long 700mm focal length provides a moderate to high magnification potential
- Refractor-style optical path produces clear views with accurate color representation
- Anti-reflection coated optics improve light transmission for brighter and sharper views
- Reliable 1.25" rack-and-pinion focuser allows the use of easy-to-find eyepieces and accessories
- Mount and Tripod
-
Mount:- Manual alt-az design
- Altitude lock sets scope position for easier viewing of terrestrial objects such as boats, cars, and wildlife
- Dual-axis slow motion cable enables precision tracking with reduced vibration
Tripod:- Lightweight aluminum for easier transport and set up
- Adjustable height from 27.5-50" accommodates a wide variety of users and viewing positions
- Two-section legs with thumbscrew locks

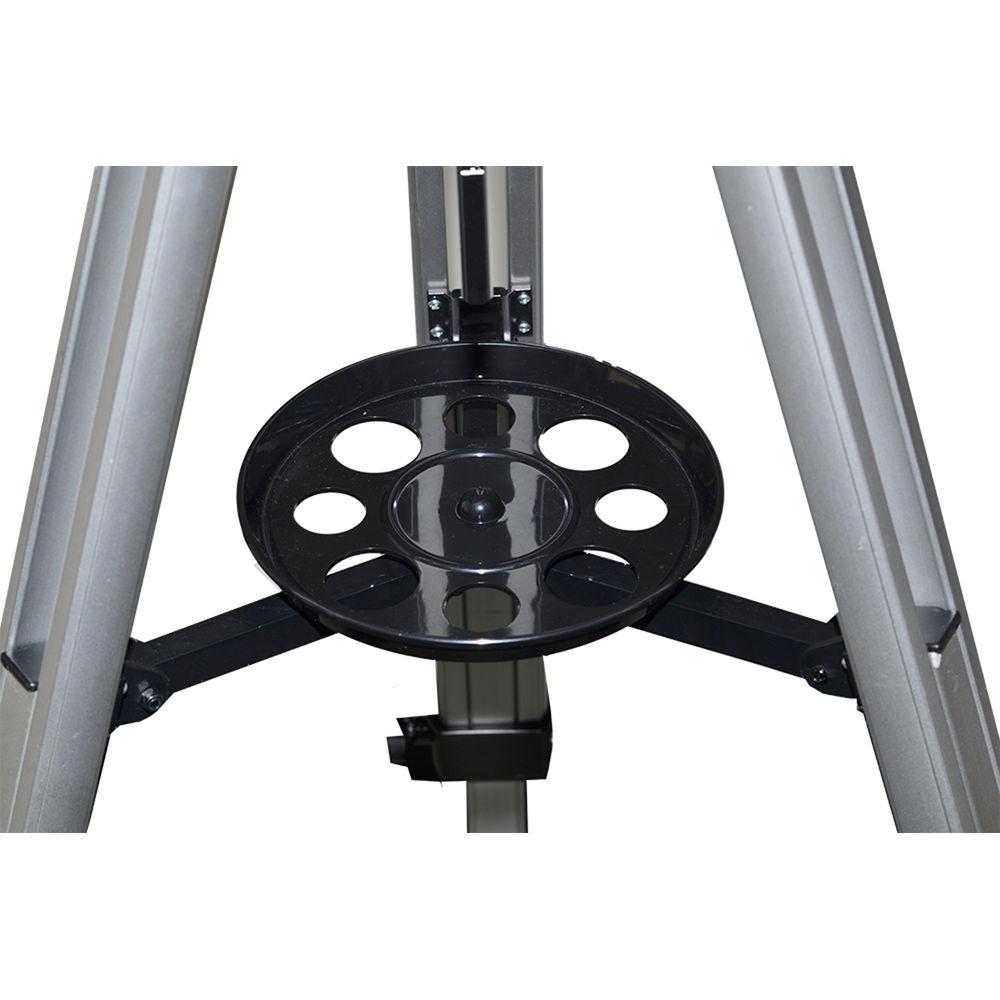

- Accessory tray with eyepiece holders
- Spiked feet for improved stability on rough or loose ground
- Included Accessories
-
- 6mm eyepiece yields 117x magnification
- 20mm eyepiece yields 35x magnification
- 90° erect-image diagonal puts head in a comfortable viewing position while correcting the image horizontally and vertically for terrestrial use
- 6x24 finderscope provides a wide 7° field of view for easier alignment and star-hopping navigation
In the Box Vixen Optics Space Eye 700 Mars Viewer 70mm f/10 Alt-Az Refractor Telescope 90° Erect-Image Diagonal 6x24 Finderscope with Bracket 6mm Eyepiece 20mm Eyepiece 2 x Slow Motion Cables Aluminum Tripod with Tray Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics Space Eye 700 Mars Viewer 70mm f 10 Alt-Az Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics Space Eye 700 Specs | Optical Design | Refractor | | Aperture | 70mm | | Focal Length | 700mm | | Focal Ratio | f/10 | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | 90° erect-image | | Finderscope | 6 x 24 | | Tripod | Two-section aluminum
Adjustable Height: 27.5 - 50.0" / 69.9 - 127.0 cm | | Mount Type | Manual alt-az with dual axis slow motion control | | Power Source | None | | Optical Tube Dimensions | Not specified by manufacturer | | Weight | 9.0 lb / 4.1 kg | | | | Package Weight | 15.65 lb | | Box Dimensions (LxWxH) | 38.0 x 15.0 x 8.5" |
