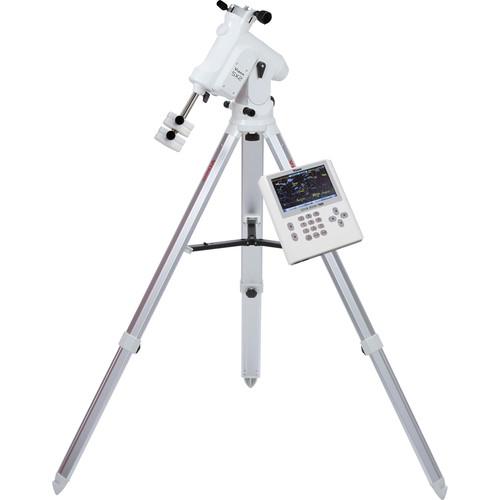

User Manual for Vixen Optics Sphinx SX2 Equatorial Mount with Star Book Ten Click to enlarge the picture
Contents of the user manual for the Vixen Optics Sphinx SX2 Equatorial Mount
- Product category: Mounts Vixen Optics
- Brand: Vixen Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vixen Optics Mounts
|
User manual for the Vixen Optics Sphinx SX2 Equatorial Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vixen Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vixen Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vixen Optics product will considerably shorten its lifespan!
|
Product description Made for long observation sessions, Vixen's Sphinx SX2 Equatorial Mount features precision motors and gears for accurate long-duration tracking. Dual stepper motors provide smooth and virtually vibration-free tracking that runs at up to 250 pps. Its full-circle brass wheel gear allows the mount to track over extremely long periods with little error. The RA and dec motors are situated inside the mount to reduce interference and act as counterbalance for smaller scopes, eliminating the need for the counterweights and shaft. When not in use, the counterweight shaft retracts into the mount and out of the way.The Sphinx comes with the Star Book Ten (SB10) computerized hand controller that is loaded with a database of 272,342 celestial objects such as the Moon, Sun, and planets, plus astronomical catalogs including SAO, NGC, and Messier. The SB10 has a 5" 800x400 resolution LED backlit TFT LCD screen that displays star charts, maps, as well as menu options. To aid setup, there is a built-in 6x20 polar alignment scope that is set inside the mount. It has an 8° wide-angle field of view and an illuminated reticle. The Polaris guide scale, for use in the Northern Hemisphere, is accurate through the year 2025. An Octant 4-star pattern is also set on the reticle for use in the Southern Hemisphere.
The Sphinx is offered here without an optical tube assembly, tripod, or pier. - Mount
-
- Motorized equatorial mount with hand controller
- 27 lb payload capacity, excluding counterweights
- Precise azimuth adjustment indicators
- Integrated counterweight shaft retracts into mount when not in use
- Includes one 4.2 lb counterweight
- Vixen-style dovetail saddle
- Gears and Motors
-
- Two stepping (pulse) motors at 250 pulses per second
- 180-tooth full circle micro-movement wheel gear
- 40mm aluminum-alloy die-cast right ascension axis
- 35mm aluminum-alloy declination axis
- ±7° azimuth adjustment, twin tangent screws/knobs with about 1.2°/rotation
- 0-70° altitude adjustment, three altitude zone settings, 2° increment altitude scale, twin T-bar handles with 0.8°/rotation
- Star Book Ten
-
- Powered by mount through connector port, button battery included to keep internal clock running
- 5" TFT LCD display with LED backlight
- 800x480 WVGA resolution
- Red backlit keypad
- Independent screen and keypad dimming control
- ST-4-compatible integrated autoguider port
- "GoTo" slewing with up to 1000x sidereal rate
- 272,342 celestial object database: SAO: 258,997, NGC objects: 7840, IC objects: 5386, Messier objects: 109, 7 planets, 1 quasi-planet, Moon, and Sun
- Programmable user-defined objects
- Automatic and manual GoTo Slewing
- Sidereal tracking with different tracking speeds for the Sun, the Moon, planets, comets, and artificial satellites including the International Space Station
- Backlash compensation
- Periodic Error Correction (PEC) removes inaccuracies inherent in gears and allows for more accurate tracking, especially for long-exposure astrophotography
- Adjustable screen brightness
- Hibernate mode
- Built-in speaker
- Software updates using LAN connection
- Compatible with Windows SP, Vista, 7, 8, & 8 Pro
- Not compatible with Mac, Linux, and Unix operating systems
- 6.7x6.1x1.2" weighing 13.4 oz
In the Box Vixen Optics Sphinx SX2 Equatorial Mount with Star Book Ten Star Book Ten Hand Controller Star Book Cable 4.2 lb Counterweight Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vixen Optics Sphinx SX2 Equatorial Mount with Star Book Ten in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVixen Optics 25071SB10 Specs | Mount Type | German Equatorial | | Load Capacity | 27 lb (12.2 kg) | | Gears | RA: 180-tooth full circle micro-movement gear wheel
Dec: 180-tooth full circle micro-movement gear wheel | | Right Ascension Axis | 40 mm diameter, die-cast aluminum-alloy | | Declination Axis | 35 mm diameter, aluminum-alloy | | Motor | 2 x Stepping (pulse) motors with 250 PPS | | GoTo Capability | No | | Altitude / Azimuth Adjustment | Alt: 0 to 70°
Az: ±7° | | Polar Axis Scope | No | | Includes Tripod/Pier | No | | Counterweights | 1 x 4.2 lb (1.9 kg) | | Power Requirement | 12 VDC | | Dimensions | 13.5 x 14.2 x 5.0" (34.3 x 36.0 x 12.8 cm) | | Weight | 15.5 lb (7.0 kg), excluding counterweights |
